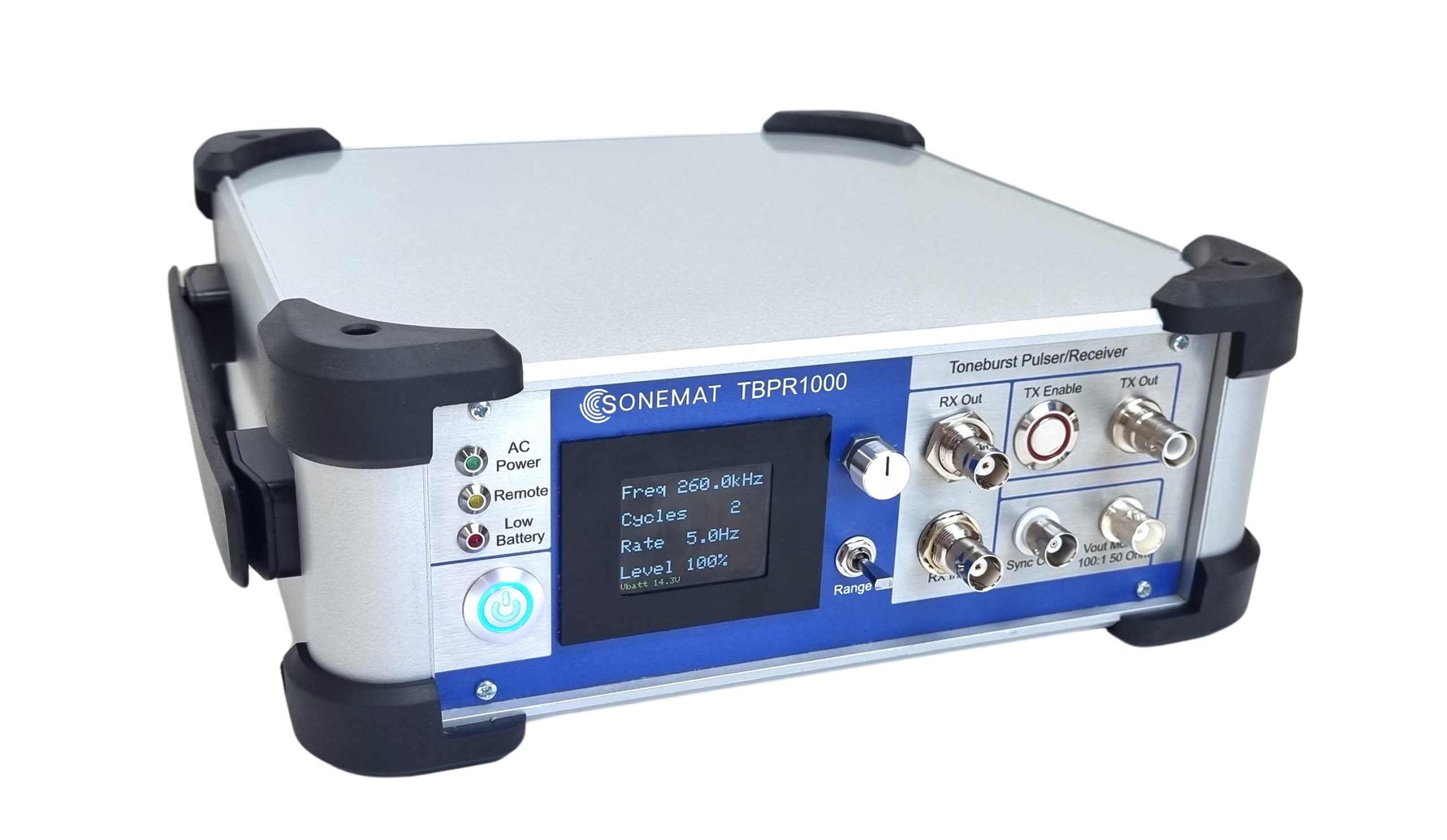

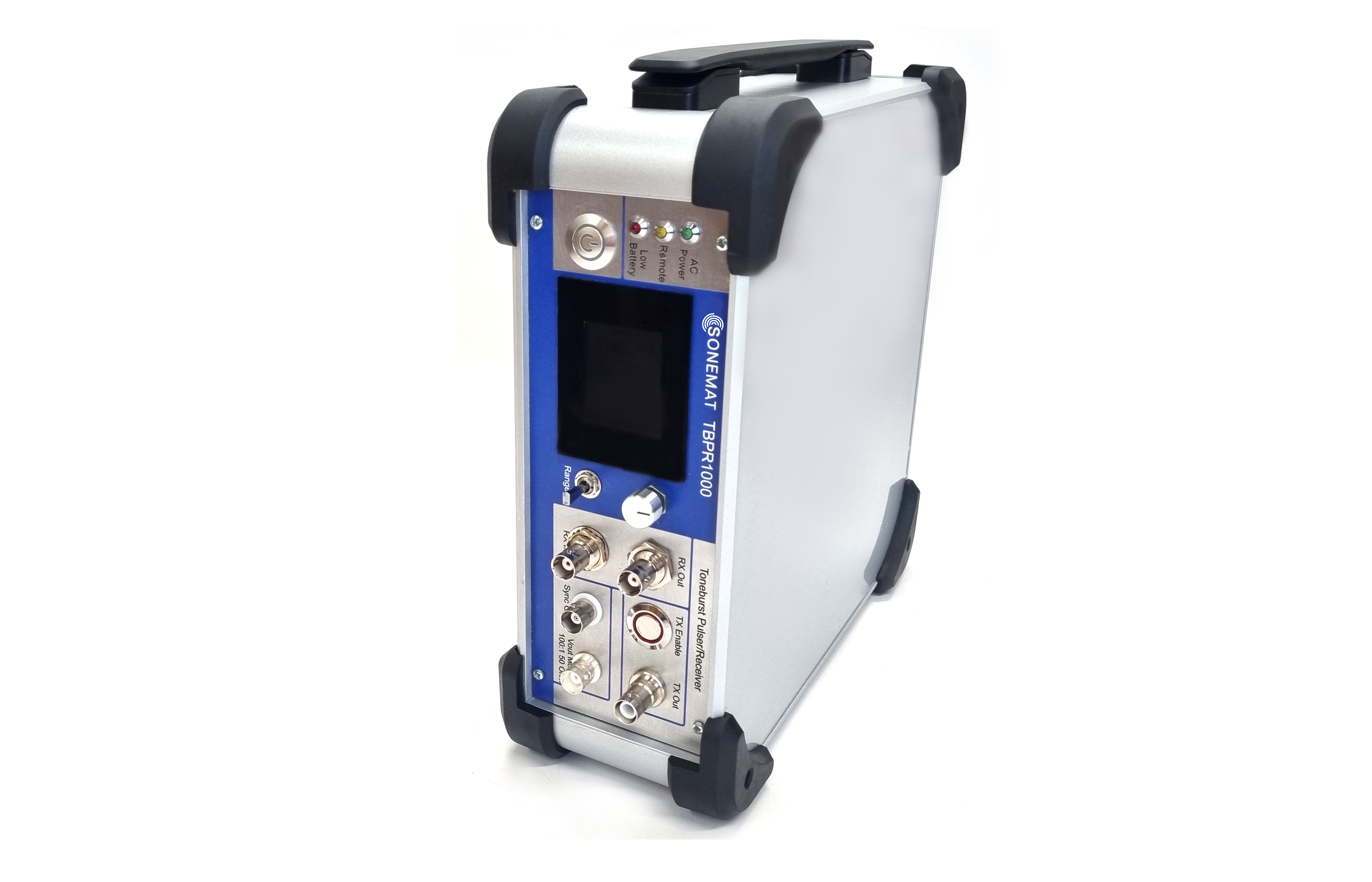

Toneburst Pulser-Receiver TBPR1000
£15000
Key Advantages and Features:
-
- Wide Frequency Range: Operating between 20 kHz and 1 MHz, the TBPR1000 is adaptable to numerous EMAT applications, supporting guided wave modes like Lamb, Rayleigh, and Shear Horizontal (SH) waves.
- High-Performance Amplification and Control: With an 80 dB receiver gain and internal trigger source, the system ensures robust signal detection and minimal setup time.
- Semi-Automated Data Acquisition: Seamless control through Sonemat’s software provides semi-automated data collection and analysis, reducing the time and labour needed for each inspection.
- Battery or Mains Operation: The rechargeable battery pack and mains power compatibility offer flexibility for both fieldwork and in-facility testing.
- Applications in Challenging Environments: Designed to meet the needs of varied industries, the TBPR1000 can be employed for corrosion and weld defect monitoring, surface and thickness inspection, and hidden structural analysis.
Applications:
-

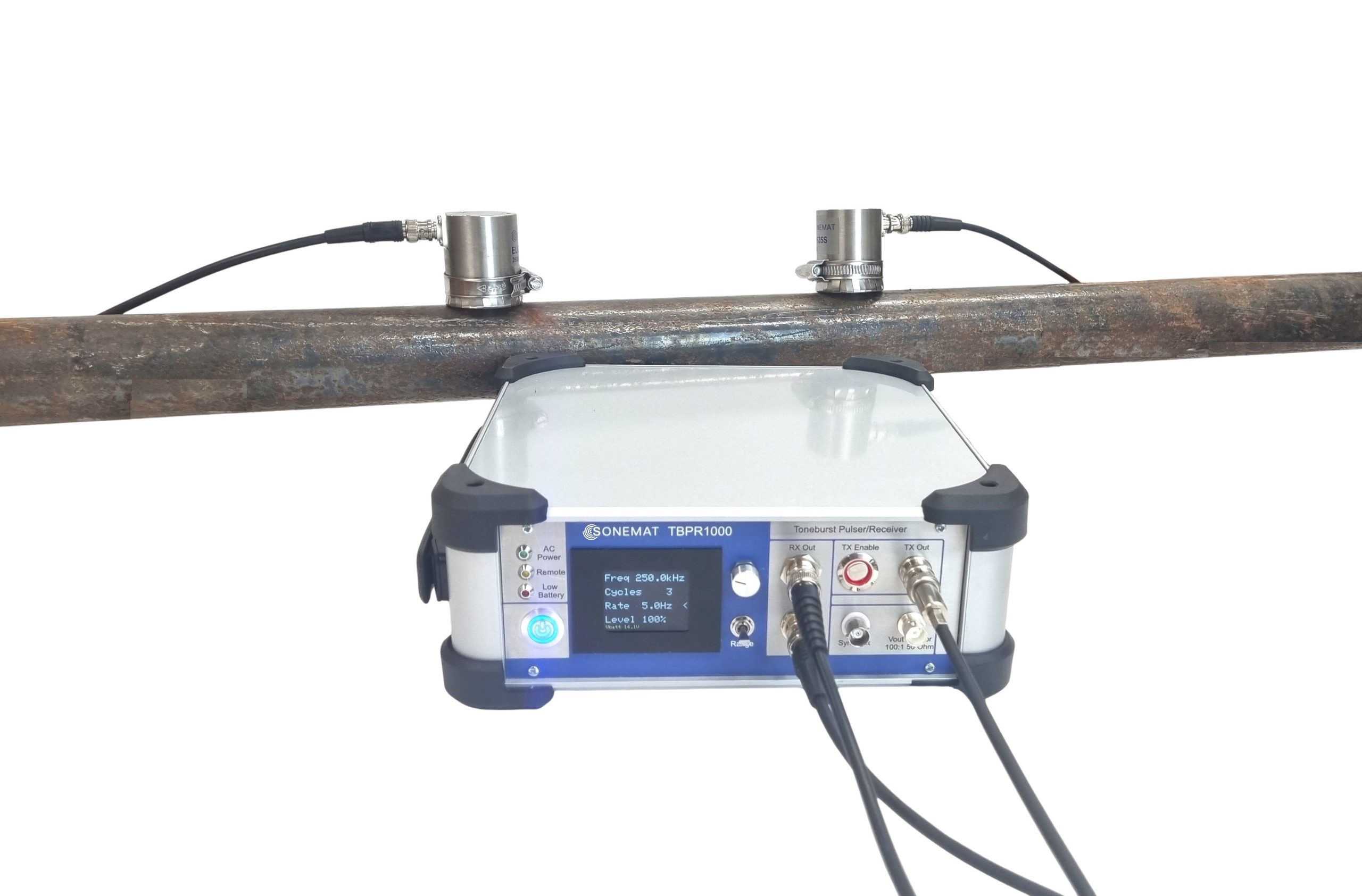

- Corrosion monitoring on difficult-to-access areas like pipelines and under pipe supports
- Weld defect detection in high-stress environments
- Stress inspections on rail tracks and rail wheels
- Structural integrity checks for boiler tubes, storage tanks, and pressure vessels
| Frequency Range | 20kHz - 1MHz |
| Max. Pulse Width | 200µs |
| Rate (Pulse Repetition Frequency)er of Cycles | Max. number of cycles is limited by the M0.1Hz – 30 Hz in 0.1 Hz steps. Rate is automatically limited by the duty cycle (see datasheet). Max. Duty Cycle is 0.0005 and Setup Time is 34µs. |
| ADC | Picoscope 2000 series via serial output (Type B) |
| Trigger Source | Internal trigger |
| Receiver Gain | 80dB |
| Output Impedance | 50Ω |
| Power Input | 220-250V, 50Hz AC - UK/Europe/China Mains Power Supply |
| Battery | Rechargeable NiMH battery pack (10 x D), 12V, 5.0Ah |
| Enclosure Dimensions | 270 x 100 x 270 mm (W x H x D) |
| Weight | 4.3kg |
| Water Ingress Rating | IP 2.0 |
| Impact Rating | IK08 |
