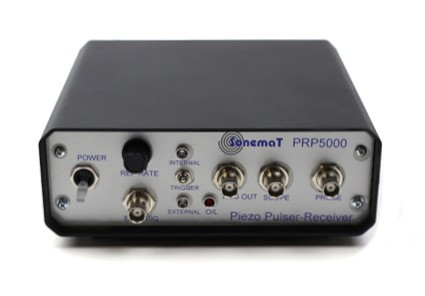

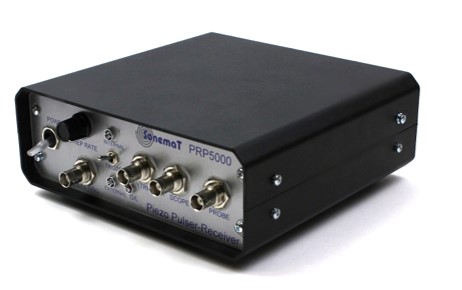

Piezoelectric Pulser Receiver PRP5000
£2000
Key Advantages and Features:
-
- High-Frequency Broadband Pulse: Generates a 200V spike pulse with a center frequency around 5 MHz, supporting precise material and flaw detection applications.
- Easy Integration with Oscilloscopes: The PRP5000 is designed for seamless compatibility with standard oscilloscopes and analogue-to-digital converters, such as Picoscope, allowing for versatile data capture and display options.
- Adjustable Pulse Repetition Rate: Offers a flexible pulse repetition rate adjustable from 1 Hz to 1 kHz, enabling customized pulse settings to match specific testing needs.
- Safe and Compact Design: Built with laboratory safety in mind, the PRP5000 includes safeguards against high-voltage exposure and operates in a compact form factor, making it suitable for teaching and research environments.
Applications:
-
- Material characterization in research and laboratory settings
- Flaw detection and thickness gauging for quality control
- Educational use in ultrasonic testing and acoustic analysis
- General NDT in controlled environments
| Operation Mode | Pulse-echo mode probe (single channel) |
| Dimensions | 190 x 320 x 130mm (L x W x D) |
| Weight | 1.0kg |
| Storage Temp. | -10°C TO +60°C |
| Operating Temp. | 0°C TO +40°C |
| Broadband Spike Pulse | 200V, 100ns width |
| Pulse Repetition Rate | 1Hz - 1kHz (adjustable via dial) |
| Trigger | Internal/External (via switch), external negative -3V |
| Gain | +42dB |
| Bandwidth | 500kHz - 10MHz |
| Power | UK Mains Power Socket (220-240V at 50Hz) |
| Connections | 4 x BNC (50Ω) coaxial |
| Compatibility | Most oscilloscopes or data capture devices |
MFD800C Ultrasonic Flaw Detector
Distributed by Sonemat for MITECH Co. Ltd., the MFD800C Ultrasonic Flaw Detector offers advanced multi-mode imaging, including A-scan, B-scan, and TOFD. This high-resolution detector is perfect for precise, non-destructive testing across metals, ceramics, and composite materials, making it ideal for quality control and industrial inspections. Contact us for a formal quotation and further details.
MFD660C Ultrasonic Flaw Detector
Distributed by Sonemat for MITECH Co. Ltd., the MFD660C Ultrasonic Flaw Detector offers advanced flaw detection with multi-mode imaging, including A-scan, B-scan, and TOFD modes. This high-sensitivity device is ideal for thorough inspections of metals, ceramics, and composites in industrial applications. Contact us for a formal quotation and further details.
MFD550B Ultrasonic Flaw Detector
Distributed by Sonemat for MITECH Co. Ltd., the MFD550B Ultrasonic Flaw Detector offers high-precision flaw detection with advanced data logging, multiple scanning modes, and A-scan/B-scan displays. Ideal for detecting inclusions, cracks, and other material inconsistencies, the MFD550B supports rigorous quality control and industrial inspections. Contact us for a formal quotation and more product details.
Standard delivery via DHL courier. Custom delivery options available upon request.
