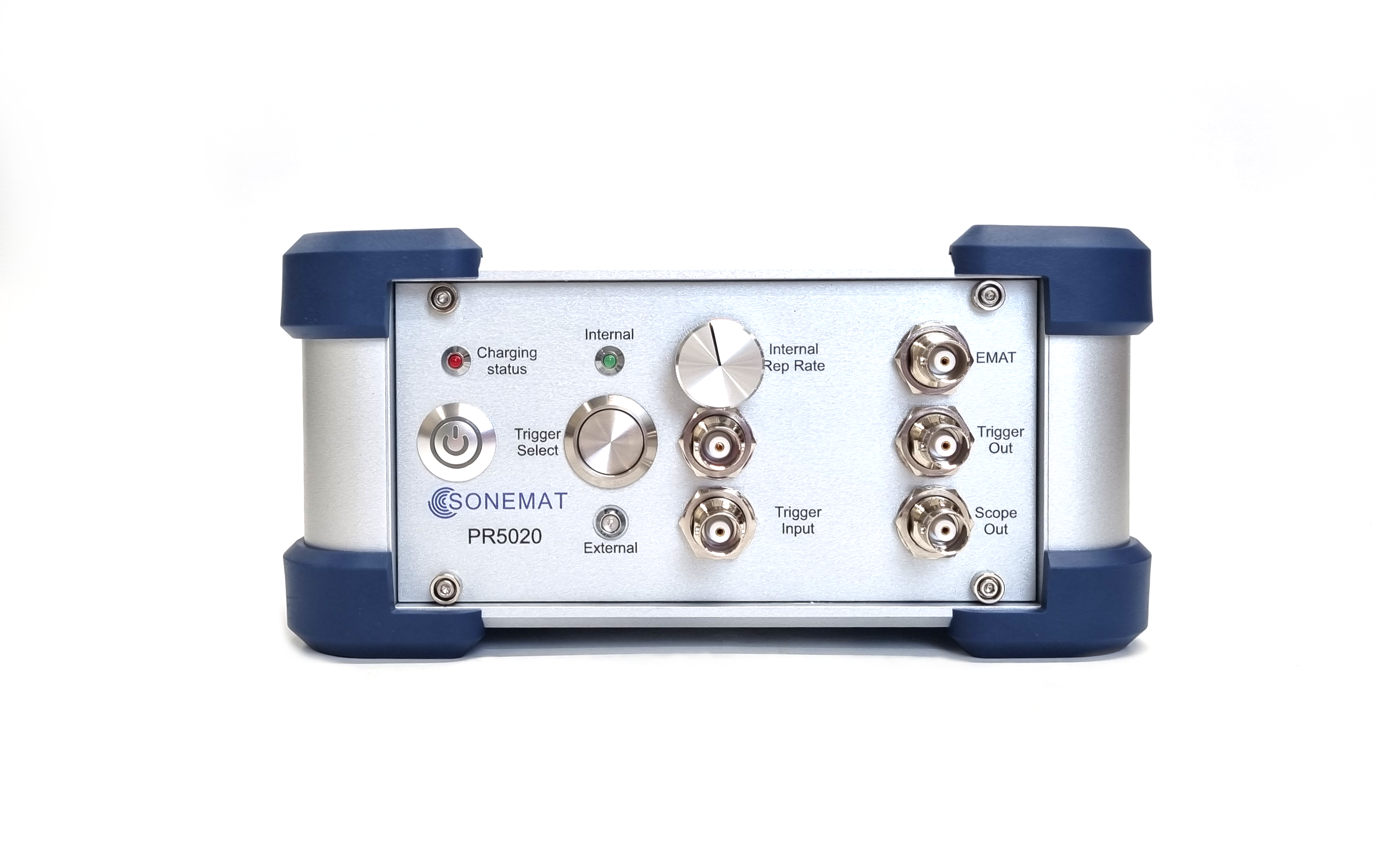

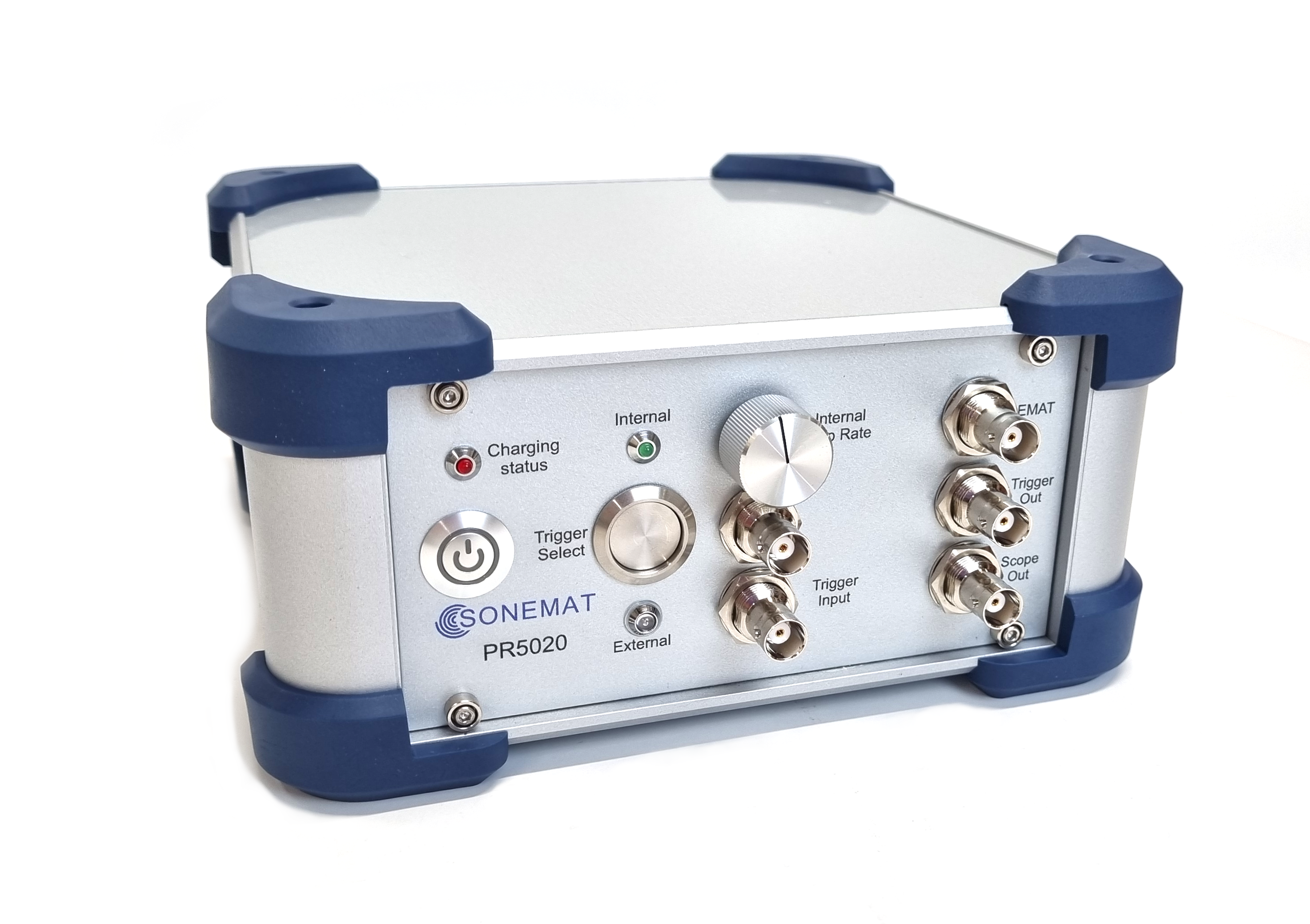

Advanced EMAT Pulser-Receiver PR5020
£6500
Key Advantages and Features:
-
- Enhanced Broadband Pulse: Generates a high-voltage spike pulse (~400V) with a full bandwidth of 500 kHz to 15 MHz, featuring an added +20 dB amplification, delivering superior signal detection through thick or challenging materials.
- Advanced Signal Averaging: Equipped with averaging circuits for improved noise reduction, allowing for high-precision measurements in environments, although the drawback can be an increase in baseline noise - if this is in issue, look at our EMAT Pulser-Receiver PR5000.
- Robotic System Integration: Available in a bare-board configuration, the PR5020 can be integrated seamlessly into robotic or automated scanning systems for high-efficiency inspections in industrial processes.
- Flexible Power Options: Operates with either mains power or a rechargeable Li-ion battery pack, offering over 10 hours of continuous operation, making it suitable for both fieldwork and laboratory settings.
- Versatile Applications: Suited for high-sensitivity NDT tasks, including corrosion monitoring, acoustic birefringence, and defect detection in pipelines, boilers, and critical infrastructure.
Applications:
-
- Precise thickness gauging and flaw detection in industrial pipelines and storage tanks
- Corrosion monitoring and defect inspection in boiler tubes and vessels
- Acoustic birefringence and crystallographic texture analysis
- Integration in robotic systems for automated NDT processes
| Driving Pulse | Broadband spike pulse around 400V, 100 ns pulse with @ 1kHz |
| Bandwidth | Broadband response with centre frequency around 3-5MHz; full bandwidth 500kHz - 15MHz |
| Amplifier | +80dB, additional +20dB from advanced circuit |
| Pulse Repetition Rate | Controlled by dial, 1 - 1kHz |
| Dimensions | 185 x 190 x 70mm (L x W x D) approx. |
| Weight | 1.4kg |
| Trigger | External or Internal Trigger |
| Storage Temp. | -10°C TO +60°C |
| Operating Temp. | 0°C TO +40°C |
| Mains Power Option | 220-250V, 50Hz AC - UK/Europe/China Mains power supply |
| Battery Power Option | Li-ion battery pack (14.8V, 2.6Ah, 38.48 Wh), or 8 x AA batteries |
| Li-ion Battery Lifetime | 10+ hours of continuous use |
| Li-ion Battery Charge Time | 1 - 1.5 hrs from empty to fully charged |
| Connections | 5 x BNC connectors |
