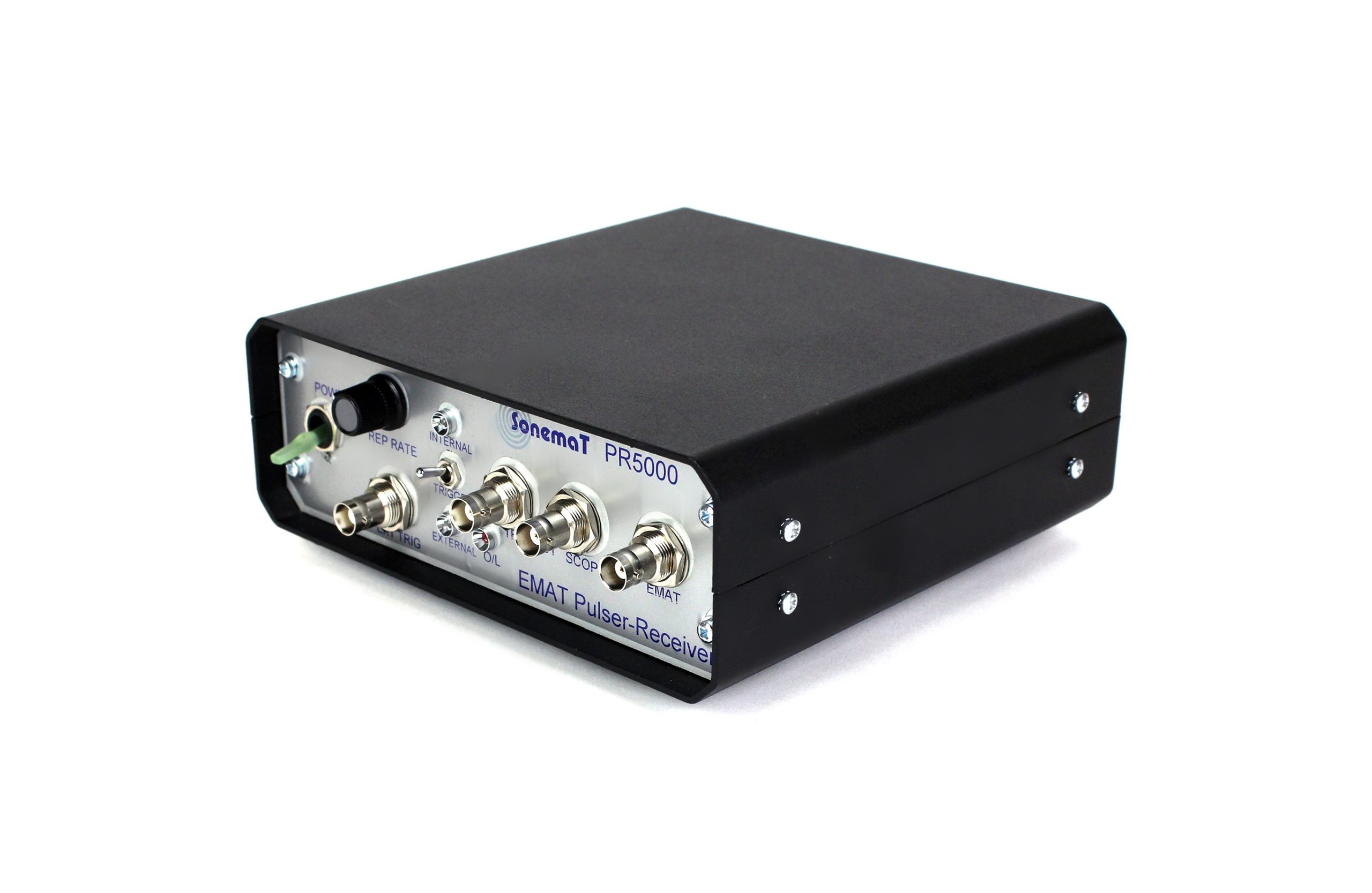

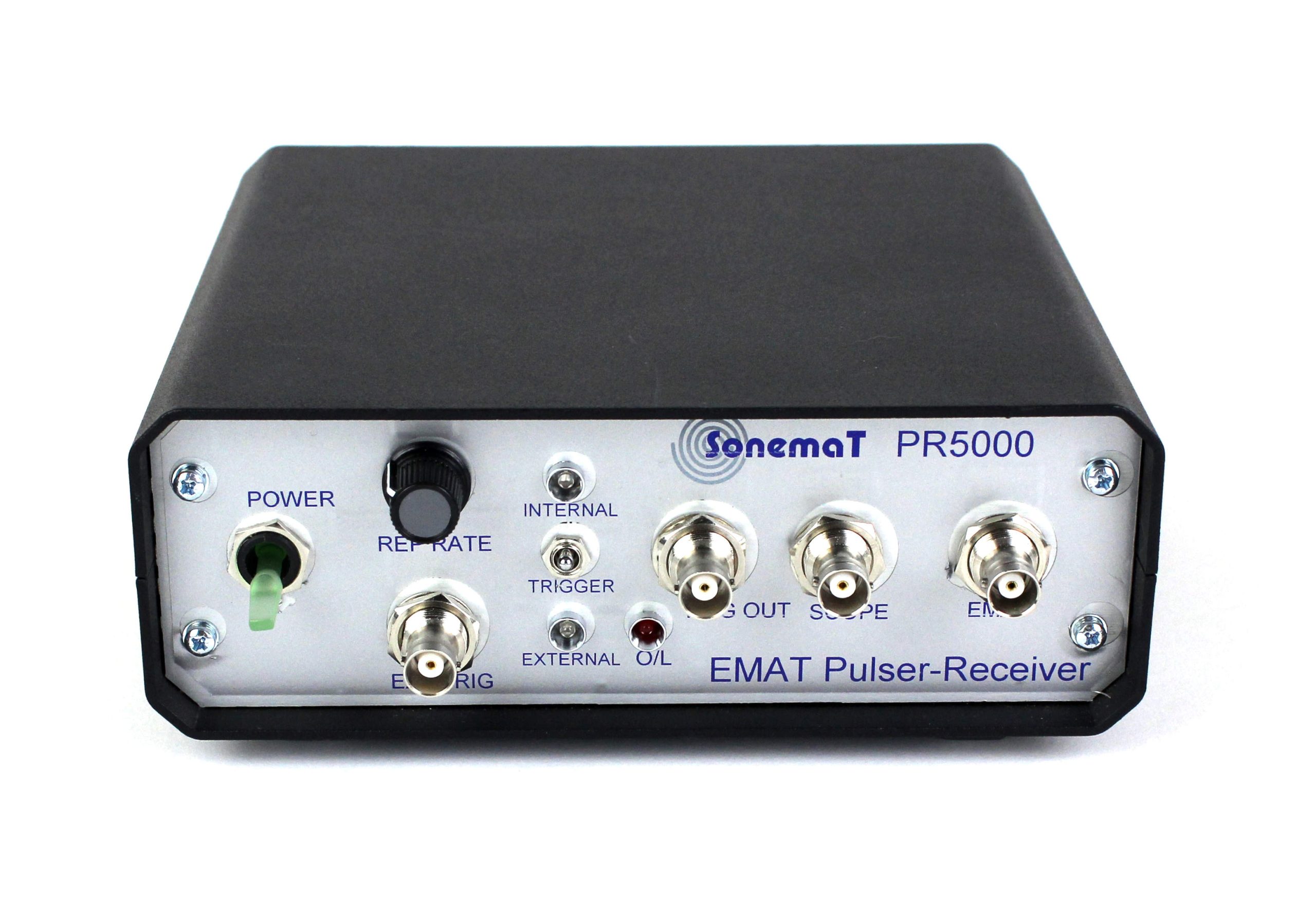

EMAT Pulser-Receiver PR5000
£6500
Key Advantages and Features:
-
- Broadband Pulse Output: Generates a powerful, broadband spike pulse at around 400V, with an operating bandwidth of 500 kHz to 15 MHz, making it suitable for a wide range of EMAT testing needs.
- Customisable Integration: Available in a compact, bare-board configuration for seamless integration into robotic and automated scanning systems, expanding its use in advanced manufacturing and inspection processes.
- High-Performance Amplifier: Equipped with a +80 dB low-noise amplifier, it ensures clear and precise signal capture for accurate flaw detection, thickness gauging, and material analysis.
- Flexible Power Options: Operates via mains power or a rechargeable Li-ion battery pack (up to 10 hours), making it adaptable for both lab and fieldwork. For added convenience, AA battery support is also available.
- Diverse Applications: Capable of handling critical NDT tasks such as corrosion monitoring, acoustic birefringence, defect detection, and crystallographic texture analysis, the PR5000 supports precise assessments even in challenging environments.
Applications:
-
- Flaw detection and thickness gauging for materials in pipelines, tanks, and vessels
- Corrosion and defect monitoring in boiler tubes
- Material characterization, including crystallographic texture and acoustic birefringence
- Structural integrity inspections across industrial sectors
| Driving Pulse | Broadband spike pulse around 400V, 100 ns pulse with @ 1kHz |
| Bandwidth | Broadband response with centre frequency around 3-5MHz; full bandwidth 500kHz - 15MHz |
| Amplifier | +80dB |
| Pulse Repetition Rate | Controlled by dial, 1 - 1kHz |
| Dimensions | 185 x 190 x 70mm (L x W x D) approx. |
| Weight | 1.4kg |
| Trigger | External or Internal Trigger |
| Storage Temp. | -10°C TO +60°C |
| Operating Temp. | 0°C TO +40°C |
| Mains Power Option | 220-250V, 50Hz AC - UK/Europe/China Mains power supply |
| Battery Power Option | Li-ion battery pack (14.8V, 2.6Ah, 38.48 Wh), or 8 x AA batteries |
| Li-ion Battery Lifetime | 10+ hours of continuous use |
| Li-ion Battery Charge Time | 1 - 1.5 hrs from empty to fully charged |
| Connections | 4 x BNC connectors |

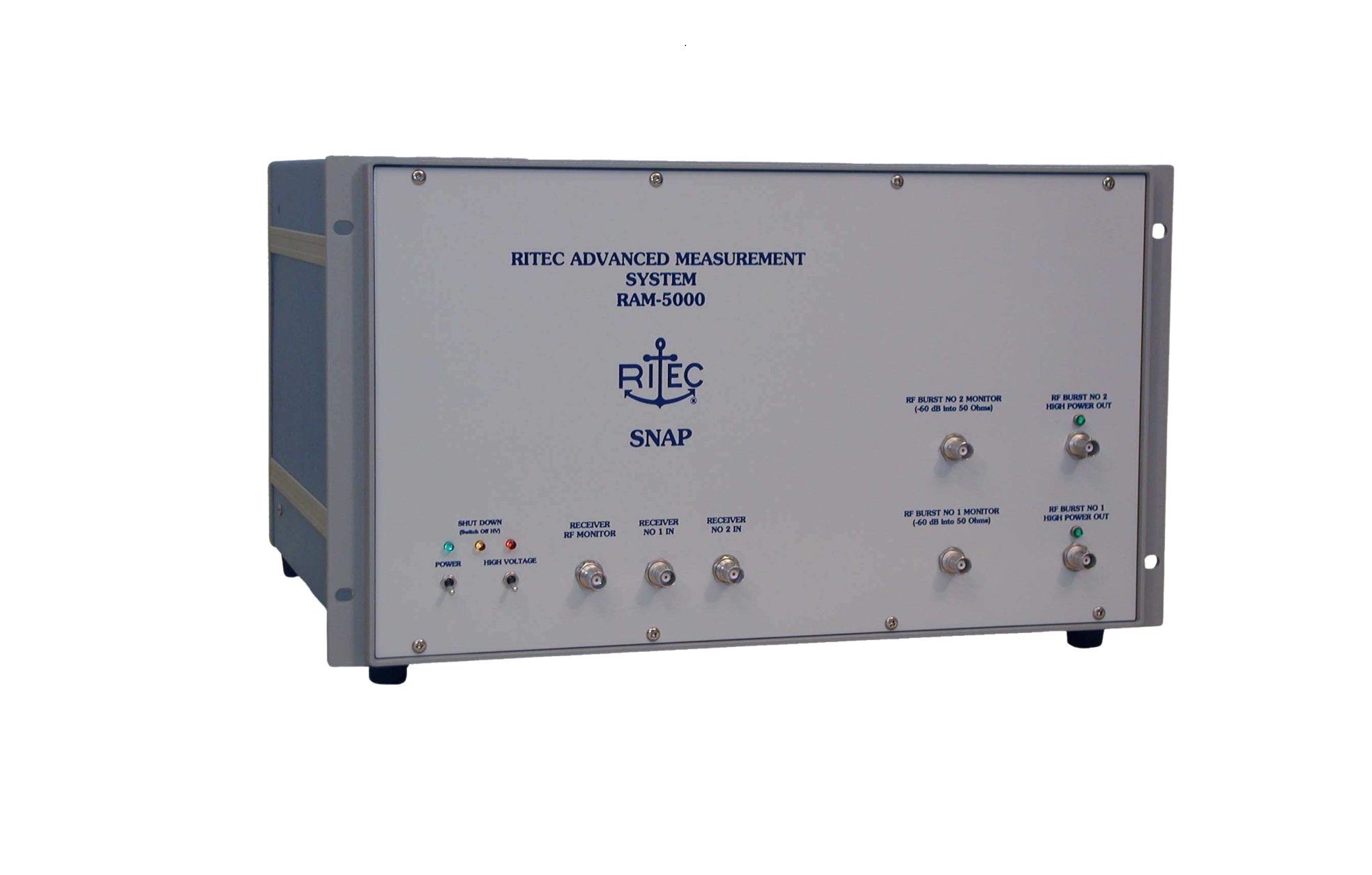

SNAP Study of Nonlinear Acoustic Phenomenon
Distributed by Sonemat on behalf of RITEC Inc., the RITEC SNAP System is a specialized ultrasonic instrument designed for the study of nonlinear acoustic phenomena. With high-power toneburst outputs, phase-sensitive superheterodyne receivers, and modular configuration, the SNAP System provides exceptional sensitivity and accuracy for advanced material evaluations, especially in nonlinear and harmonic acoustic applications.

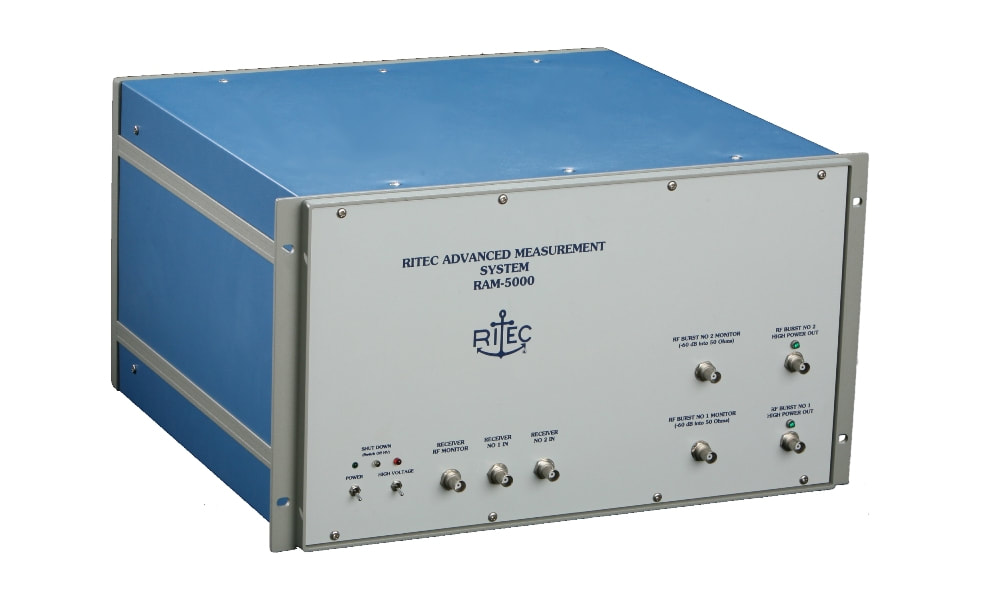

RAM5000 Computer Controlled Ultrasonic System
Distributed by Sonemat for RITEC Inc., the RITEC RAM5000 is a modular, computer-controlled ultrasonic system designed for high-power, precision testing. Featuring high-amplitude RF toneburst output, advanced signal processing, and multiple configurable “Marks,” the RAM5000 is ideal for both industrial and research applications requiring customizable ultrasonic capabilities. This versatile system delivers exceptional results in flaw detection, material characterization, and acoustic property analysis.

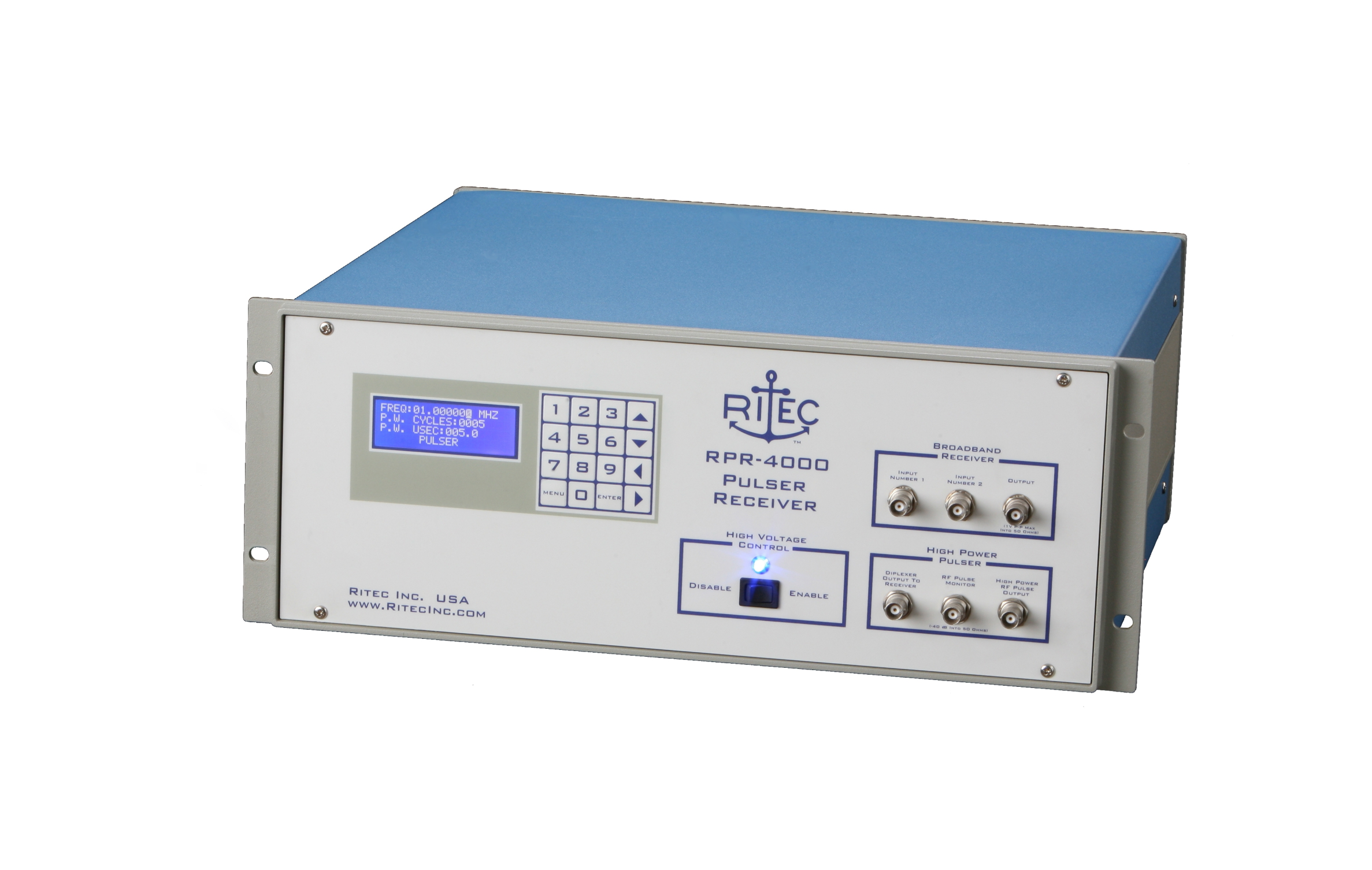

RPR-4000 High Power Pulser-Receiver
Distributed by Sonemat for RITEC Inc., the RITEC PRP-4000 High Power Toneburst Pulser Receiver is engineered for high-performance ultrasonic testing. This versatile system is capable of delivering high-amplitude tonebursts with minimal distortion, making it ideal for applications in flaw detection, material characterization, and research environments that demand precision and reliability. With advanced toneburst capabilities, the PRP-4000 is compatible with a variety of transducers, including Sonemat’s EMATs, and is suited for challenging industrial testing requirements.
Standard delivery via DHL courier. Custom delivery options available upon request.
