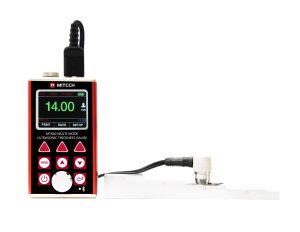

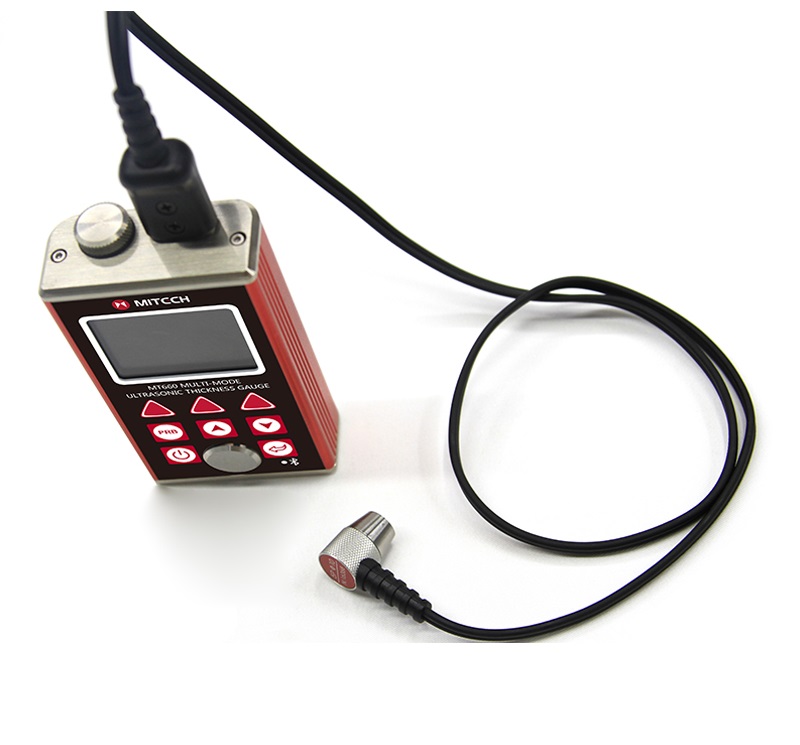

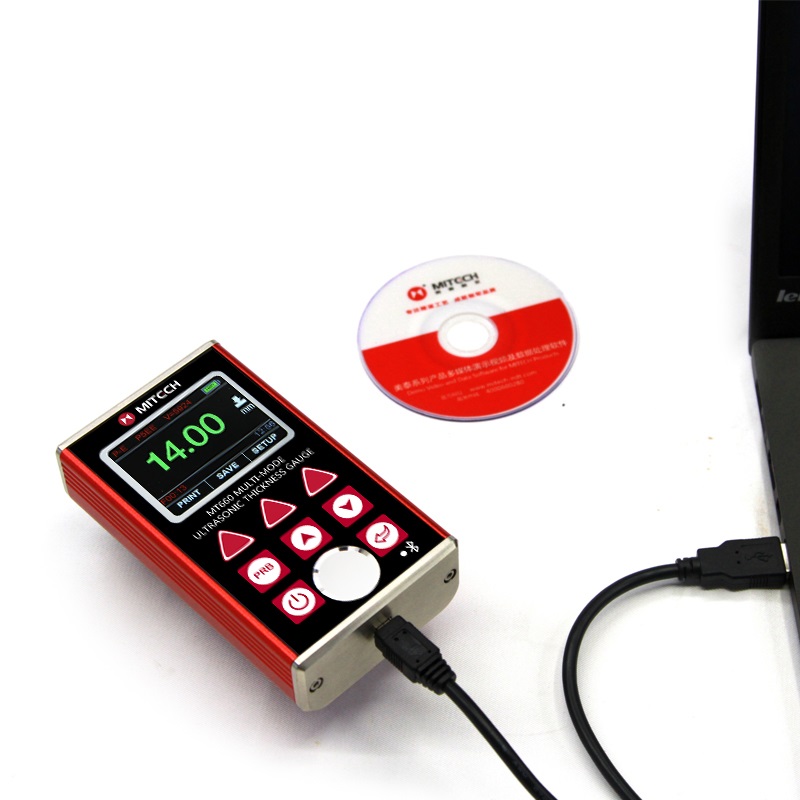

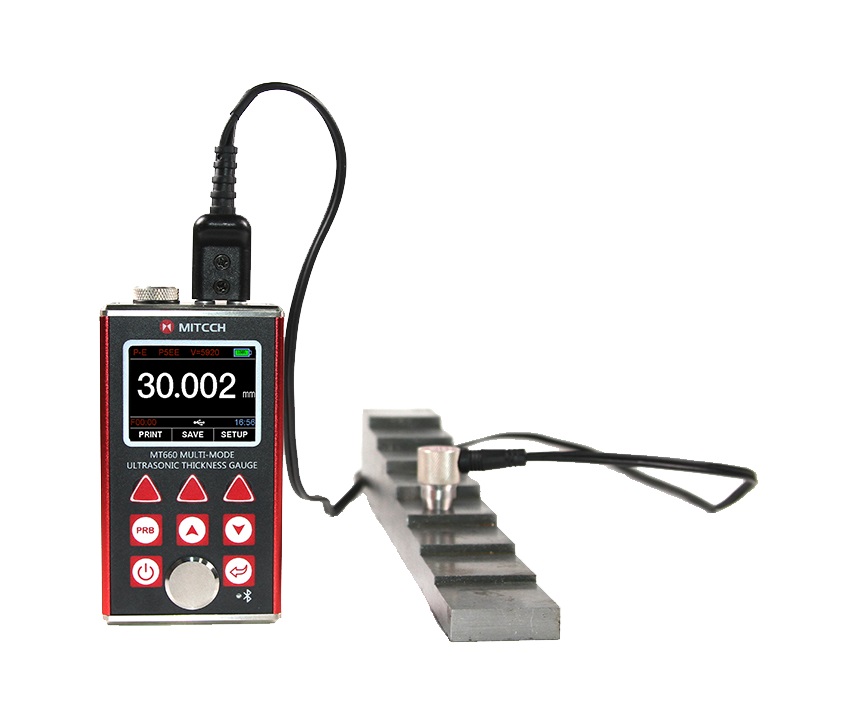

MT660 Multi-Mode Ultrasonic Thickness Gauge
Key Features:
-
- Multi-Mode Functionality: Supports multiple measurement modes for accurate readings through coatings and layers.
- Precision Measurement: High-accuracy measurements for diverse materials, including metals and composites.
- Advanced Options: Data storage, adjustable sound velocity, and gain control for versatile usage.
- Durable and Portable: Designed for use in industrial environments and field applications.
Applications:
-
- Quality control in manufacturing, aerospace, and automotive sectors
- Non-destructive testing (NDT) in energy, construction, and infrastructure
- Maintenance inspections for pipelines, tanks, and structural components
| Measuring Range | 0.65-600mm (P-E), 3-100mm (E-E) |
| Working Frequency | 2.5 - 7 MHz |
| Probe Diameter | Standard Probe P5EE is 10mm, Probe N05 is 10mm, Probe N07 is 6mm, Probe HT5 is 12mm, Probe N02 is 12mm |
| Min. Pipe Diameter | Φ15mm×2.0mm |
| Resolution | 0.1/0.01/0.001mm |
| Accuracy | ±0.04mm（<10mm）；±0.4%Hmm(>10mm) |
| Display | Colour TFT display (320×240 TFT LCD) with adjustable backlight |
| Single /Scan Mode | Single mode, Scan Mode, and and Diff Mode |
| Probe Calibration | Zero calibration, two-point calibration, automatic error correction system |
| Velocity Range | 1000-9999m/s |
| Unit | Metric/Imperial unit selectable |
| Language | English |
| Memory | 100 groups (100values for each group) of stored values |
| Communication Port | USB, Bluetooth |
| Data Printing | yes |
| Power supply | Two “AA” size, 1.5V alkaline batteries |
| Working Hours | 30 hour |
| Operating Temperature | -20℃-+60℃ |
| Relative Humidity | ≤90％ |
| Appearance | Extruded aluminium body |
| Dimensions | 120mm×67mm×31mm |
| Gross Weight | 1.5kg |
| PC Datapro Software | Yes |
| Speech Function | Yes |
ORIETG® series X2 Electromagnetic Ultrasonic (EMAT) Pen-type Eddy Current Thickness Gauge
Distributed by Sonemat for ORISONIC Co. Ltd., The ORIETG® series X2 thickness gauge uses electromagnetic ultrasonic EMAT sensor technology, featuring both ultrasonic thickness measurement and eddy current coating thickness measurement functions. It is a non-contact thickness measurement instrument that does not require acoustic coupling agents, capable of measuring the thickness of metals or ferromagnetic materials and the thickness of surface coatings.
MT600 Multi-Mode Ultrasonic Thickness Gauge
The MITECH MT600 Multi-Mode Ultrasonic Thickness Gauge, distributed by Sonemat, delivers reliable and flexible thickness measurements for a variety of materials, including metals, ceramics, and glass. Designed for both lab and field use, this gauge offers multiple measurement modes and advanced features such as data logging and adjustable sound velocity. The MT600 is an essential tool for detailed inspections and quality control in industries that require precision and durability.
MT200 Ultrasonic Thickness Gauge
Distributed by Sonemat for MITECH Co. Ltd., the MT200 Ultrasonic Thickness Gauge is designed for precise, non-destructive thickness measurements across metals, plastics, ceramics, and glass. Equipped with data storage, multi-mode settings, and high accuracy, the MT200 is ideal for industrial inspections and quality control. Contact us for a formal quotation and more information.
