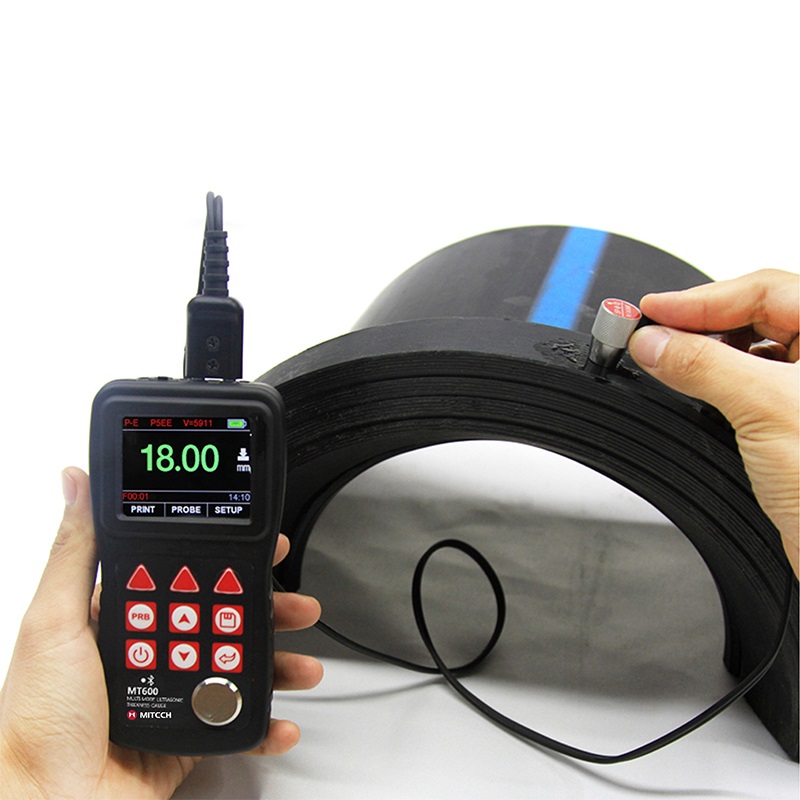

MT600 Multi-Mode Ultrasonic Thickness Gauge
Key Features:
-
- Multi-Mode Measurement: Supports through-coating, echo-echo, and multiple other modes to handle complex materials.
- High Accuracy: Delivers precise thickness readings for quality control and detailed inspections.
- Advanced Functionality: Includes data logging, adjustable gain, and sound velocity settings.
- Rugged and Portable: Durable design, suitable for challenging industrial environments.
Applications:
-
- Quality control in manufacturing and production
- Non-destructive testing (NDT) in energy, aerospace, and automotive sectors
- Maintenance inspections of pipelines, tanks, and structural components
| Measuring Range | 0.65-600mm( P-E), 3-100mm (E-E) |
| Working Frequency | 2.5-7 MHz |
| Probe Diameter | Standard Probe P5EE is 10mm, Probe N05 is 10mm,Probe N07 is 6mm, Probe HT5 is 12mm, Probe N02 is 12mm |
| Min. Pipe Diameter | Φ15mm×2.0mm |
| Resolution | 0.1/0.01/0.001mm |
| Accuracy | ±0.04mm（<10mm）；±0.4%Hmm(>10mm) |
| Display | 320x240 TFT colour LCD screen, adjustable backlight brightness |
| Single /Scan Mode | Single mode, Scan Mode, and and diff mode |
| Probe Calibration | Zero calibration, two-point calibration, automatic error correction system |
| Velocity Range | 1000-9999m/s |
| Unit | Metric/Imperial unit selectable |
| Language | English |
| Communication Port | USB, Bluetooth |
| Data Printing | Yes |
| Power supply | Two “AA” size, 1.5V alkaline batteries |
| Working Hours | 30h |
| Operating Temperature | -20℃-+60℃ |
| Relative Humidity | ≤90％ |
| Appearance | ABS Plastic |
| Dimensions | 150mm×76mm×38mm |
| Gross Weight | 295g |
| PC Datapro Software | Yes |
| Speech Function | Yes |

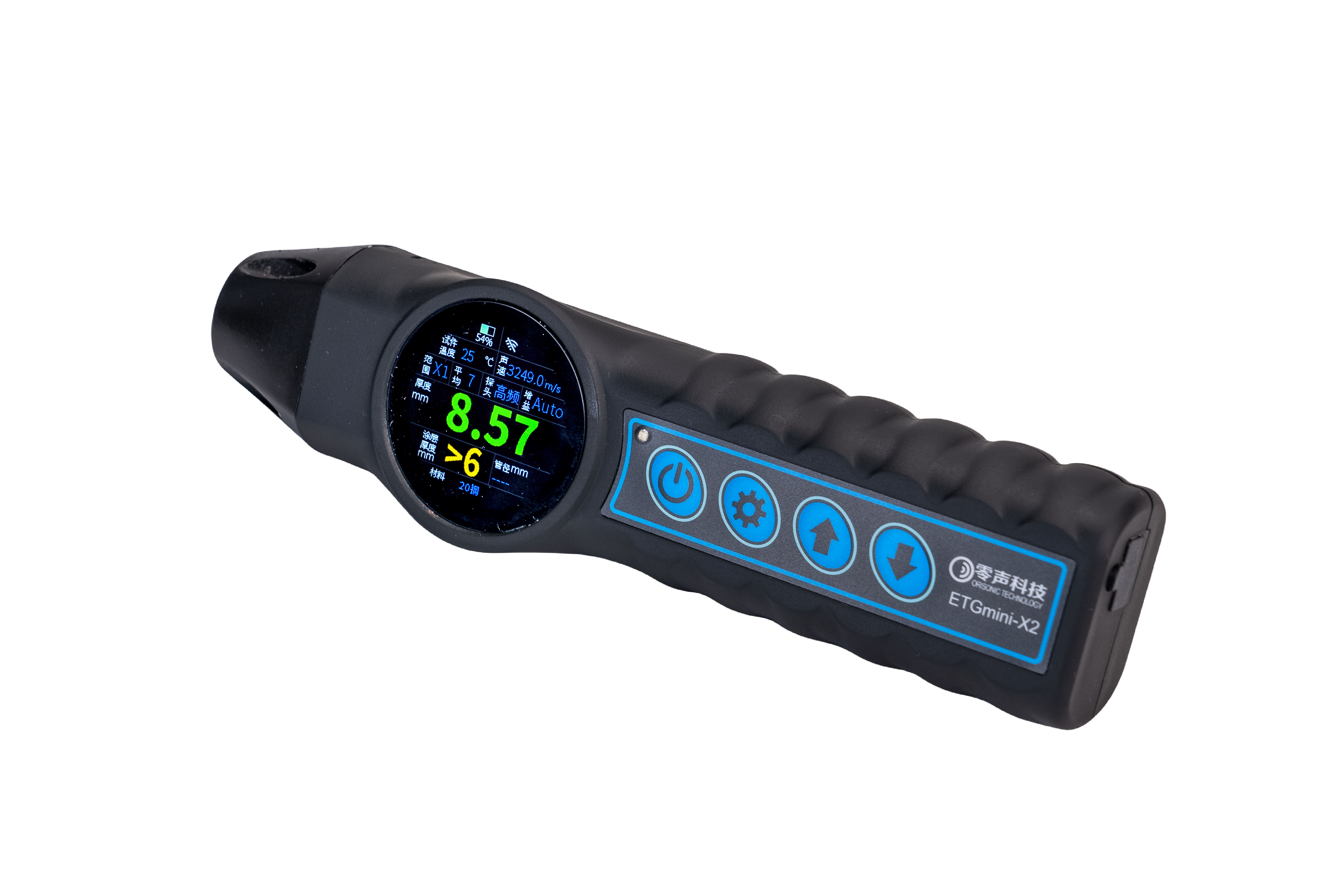

ORIETG® series X2 Electromagnetic Ultrasonic (EMAT) Pen-type Eddy Current Thickness Gauge
Distributed by Sonemat for ORISONIC Co. Ltd., The ORIETG® series X2 thickness gauge uses electromagnetic ultrasonic EMAT sensor technology, featuring both ultrasonic thickness measurement and eddy current coating thickness measurement functions. It is a non-contact thickness measurement instrument that does not require acoustic coupling agents, capable of measuring the thickness of metals or ferromagnetic materials and the thickness of surface coatings.

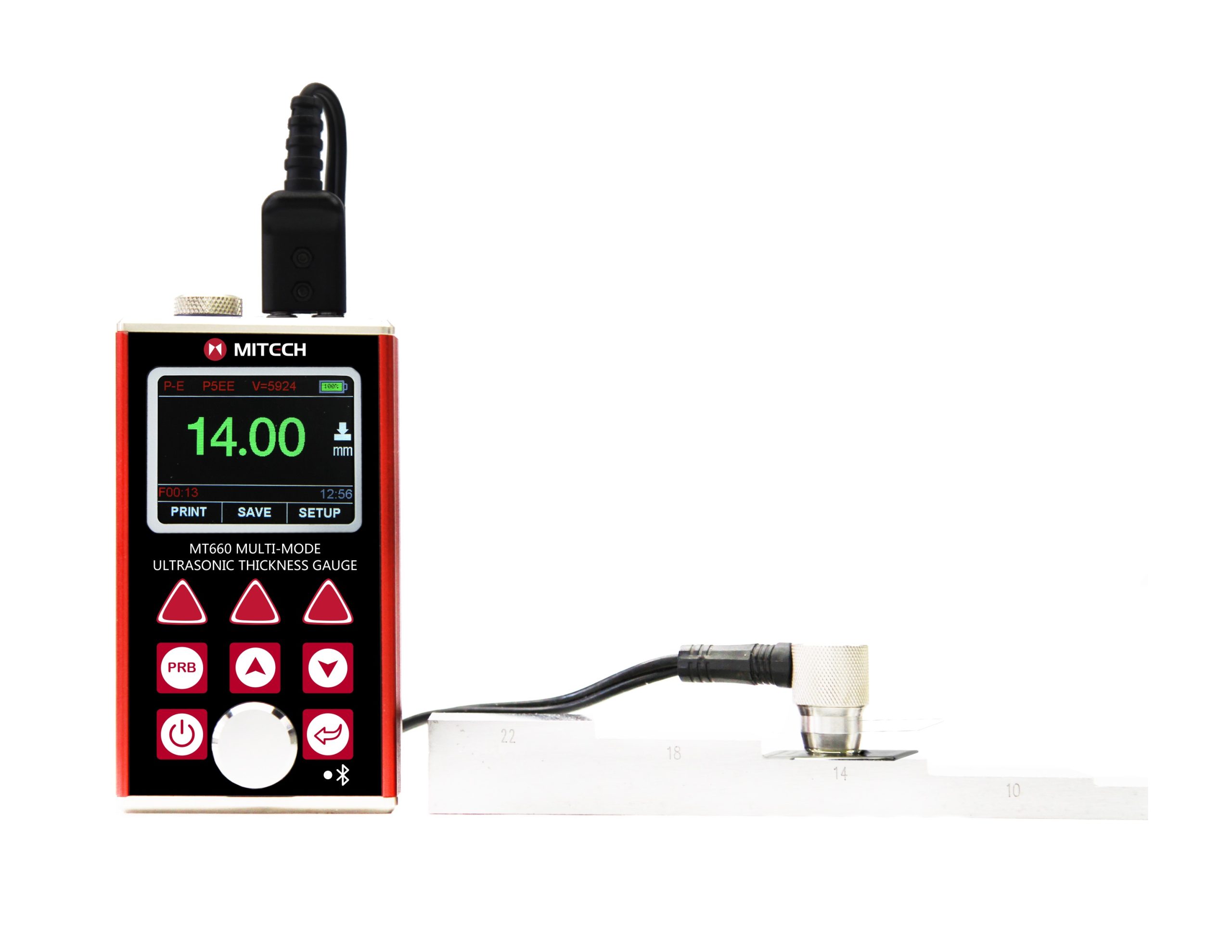

MT660 Multi-Mode Ultrasonic Thickness Gauge
Distributed by Sonemat for MITECH Co. Ltd., the MT660 Multi-Mode Ultrasonic Thickness Gauge provides advanced measurement capabilities, including through-coating and multiple echo modes. Its precision and flexibility make it ideal for material inspection across metals, plastics, and composites. Contact us for a formal quotation and further details on this versatile instrument.

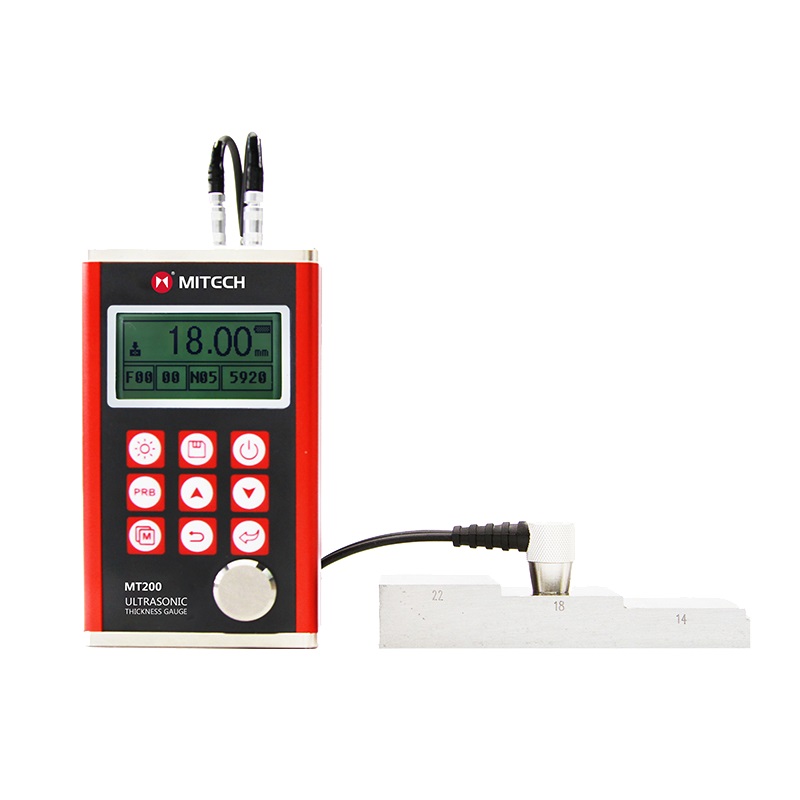

MT200 Ultrasonic Thickness Gauge
Distributed by Sonemat for MITECH Co. Ltd., the MT200 Ultrasonic Thickness Gauge is designed for precise, non-destructive thickness measurements across metals, plastics, ceramics, and glass. Equipped with data storage, multi-mode settings, and high accuracy, the MT200 is ideal for industrial inspections and quality control. Contact us for a formal quotation and more information.
Standard delivery via DHL courier. Custom delivery options available upon request.
