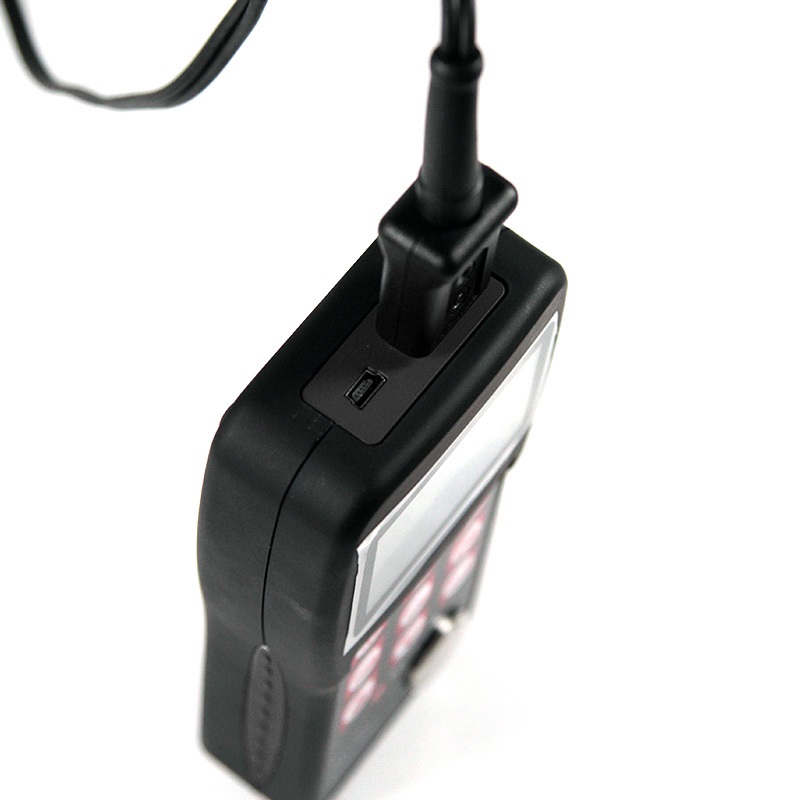

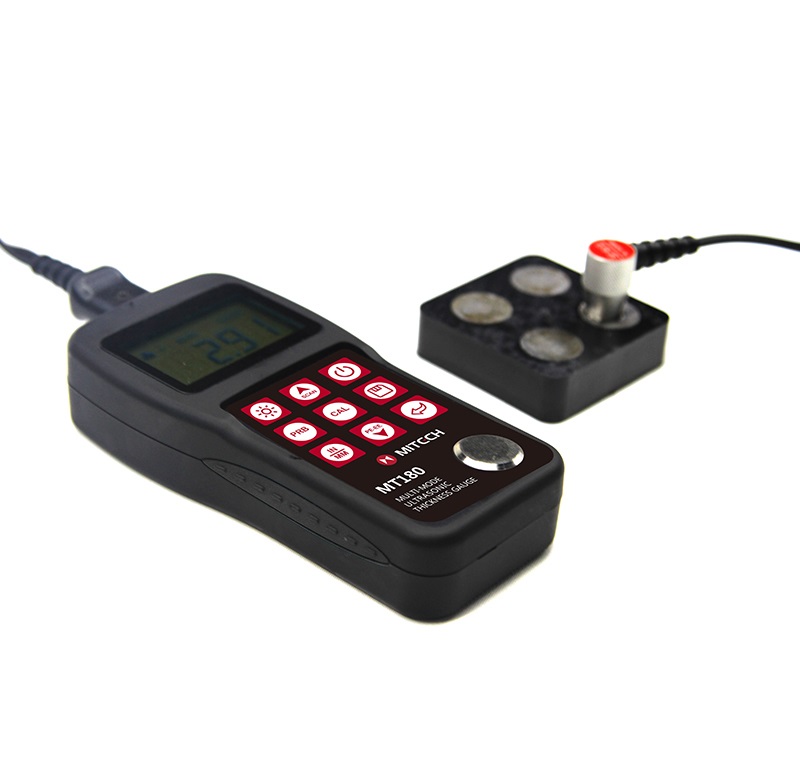

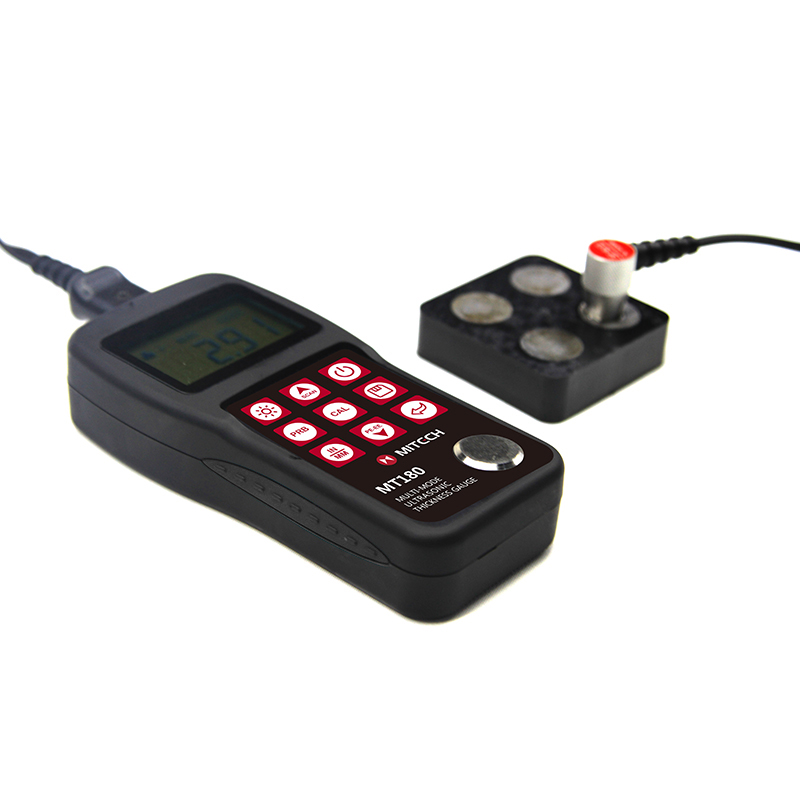

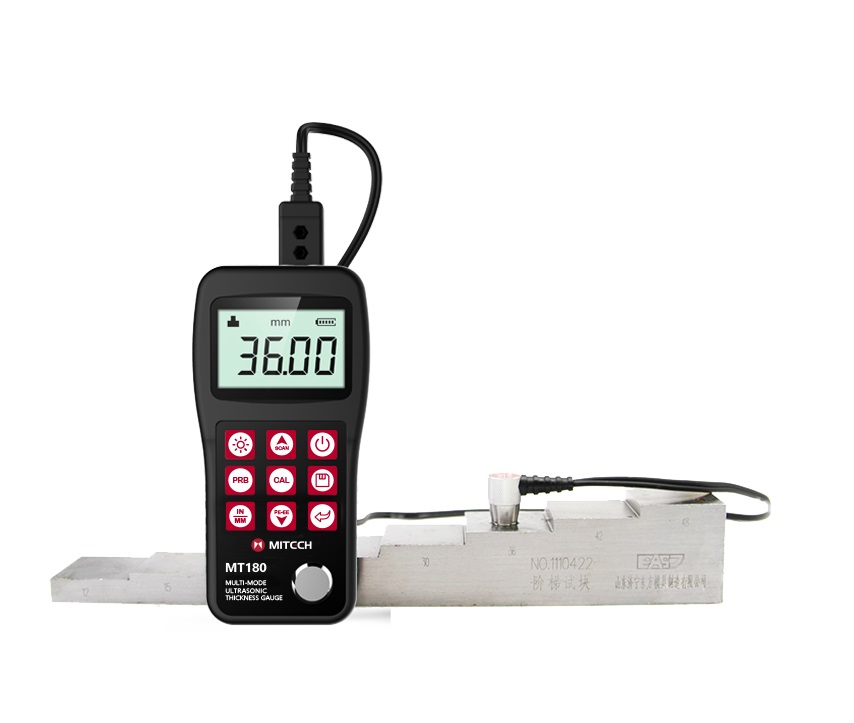

MT180 Multi-Mode Ultrasonic Thickness Gauge
Key Features:
-
- Wide Material Compatibility: Accurately measures metals, ceramics, plastics, and glass.
- Precision Measurement: Provides accurate readings essential for industrial inspections.
- Portable Design: Lightweight and easy to use for field and laboratory settings.
- Advanced Features: Includes data logging, multi-mode measurements, and adjustable gain for customized results.
Applications:
-
- Quality control in manufacturing and production lines
- Maintenance inspections in industrial sectors like energy and construction
- Non-destructive testing of structural components, pipelines, and tanks
| Measuring Range | 0.65-600mm( P-E), 3-30mm (E-E) |
| Working Frequency | 2.5-7MHZ |
| Probe Diameter | Standard Probe P5EE is 10mm, Probe N05 is 10mm, Probe N07 is 6mm, Probe HT5 is 12mm, Probe N02 is 12mm |
| Min. Pipe Diameter | Φ15mm×2.0mm |
| Resolution | 0.1/0.01mm |
| Accuracy | ±0.5%Thickness+0.01 mm |
| Display | 4.5 digits LCD with EL backlight |
| Single /Scan Mode | Seven measurements readings per second in single point mode, and sixteen per second in Scan Mode |
| Probe Calibration | Zero Calibration, Two-Point Calibration |
| Velocity Range | 1000-9999m/s |
| Unit | Metric/Imperial unit selectable |
| Language | English |
| Memory | up to 20 files (up to 99 values for each file) of stored values |
| Communication Port | USB |
| Data Printing | Yes |
| Power supply | Two “AA” size, 1.5V alkaline batteries |
| Working Hours | 100h (EL backlight off). |
| Operating Temperature | -20℃-+60℃ |
| Relative Humidity | ≤90％ |
| Appearance | ABS Plastic |
| Dimensions | 150mm×74mm×32 mm |
| Gross Weight | 1.5kg |
| Speech Function | No |
ORIETG® series X2 Electromagnetic Ultrasonic (EMAT) Pen-type Eddy Current Thickness Gauge
Distributed by Sonemat for ORISONIC Co. Ltd., The ORIETG® series X2 thickness gauge uses electromagnetic ultrasonic EMAT sensor technology, featuring both ultrasonic thickness measurement and eddy current coating thickness measurement functions. It is a non-contact thickness measurement instrument that does not require acoustic coupling agents, capable of measuring the thickness of metals or ferromagnetic materials and the thickness of surface coatings.
MT660 Multi-Mode Ultrasonic Thickness Gauge
Distributed by Sonemat for MITECH Co. Ltd., the MT660 Multi-Mode Ultrasonic Thickness Gauge provides advanced measurement capabilities, including through-coating and multiple echo modes. Its precision and flexibility make it ideal for material inspection across metals, plastics, and composites. Contact us for a formal quotation and further details on this versatile instrument.
MT600 Multi-Mode Ultrasonic Thickness Gauge
The MITECH MT600 Multi-Mode Ultrasonic Thickness Gauge, distributed by Sonemat, delivers reliable and flexible thickness measurements for a variety of materials, including metals, ceramics, and glass. Designed for both lab and field use, this gauge offers multiple measurement modes and advanced features such as data logging and adjustable sound velocity. The MT600 is an essential tool for detailed inspections and quality control in industries that require precision and durability.
Standard delivery via DHL courier. Custom delivery options available upon request.
