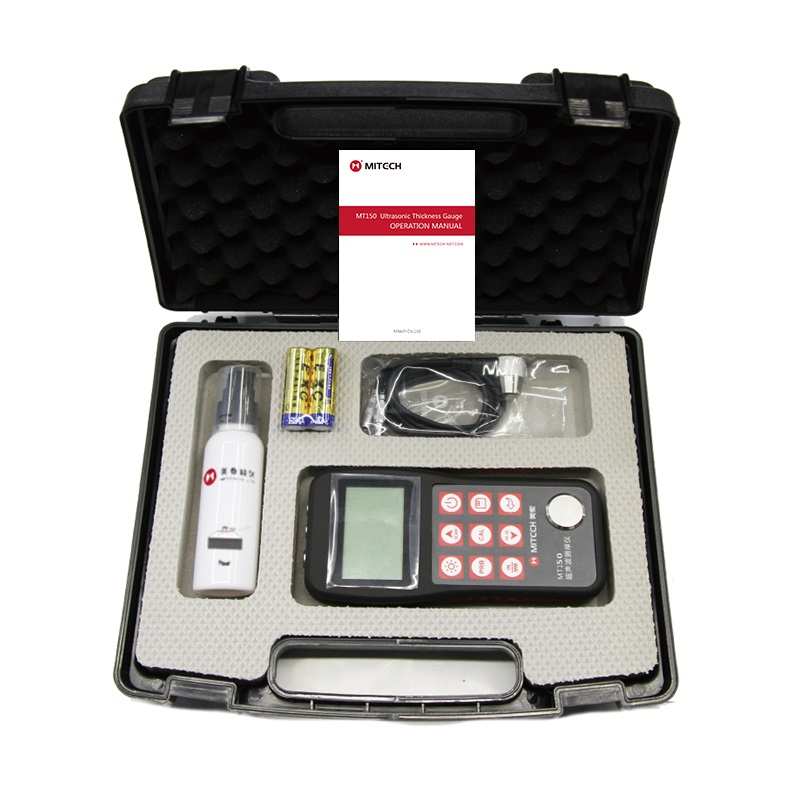

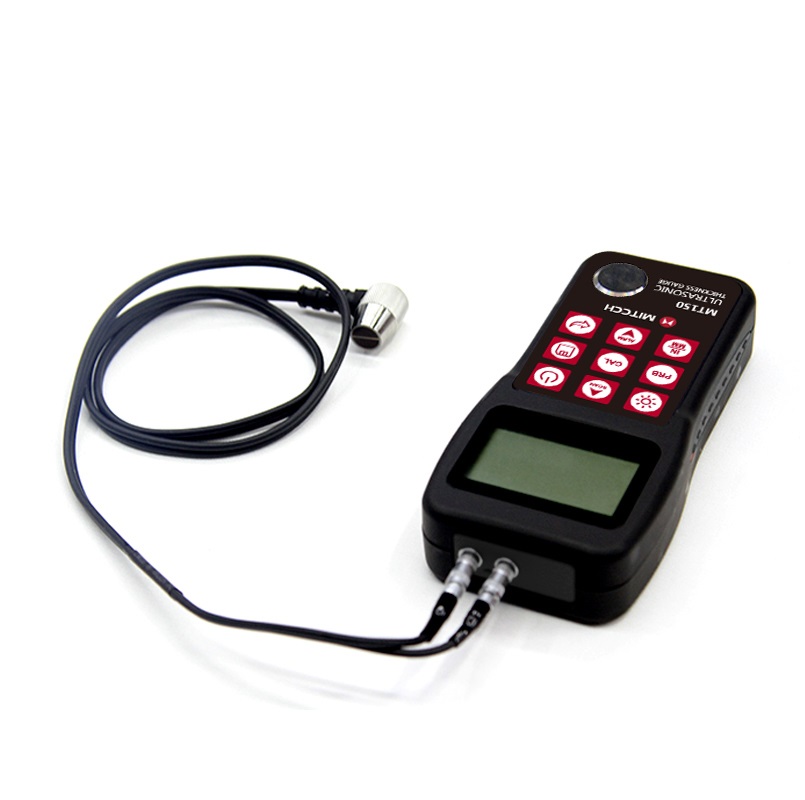

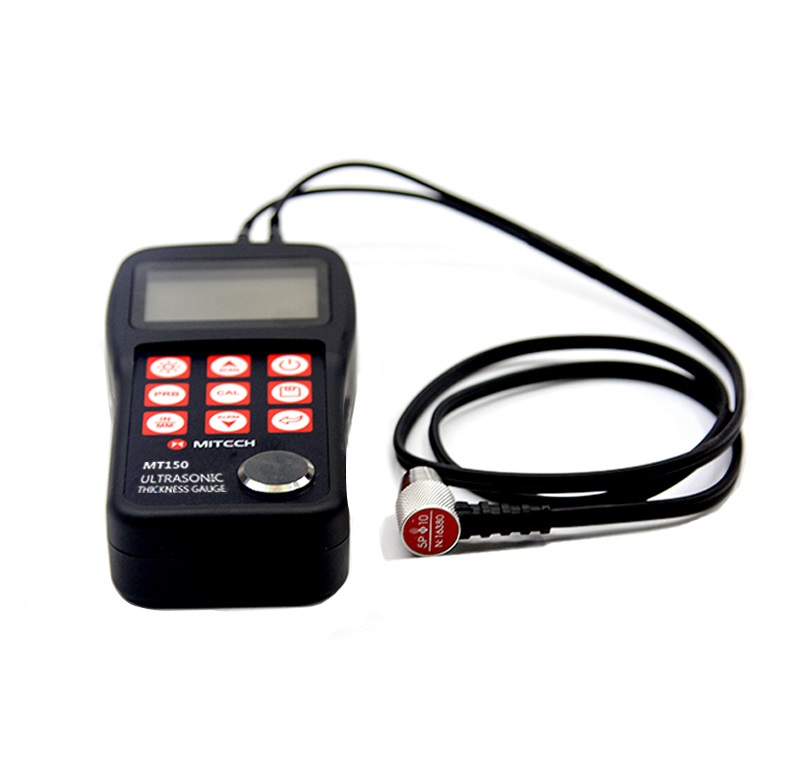

MT150 Ultrasonic Thickness Gauge
Key Features:
-
- Broad Material Compatibility: Measures thickness in metals, ceramics, plastics, glass, and more.
- High Precision and Accuracy: Delivers consistent, accurate readings for industrial applications.
- User-Friendly Design: Lightweight and portable for ease of use in various inspection scenarios.
- Advanced Features: Adjustable gain, multi-mode measurement, and selectable sound velocity settings for customised use.
Applications:
-
- Quality control in industrial and manufacturing environments
- Non-destructive testing (NDT) for pipelines, tanks, and infrastructure
- Maintenance checks in energy, automotive, aerospace, and construction industries
| Measuring Range | 0.75-300mm (Depends on probes) |
| Working Frequency | 2.5-7 MHz |
| Probe Diameter | Standard N05 is 10mm, Probe N07 is 6mm, Probe HT5 is 12mm, Probe N02 is 12mm |
| Min. Pipe Diameter | Φ15mm×2.0mm |
| Resolution | 0.1mm |
| Accuracy | ±（0.5%Thickness+0.04）mm,depends on probes |
| Display | 4.5 digits LCD with EL backlight |
| Single /Scan Mode | Four measurements readings per second for single point measurement, and ten per second for Scan Mode |
| Probe Calibration | Zero Calibration, Two-Point Calibration |
| Velocity Range | 1000-9999m/s |
| Unit | Metric/Imperial unit selectable |
| Language | English |
| Memory | up to 20 files (up to 99 values for each file) of stored values |
| Communication Port | No |
| Data Printing | No |
| Power supply | Two “AA” size, 1.5V alkaline batteries |
| Working Hours | 100h (EL backlight off). |
| Operating Temperature | －20℃～＋60℃ |
| Relative Humidity | ≤90％ |
| Appearance | ABS Plastic |
| Dimensions | 150mm×74mm×32 mm |
| Gross Weight | 1.5kg |
| PC Datapro Software | No |
| Speech Function | No |
ORIETG® series X2 Electromagnetic Ultrasonic (EMAT) Pen-type Eddy Current Thickness Gauge
Distributed by Sonemat for ORISONIC Co. Ltd., The ORIETG® series X2 thickness gauge uses electromagnetic ultrasonic EMAT sensor technology, featuring both ultrasonic thickness measurement and eddy current coating thickness measurement functions. It is a non-contact thickness measurement instrument that does not require acoustic coupling agents, capable of measuring the thickness of metals or ferromagnetic materials and the thickness of surface coatings.
MT660 Multi-Mode Ultrasonic Thickness Gauge
Distributed by Sonemat for MITECH Co. Ltd., the MT660 Multi-Mode Ultrasonic Thickness Gauge provides advanced measurement capabilities, including through-coating and multiple echo modes. Its precision and flexibility make it ideal for material inspection across metals, plastics, and composites. Contact us for a formal quotation and further details on this versatile instrument.
MT600 Multi-Mode Ultrasonic Thickness Gauge
The MITECH MT600 Multi-Mode Ultrasonic Thickness Gauge, distributed by Sonemat, delivers reliable and flexible thickness measurements for a variety of materials, including metals, ceramics, and glass. Designed for both lab and field use, this gauge offers multiple measurement modes and advanced features such as data logging and adjustable sound velocity. The MT600 is an essential tool for detailed inspections and quality control in industries that require precision and durability.
