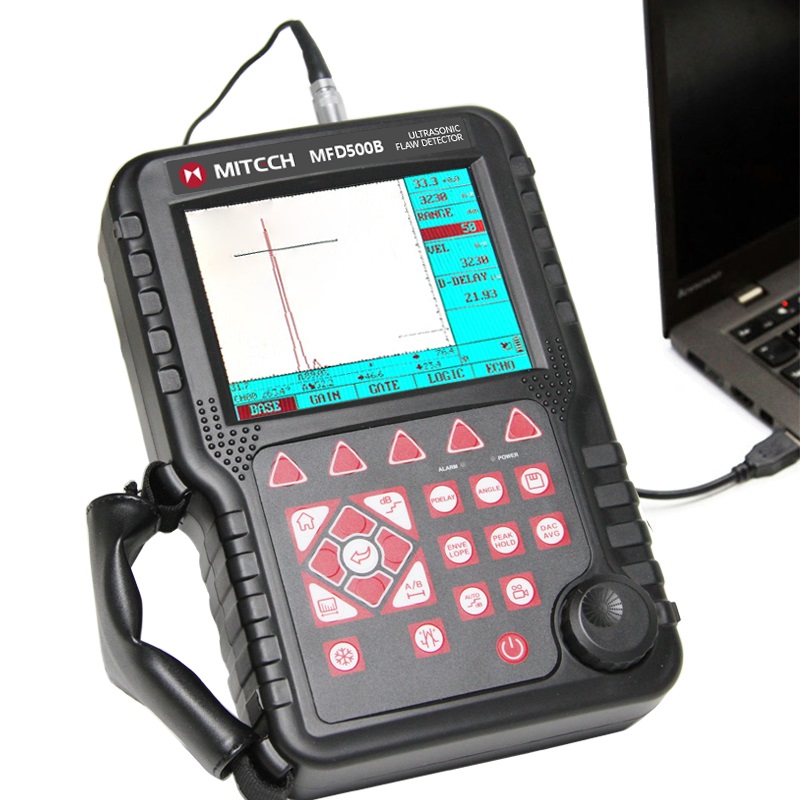

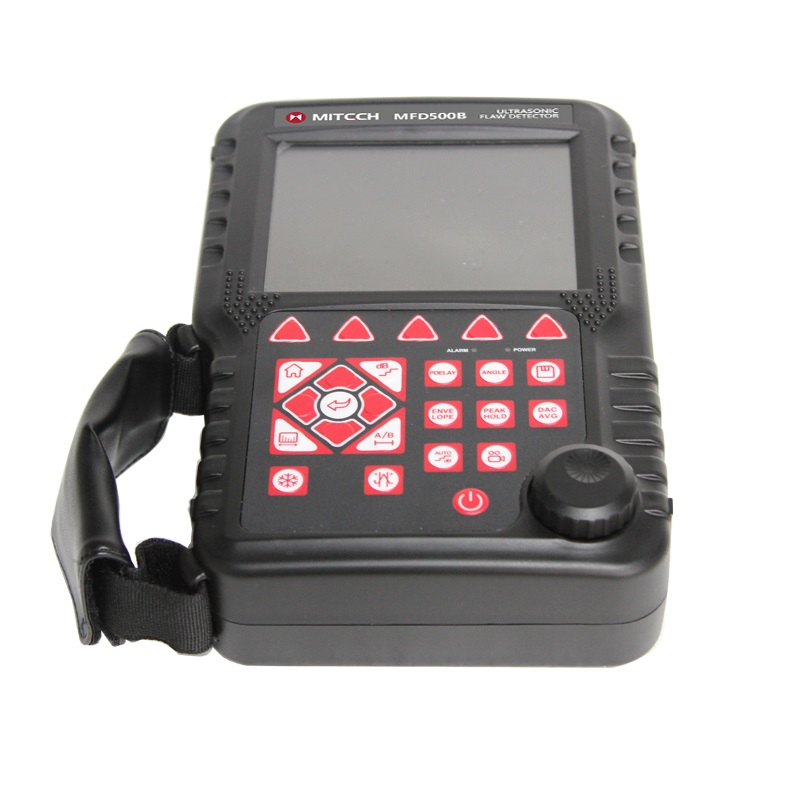

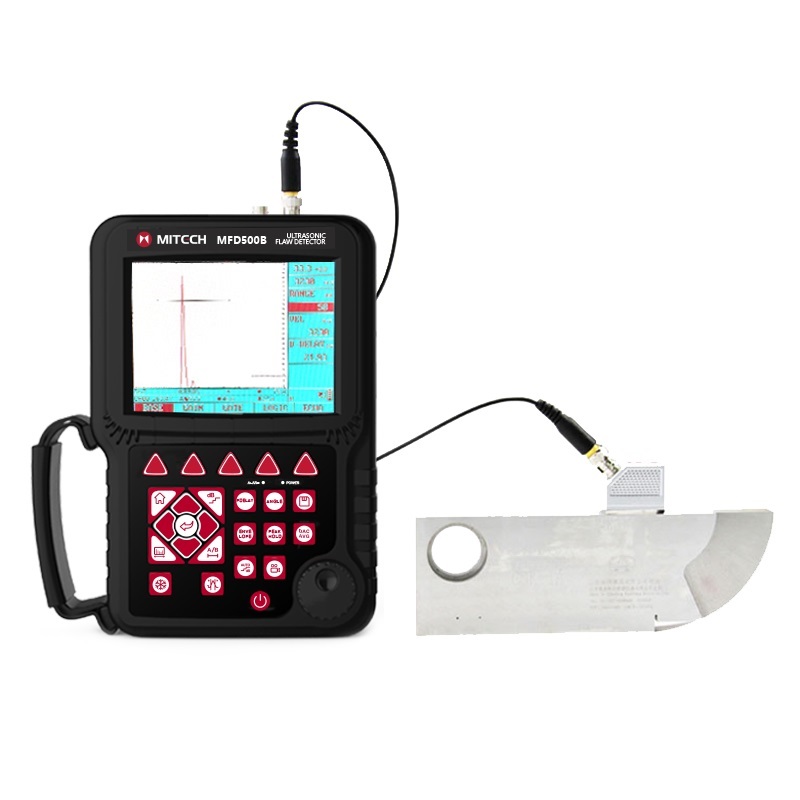

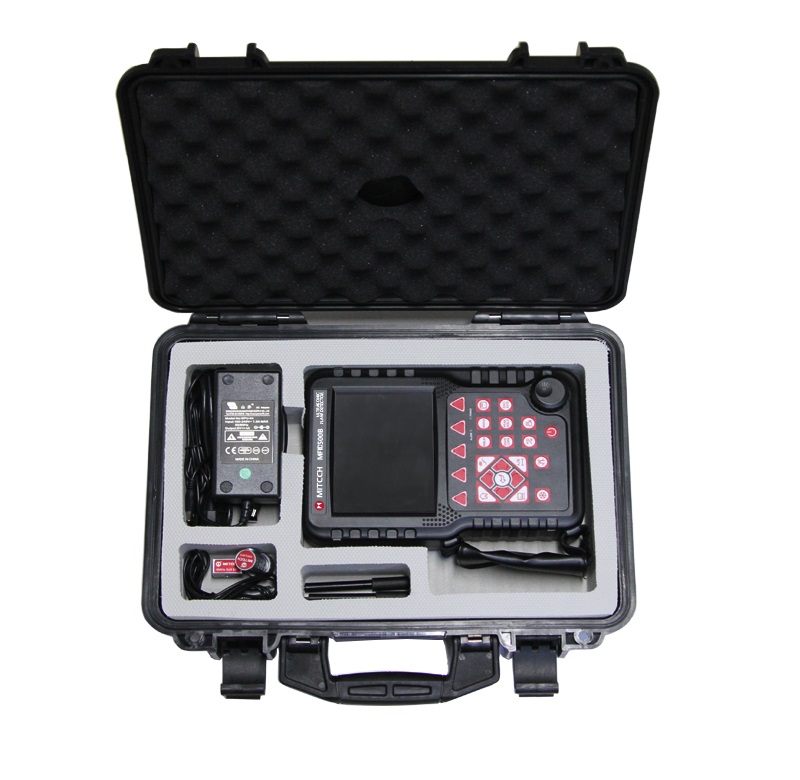

MFD500B Ultrasonic Flaw Detector
Key Features:
-
- High-Resolution Flaw Detection: Precise detection of cracks, inclusions, and material inconsistencies.
- Multiple Display Modes: A-scan, B-scan, and digital display for versatile inspection views.
- Adjustable Gain and Calibration Options: Customizable settings for optimized inspection control.
- Data Logging and Memory: Allows storage and review of past inspections for consistent quality control.
Applications:
-
- Non-destructive testing (NDT) in manufacturing, aerospace, and automotive industries
- Quality control for metals, ceramics, and structural components
- Maintenance inspections in construction and energy sectors
| Display Resolution | 320×240 pixels full digital TFT LCD |
| Blind Area | 5mm |
| Flaw Sizing | Automatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptance or rejection |
| Weld Figure Feature | Weld Figure feature can be enabled when detecting the weld parts using angle transducer |
| Auto-Calibration | Automated calibration of transducer zero offset and/or material velocity |
| Memory | Able to store, recall the A-Scan patterns and instrument settings |
| Flaw Locating | Live display Sound-path, Projection (surface distance), Depth, Amplitude |
| Defect Quantification | Directly display the result with dB unit |
| Curved Surface Correction | Used to measure the surface distance and depth of defect on a curved surface |
| DAC/AVG | Yes |
| AWS D1.1 | AWS (American Welding Society) standard |
| Crack Height Measuring | Measure and display the height of a crack found inside the workpiece |
| Video Recording | More than 10 minutes |
| B-Scan | Displays a graphical cross-section of the workpiece |
| Protection Level | IP54 |
| Communication Interface | High Speed USB2.0 port |
| DataPro Software | Yes |
| Working Language | Switch between Chinese and English |
| Total Weight | 6.0kg |
| Measuring Range | 0 - 9999 mm in steel |
| Bandwidth | 0.5 to 15MHz automatic matching according to the probe frequency |
| Dynamic Range | ≥ 36dB |
| Vertical Linear Deviation | ≤ 3.0% |
| Horizontal Linear Deviation | ≤ 0.2% |
| Resolution | > 40dB (5P14) |
| Sensitivity Leavings | > 60dB (flat-bottomed deep hole 200mmФ2) |
| Rejection | 0 to 80% Linear without affecting the linearity and gain |
| Noise Level | ≤ 10% |
| Probe Type | Straight beam, angle beam, dual element and through-transmit |
| Gates | Wave-getting Gate, Wave-losing Gate, Single Gate Reading, Dual Gate Reading |
| Power Supply | DC 9V |
| Working Time | ＞10 hours |
| Overall Dimensions | 263 × 170 × 61 mm |
| Operating Temperature | -10 to 50℃ |
| Relative Humidity | 20 - 95% |
| Pulse Energy | Low (300V), Medium (500V) and High (700V) selectable, suitable for various probes |
| Pulse Width | 0.1 - 0.512µs range with continuous adjustment to match the different frequency probes |
| Probe Damping | 100Ω, 200Ω, 400Ω selectable to meet different requirements for resolution and sensitivity |
| Sampling | 10 digits AD Converter at the sampling speed of 160MHz, waveform of highly fidelity |
| Rectification | Positive half wave, negative half wave, full wave, RF |
| Gate Reading | Optional for single gate and double gate reading mode, both peak and edge can trigger it |
| Gain | 0 dB to 110 dB adjustable in selectable steps 0.1 dB, 1 dB, 2dB and 6dB |

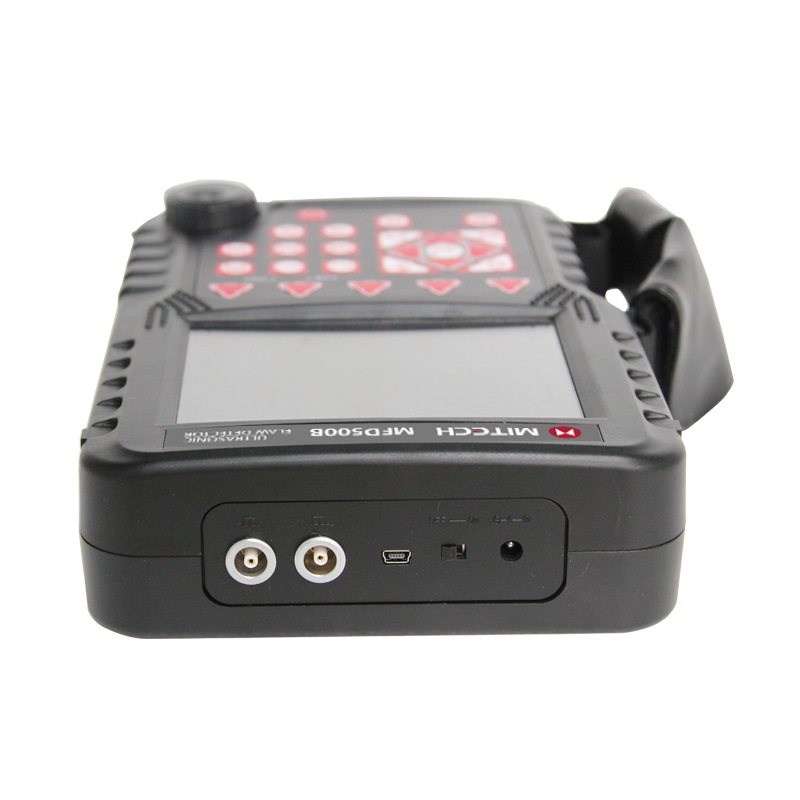

| Transducer Connections | BNC or LEMO |
