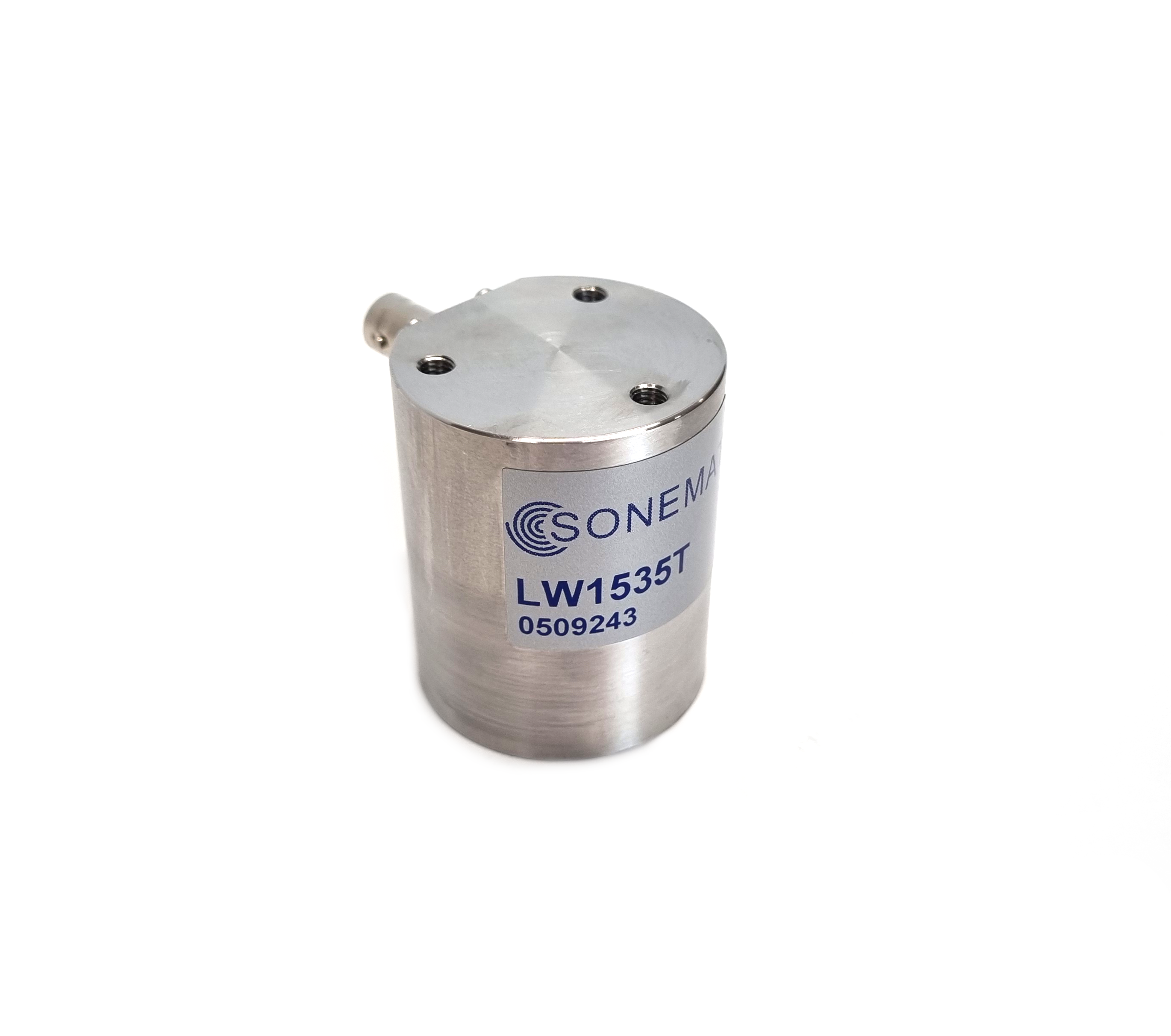

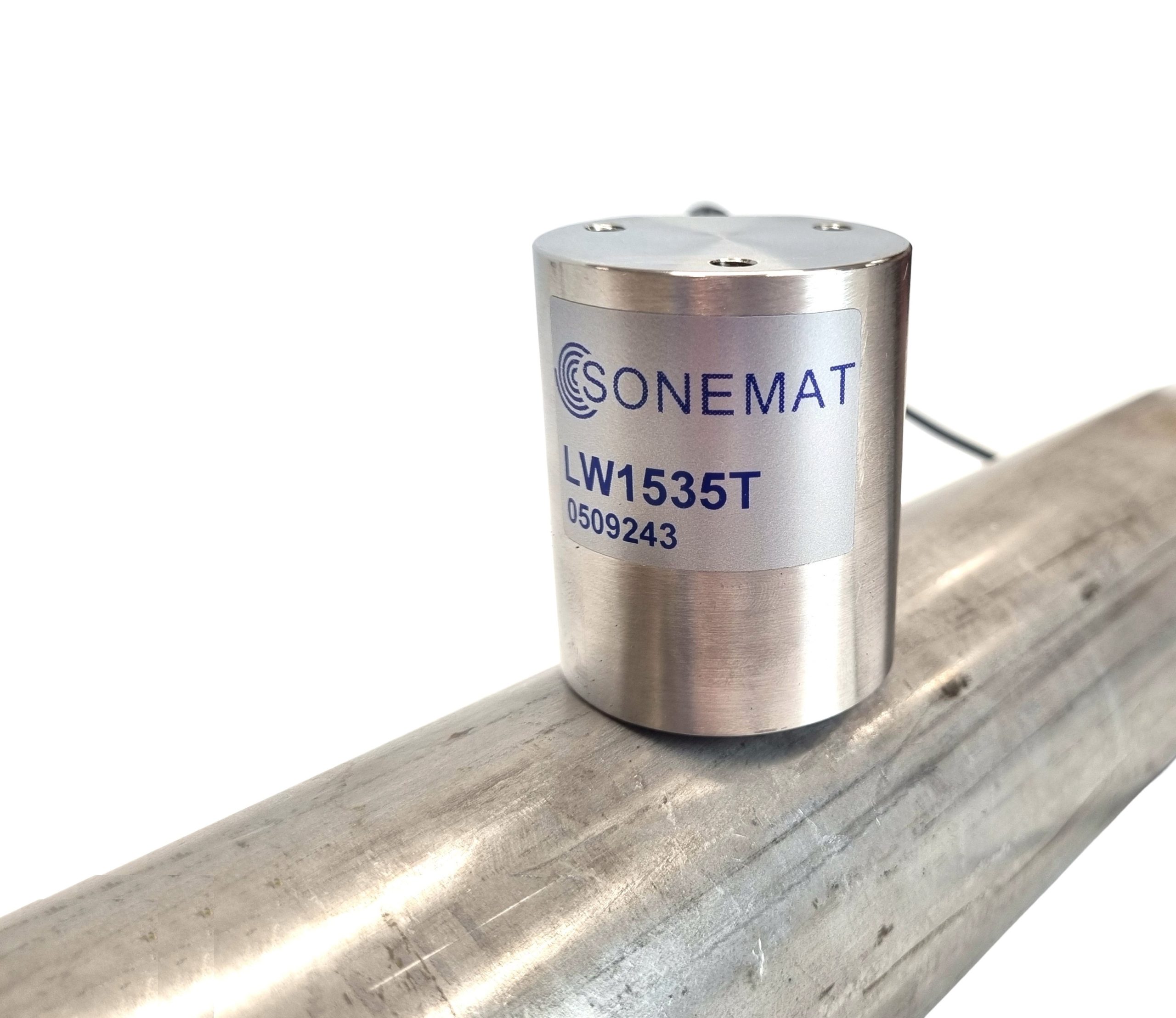

Longitudinal Wave EMAT
£950
Key Advantages and Features:
-
- Longitudinal Wave Generation: Produces broadband longitudinal waves with peak energy at 3-5 MHz, making it ideal for applications that require high sensitivity to thickness changes and flaw detection.
- Non-Contact and Couplant-Free: Requires no couplant, ensuring efficient testing even on rough surfaces and in confined spaces.
- Optimised for Conductive Materials: Operates effectively on conductive, non-magnetic materials, expanding its application range for non-destructive testing (NDT).
- Industrial Compatibility: Integrates with Sonemat’s PR5000 pulser-receiver and GS2020 EMAT Adapter for seamless operation with standard flaw detection setups, making it easy to deploy in both lab and field environments.
Applications:
-
- Thickness gauging and flaw detection in pipelines and storage tanks
- Corrosion monitoring in energy and petrochemical industries
- Inspection of boiler tubes and industrial components
| Probe Configuration | Pulse-Echo, can be used in pitch-catch with two probes |
| EMAT Working Principle | Lorentz force mechanism |
| Weight | 0.5kg |
| Dimensions | 55mm length x 45mm diameter, width with BNC socket 60mm |
| Operating Temperature | 0 - 80 °C |
| Working Voltage | 300 - 1000V pulse |
| Excitation Frequency | Broadband (spike) optimised for peak energy around 3-5 MHz |

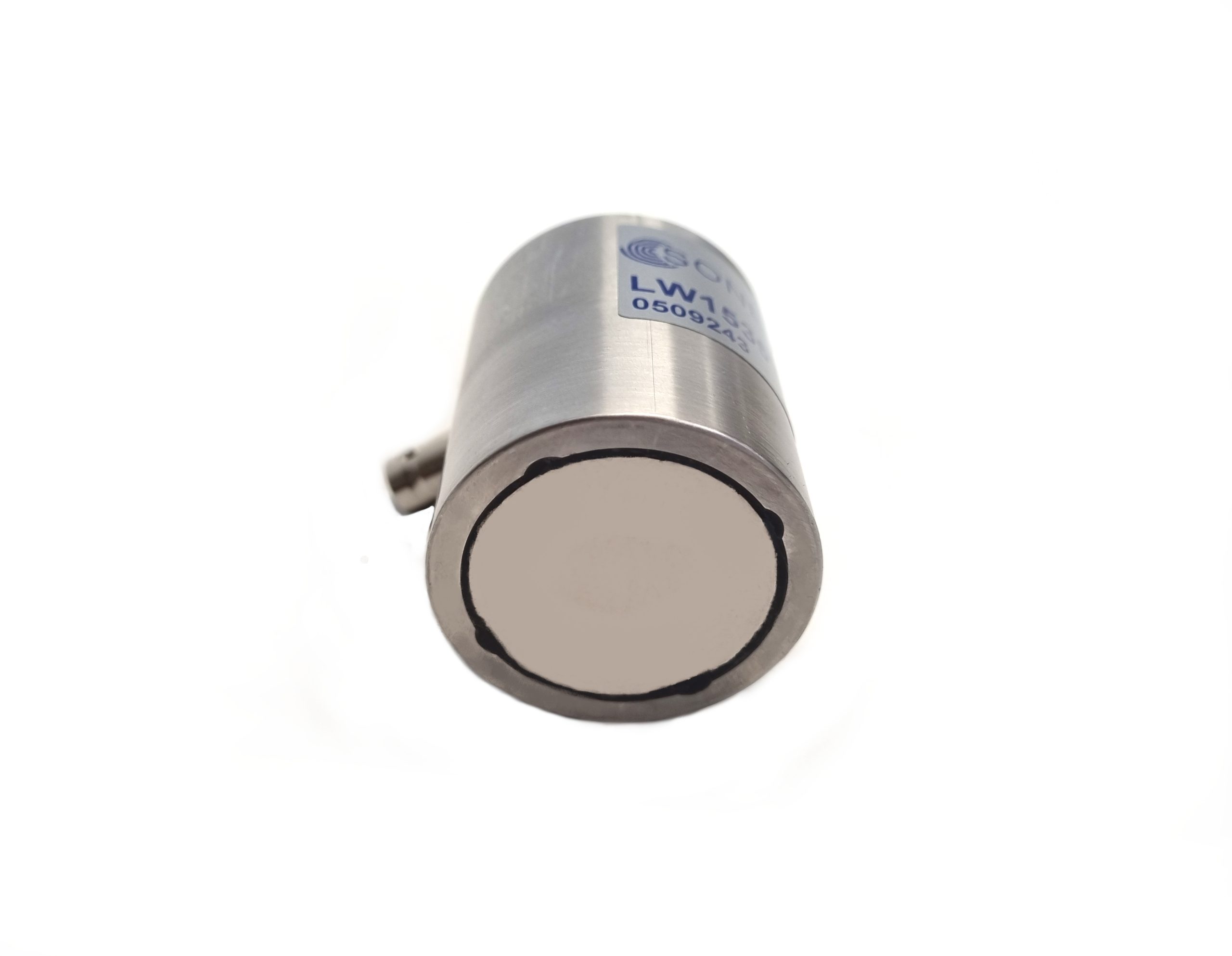

| Wear Face | Alumina ceramic, composite or metal can be used |
| Connections | BNC socket (50Ω) |
| Recommended Electronics (Driver and Amplifier) | Sonemat’s GS2020, PR5000 or PR5020 Contact us for more information |
| Options | High temperature and large lift-off variants are available - contact us for more information |
