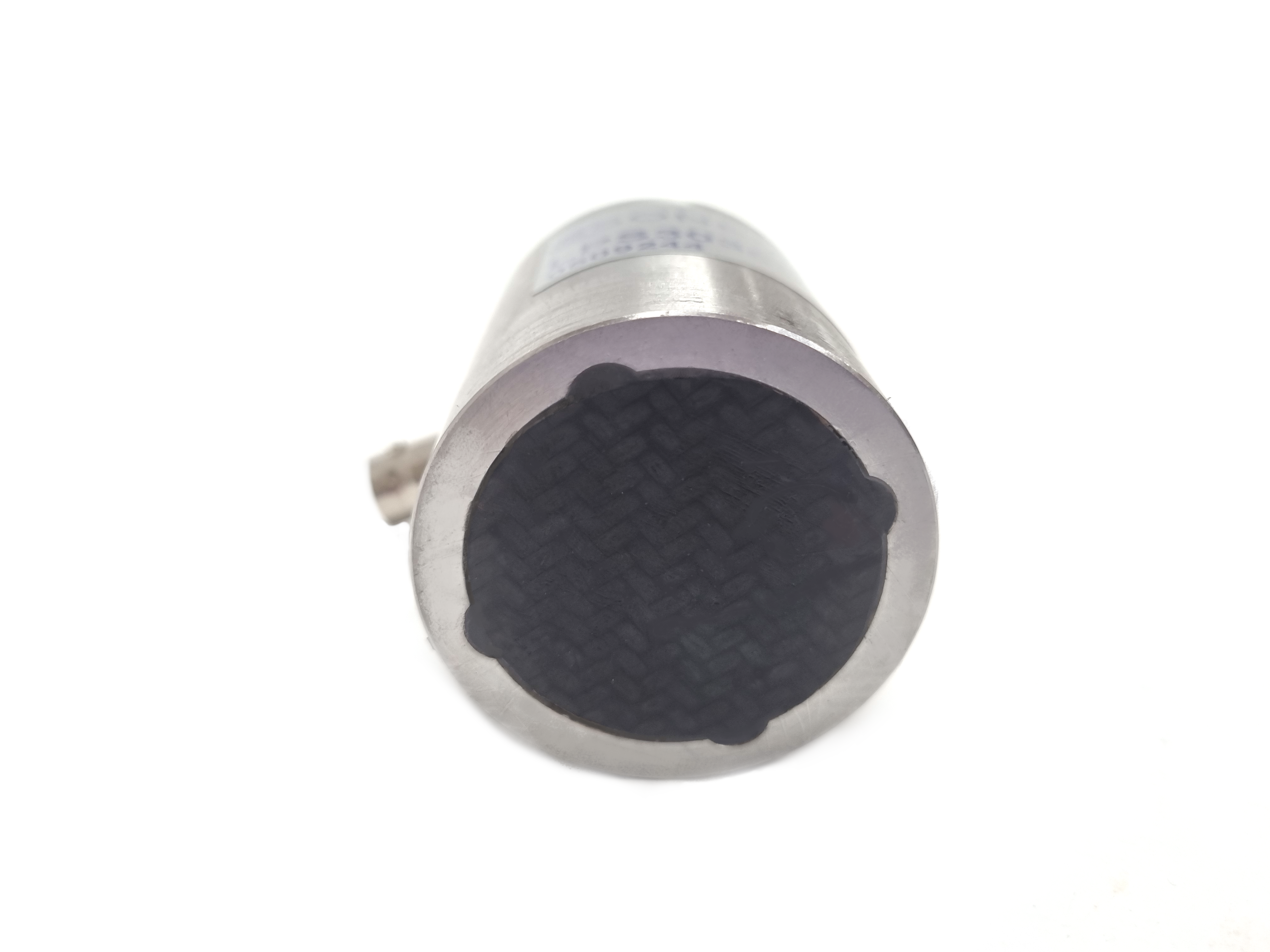

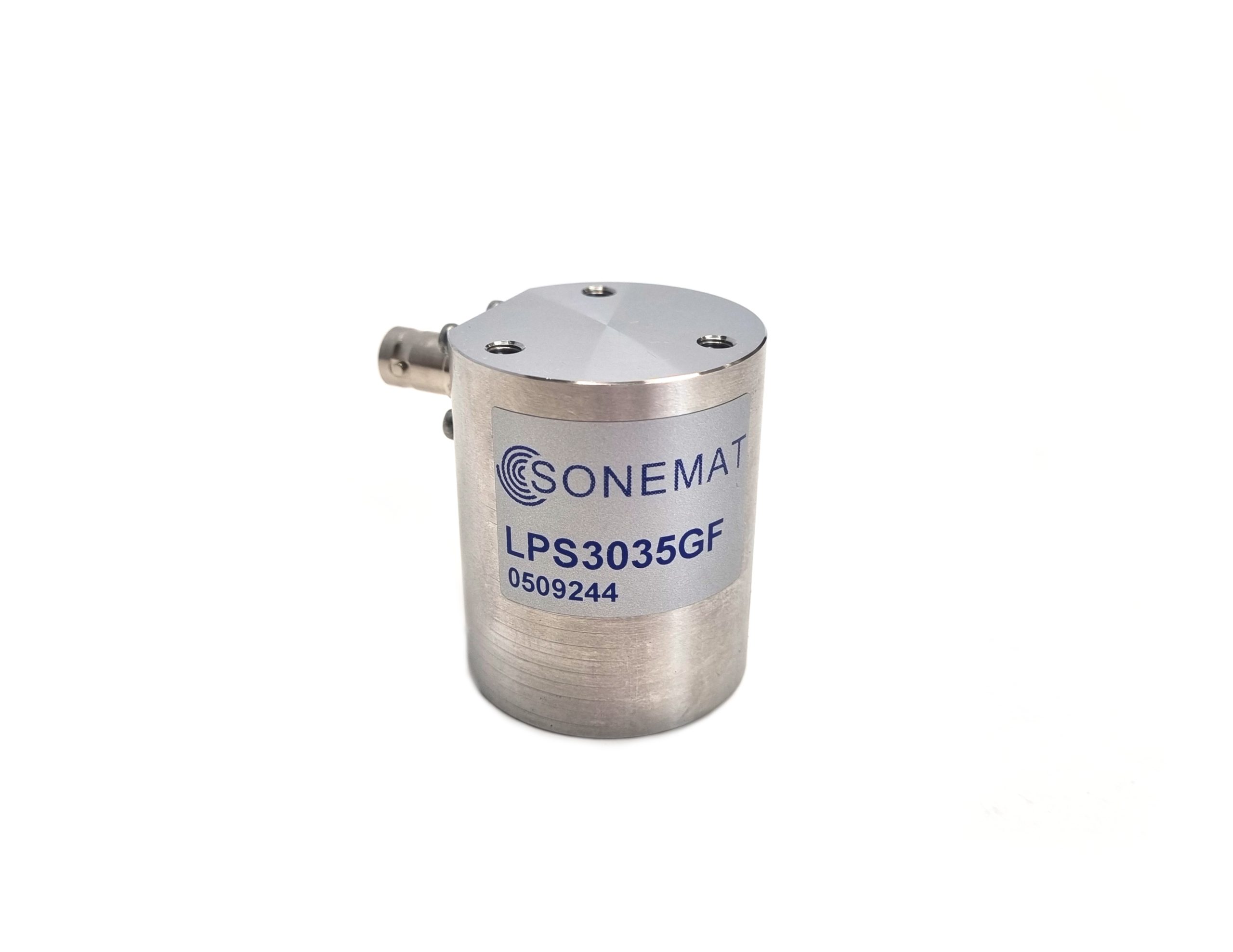

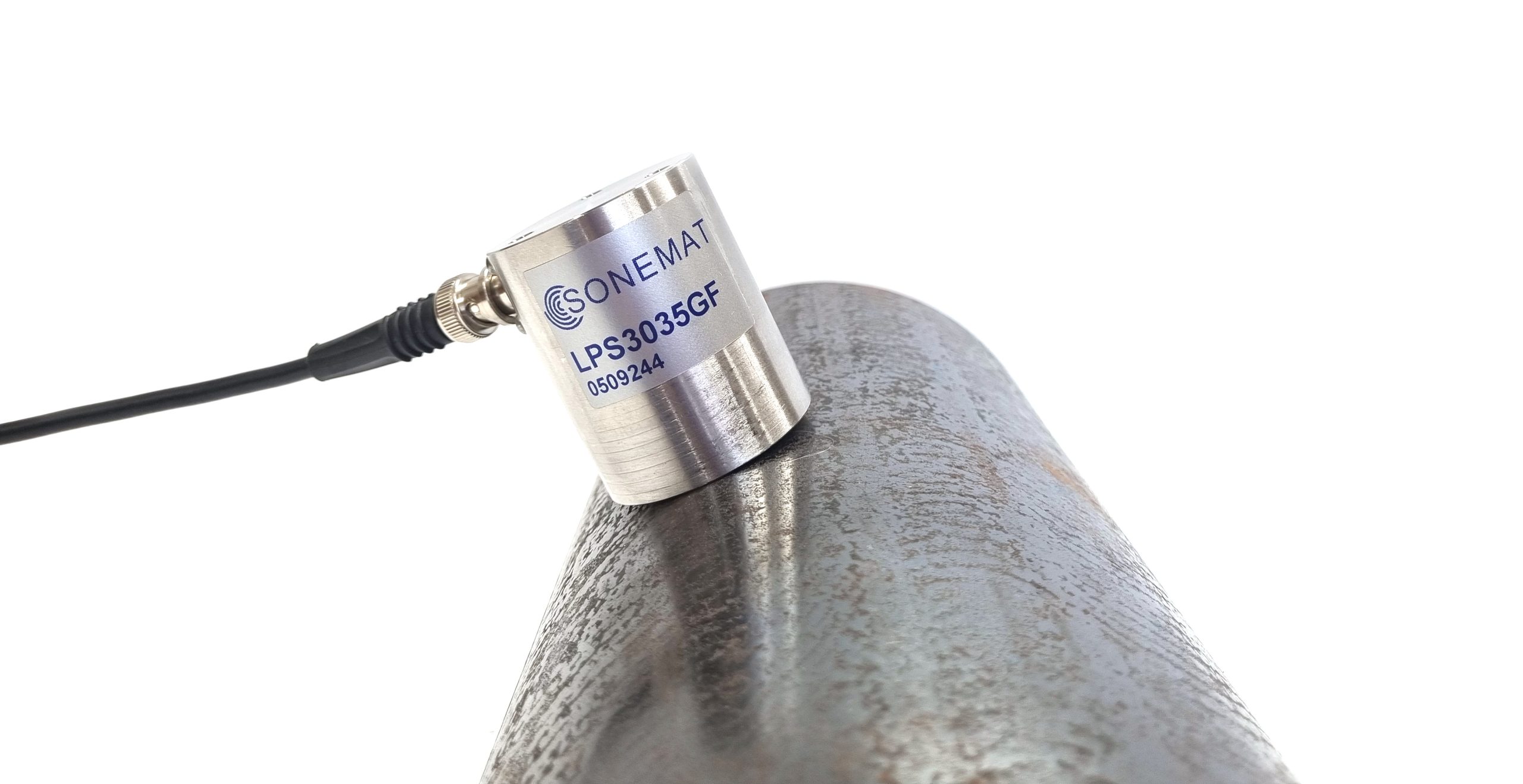

Linearly Polarised EMAT
£950
Key Advantages and Features:
-
- Linearly Polarised Shear Wave Generation: Produces bulk shear waves aligned along the BNC connector axis, allowing precise polarisation control for improved accuracy in material assessments.
- Non-Contact, Couplant-Free Operation: Ensures reliable performance without the need for couplants, making it ideal for rough surfaces and challenging inspection conditions.
- Optimized for Conductive and Magnetic Materials: Designed to function effectively on conductive or magnetostrictive samples, broadening its utility across various NDT tasks.
- Broad Compatibility: Integrates seamlessly with Sonemat’s GS2020, PR5000, and PR5020 systems, supporting both pulse-echo and pitch-catch configurations for versatile applications.
Applications:
-
- Thickness gauging and corrosion monitoring in pipelines and storage tanks
- Acoustic birefringence and crystallographic texture analysis in industrial components
- Non-destructive testing in high-stress sectors like energy and petrochemical
- Structural assessment and defect detection in conductive or magnetic materials
| Probe Configuration | Pulse-Echo, can be used in pitch-catch with two probes |
| Polarisation Direction | Parallel to BNC socket direction, as standard |
| EMAT Working Principle | Lorentz force mechanism - magnetostrictive effect (if sample is magnetostrictive) |
| Weight | 0.5kg |
| Dimensions | 55mm length x 45mm diameter, width with BNC socket 60mm |
| Operating Temperature | 0 - 80 °C |
| Working Voltage | 300 - 1000V pulse |
| Excitation Frequency | Broadband (spike) optimised for peak energy around 3-5 MHz |
| Wear Face | Composite (as standard, alumina ceramic can be used) |
| Connections | BNC socket (50Ω) |
| Magnet Type | Two Neodymium Iron Boride (NIB); field normal to sample |
| Recommended Electronics (Driver and Amplifier) | Sonemat’s GS2020, PR5000 or PR5020 - contact us for more information |
| Options | High temperature and large lift-off variants are available - contact us for more information |
High Temperature EMAT – 550°C
The HWS2220-VC High Temperature EMAT is designed for non-contact shear wave inspections on components up to 550°C without cooling. Utilising a magnetostrictive mechanism, this EMAT generates radially polarised bulk shear waves with robust signal strength on magnetic and magnetostrictive materials, making it ideal for applications in extreme environments such as energy generation, petrochemical, and oil and gas. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, it is optimised for thickness gauging, flaw detection, and material analysis.
High Temperature EMAT – 200°C
The HWS2225-HT High Temperature EMAT is a robust shear wave transducer designed for pulse-echo inspections on conductive and magnetic components up to 200°C. Featuring a radially polarised design with a 3-5 MHz broadband frequency range, this EMAT operates without active cooling and provides consistent, non-contact performance, making it ideal for thickness gauging, flaw detection, and material analysis in industrial settings. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, it is an essential tool for high-temperature NDT applications.
Water-cooled EMAT – 1000°C
The HWS2235-WCT is a high-temperature, water-cooled shear wave EMAT engineered for non-destructive testing on components reaching up to 1000°C. Featuring water-cooling to maintain optimal signal, this radially polarised EMAT is ideal for applications requiring pulse-echo testing on hot metallic and magnetic surfaces. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, the HWS2235-WCT is a reliable solution for precise, high-temperature inspections across energy, petrochemical, and industrial sectors.
