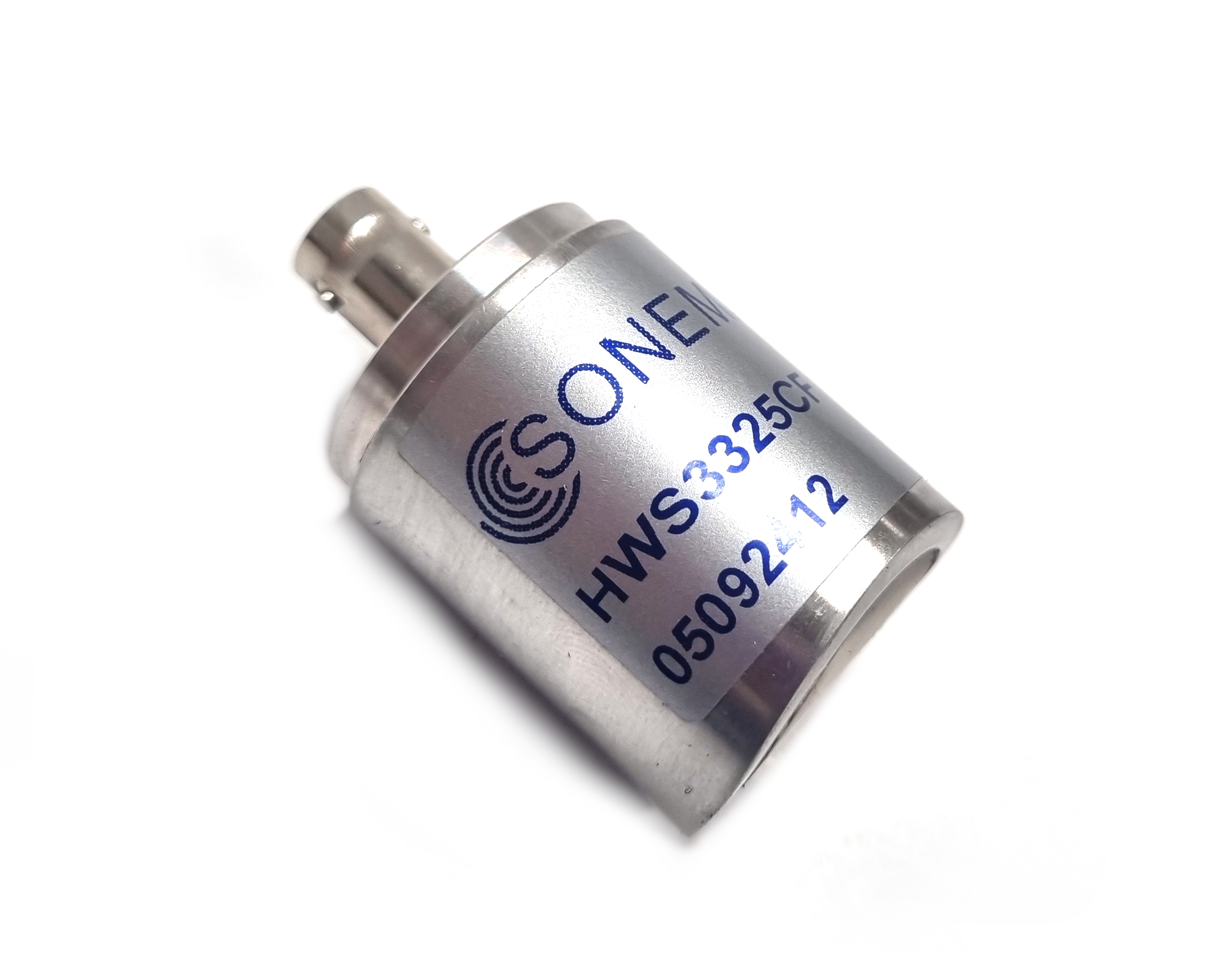

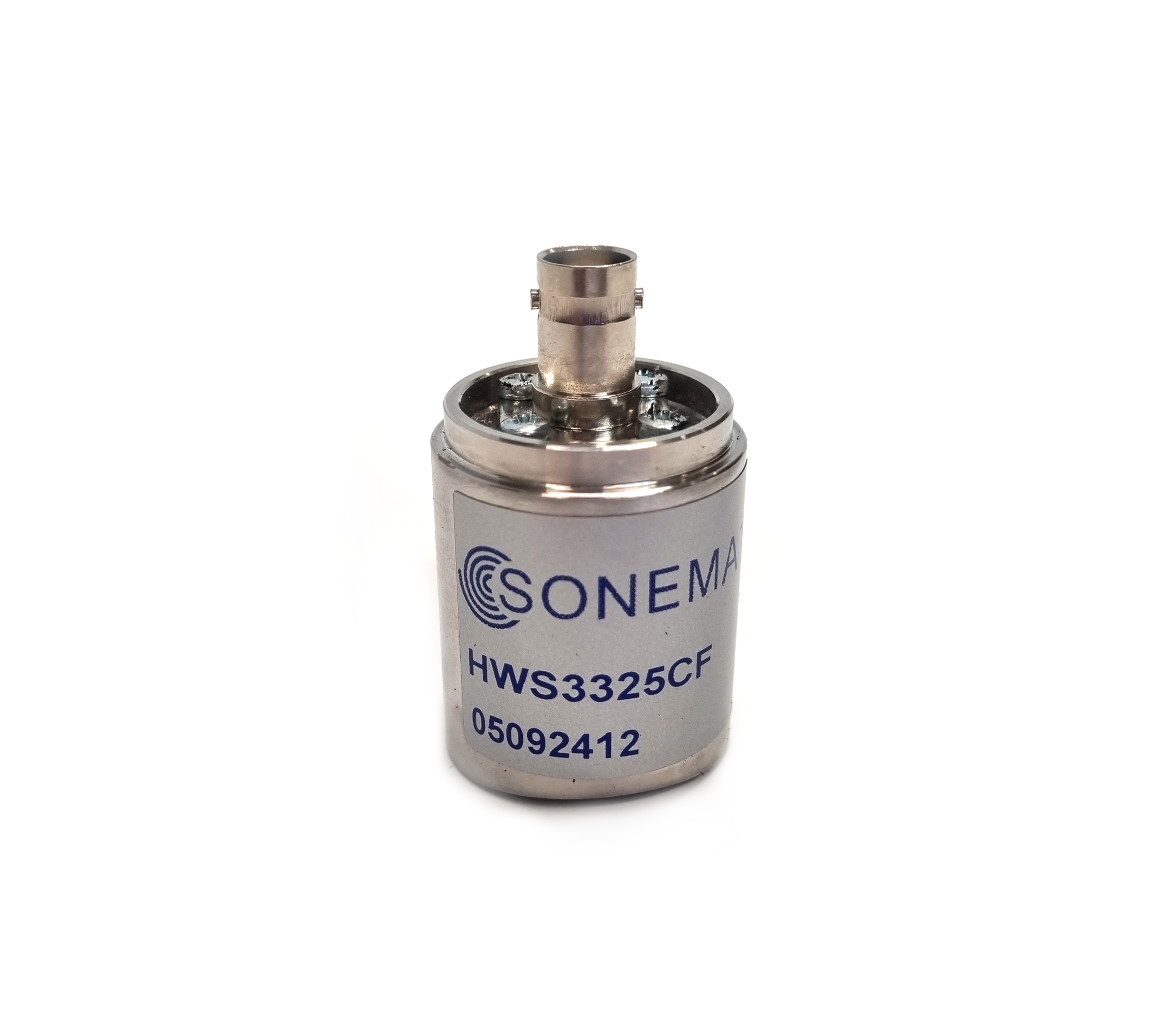

Internal Pipe EMAT
£1200
Key Advantages and Features:
-
- Curved Face for Internal Pipe Inspections: Engineered with a curved front face to fit internal pipe surfaces, ensuring accurate results in internal pipeline testing.
- High-Sensitivity Shear Wave Generation: Operates at 3-5 MHz to produce clear, reliable shear wave signals, optimizing it for detailed flaw detection and thickness measurements.
- Non-Contact and Couplant-Free: Functions effectively without couplants, making it suitable for rough surfaces and challenging inspection conditions.
- Broad Compatibility: Works seamlessly with Sonemat’s GS2020, PR5000, and PR5020 electronics for pulse-echo and pitch-catch setups, providing versatile application options.
Applications:
-
- Thickness gauging and flaw detection in internal pipeline inspections
- Corrosion monitoring within industrial pipes and vessels
- Acoustic birefringence and crystallographic texture analysis
- Non-contact inspection for energy, oil, gas, and petrochemical industries
| Probe Configuration | Pulse-Echo, can be used in pitch-catch with two probes |
| EMAT Working Principle | Lorentz force mechanism - magnetostrictive effect (if sample is magnetostrictive) |
| Weight | 0.2kg |
| Dimensions | 40mm (53mm with BNC) length x 31mm diameter |
| Operating Temperature | 0 - 80 °C |
| Working Voltage | 300 - 1000V pulse |
| Excitation Frequency | Broadband (spike) optimised for peak energy around 3-5 MHz |
| Wear Face | Curved alumina ceramic, can be made custom to fit different pipe diameters; please contact us for more information |
| Connections | BNC socket (50Ω) |
| Magnet Type | Neodymium Iron Boride (NIB); field normal to sample |
| Recommended Electronics (Driver and Amplifier) | Sonemat’s GS2020, PR5000 or PR5020; pleases contact us for more information |
High Temperature EMAT – 550°C
The HWS2220-VC High Temperature EMAT is designed for non-contact shear wave inspections on components up to 550°C without cooling. Utilising a magnetostrictive mechanism, this EMAT generates radially polarised bulk shear waves with robust signal strength on magnetic and magnetostrictive materials, making it ideal for applications in extreme environments such as energy generation, petrochemical, and oil and gas. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, it is optimised for thickness gauging, flaw detection, and material analysis.
High Temperature EMAT – 200°C
The HWS2225-HT High Temperature EMAT is a robust shear wave transducer designed for pulse-echo inspections on conductive and magnetic components up to 200°C. Featuring a radially polarised design with a 3-5 MHz broadband frequency range, this EMAT operates without active cooling and provides consistent, non-contact performance, making it ideal for thickness gauging, flaw detection, and material analysis in industrial settings. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, it is an essential tool for high-temperature NDT applications.
Water-cooled EMAT – 1000°C
The HWS2235-WCT is a high-temperature, water-cooled shear wave EMAT engineered for non-destructive testing on components reaching up to 1000°C. Featuring water-cooling to maintain optimal signal, this radially polarised EMAT is ideal for applications requiring pulse-echo testing on hot metallic and magnetic surfaces. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, the HWS2235-WCT is a reliable solution for precise, high-temperature inspections across energy, petrochemical, and industrial sectors.
Standard delivery via DHL courier. Custom delivery options available upon request.
