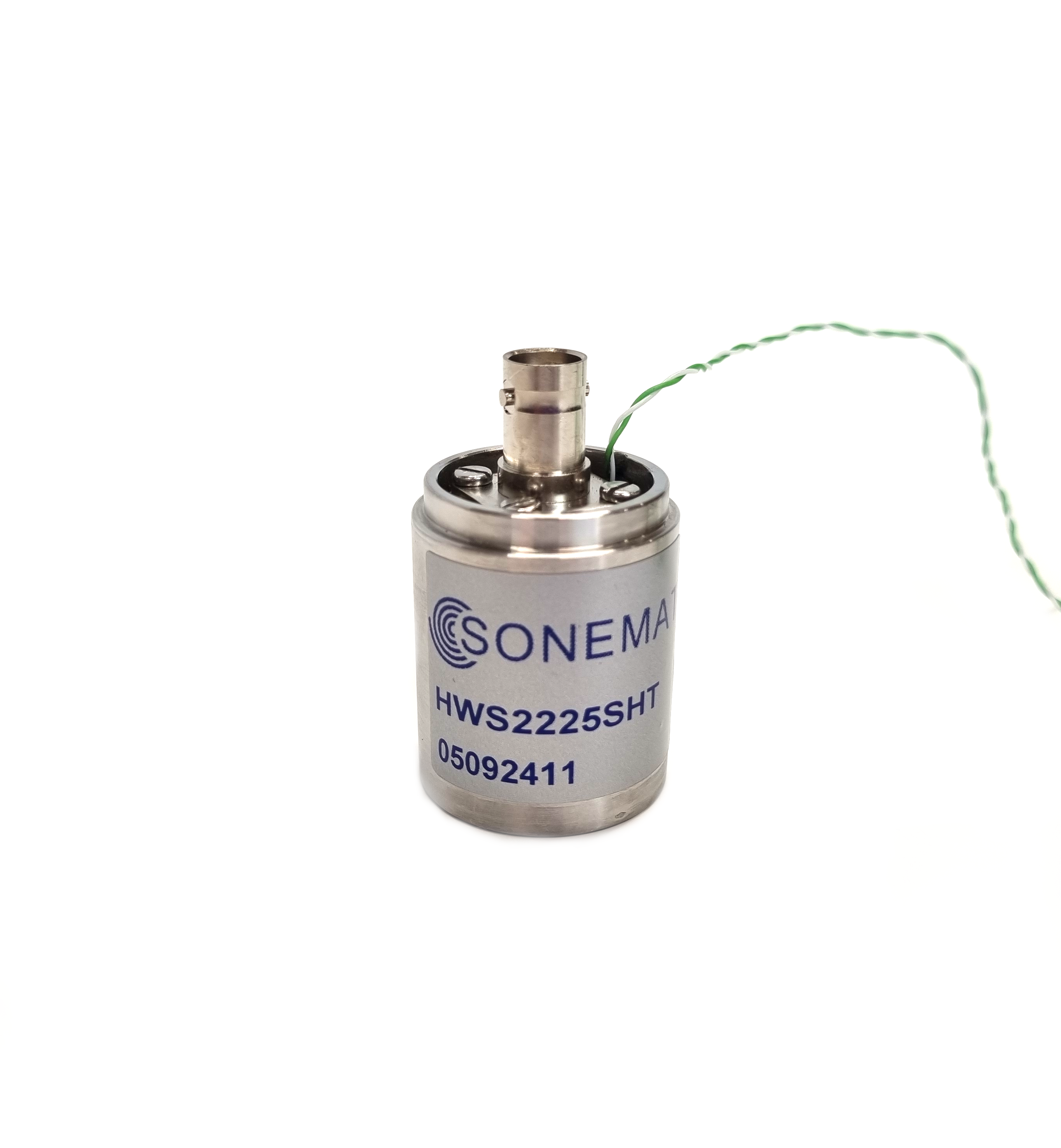

High Temperature EMAT - 200°C
£950
Key Advantages and Features:
-
- High-Temperature Operation: Built to withstand temperatures up to 200°C without the need for active cooling, making it suitable for challenging environments.
- Broadband Shear Wave Generation: Produces radially polarised shear waves at 3-5 MHz, providing high-sensitivity data for material assessments and flaw detection.
- Integrated Temperature Monitoring: Equipped with a K-type thermocouple behind the front face, allowing accurate temperature tracking during inspections.
- Non-Contact and Couplant-Free: Performs effectively without couplants, maintaining reliability on rough or uneven surfaces for simplified operation in the field.
Applications:
-
- Thickness gauging and flaw detection in pipelines, tanks, and vessels
- Corrosion and defect monitoring in boiler tubes and industrial components
- Acoustic birefringence and crystallographic texture analysis
- Non-destructive testing in high-temperature environments across energy and petrochemical industries
| Probe Configuration | Pulse-Echo, can be used in pitch-catch with two probes |
| EMAT Working Principle | Lorentz force mechanism - magnetostrictive effect (if sample is magnetostrictive) |
| Weight | 0.2kg |
| Dimensions | 40mm (55mm with BNC) length x 31mm diameter |
| Operating Temperature | 0 - 200 °C (with K-type thermocouple; temp behind front face) |
| Working Voltage | 300 - 1000V pulse |
| Excitation Frequency | Broadband (spike) optimised for peak energy around 3-5 MHz |

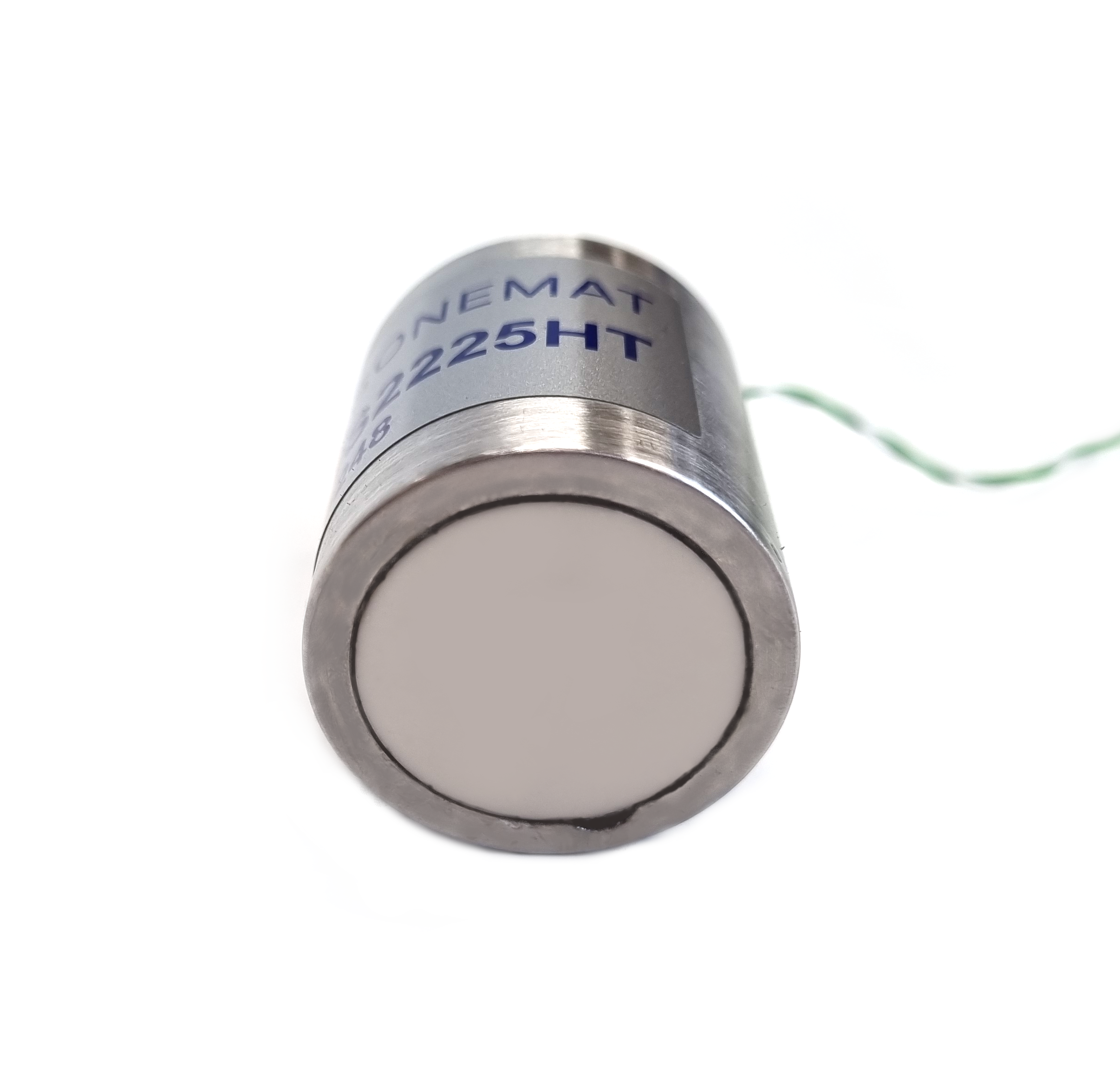

| Wear Face | Alumina ceramic |
| Connections | BNC socket (50Ω) |
| Magnet Type | Field normal to sample |
| Recommended Electronics (Driver and Amplifier) | Sonemat’s GS2020, PR5000 or PR5020 - contact us for more information |
| Options | Thermocouple type can be changed according to customer specifications |
High Temperature EMAT – 550°C
The HWS2220-VC High Temperature EMAT is designed for non-contact shear wave inspections on components up to 550°C without cooling. Utilising a magnetostrictive mechanism, this EMAT generates radially polarised bulk shear waves with robust signal strength on magnetic and magnetostrictive materials, making it ideal for applications in extreme environments such as energy generation, petrochemical, and oil and gas. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, it is optimised for thickness gauging, flaw detection, and material analysis.
Water-cooled EMAT – 1000°C
The HWS2235-WCT is a high-temperature, water-cooled shear wave EMAT engineered for non-destructive testing on components reaching up to 1000°C. Featuring water-cooling to maintain optimal signal, this radially polarised EMAT is ideal for applications requiring pulse-echo testing on hot metallic and magnetic surfaces. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, the HWS2235-WCT is a reliable solution for precise, high-temperature inspections across energy, petrochemical, and industrial sectors.
Internal Pipe EMAT
The HWS3325-CF Internal Pipe Shear Wave EMAT is a precision-engineered, non-contact probe designed for internal pipe surface inspections. Featuring a curved front face tailored for optimal contact within pipes, this radially polarised EMAT operates at 3-5 MHz, making it ideal for high-sensitivity, pulse-echo testing applications. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, the HWS3325-CF is built to deliver accurate thickness gauging, flaw detection, and corrosion monitoring in pipelines and industrial vessels.
