Radially Polarised Shear Wave EMAT
£650
Key Advantages and Features:
-
- High-Performance Shear Wave Generation: Generates broad shear waves with peak energy at 3-5 MHz, providing clear and precise data for material assessments.
- No Couplant Required: Operates effectively without couplants and maintains performance even on rough or uneven surfaces, streamlining inspection processes.
- Broad Compatibility: Designed for use with Sonemat’s GS2020 adaptor and PR5000/PR5020 pulser-receiver systems, it integrates seamlessly with existing setups.

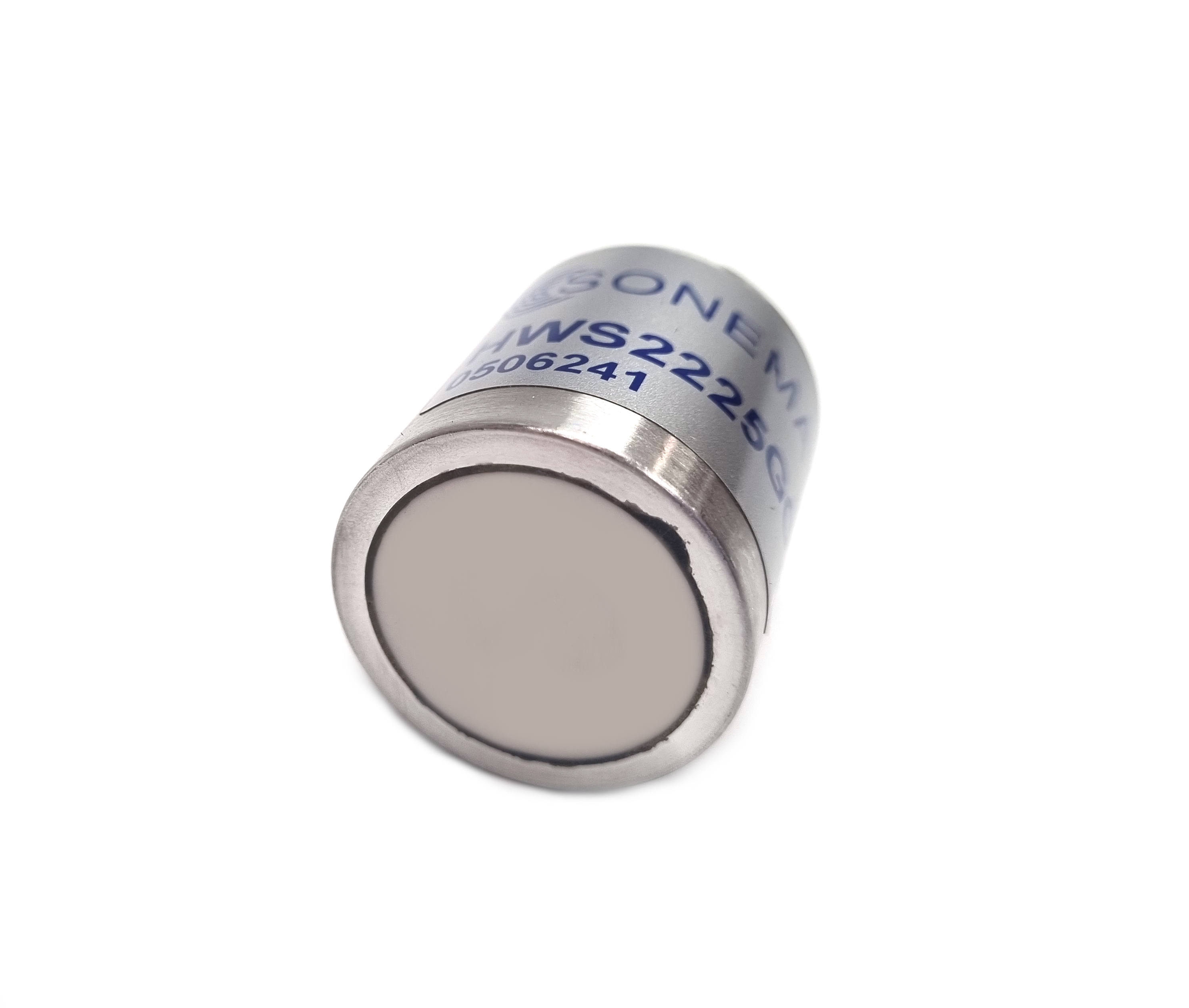

- Durable Construction: Built with an alumina ceramic wear face and a Neodymium magnet, the HWS2225-GC is reliable in demanding environments and offers a working lift-off up to 2mm.
Applications:
-
- Thickness gauging and flaw detection in pipelines and vessels
- Corrosion monitoring and defect analysis in high-stress industrial components
- Acoustic birefringence and crystallographic texture assessment
- Non-destructive testing in energy, petrochemical, and aerospace sectors
| Probe Configuration | Pulse-Echo, can be used in pitch-catch with two probes |
| EMAT Working Principle | Lorentz force mechanism - Magnetostrictive effect (if sample is magnetostrictive) |
| Weight | 0.2kg |

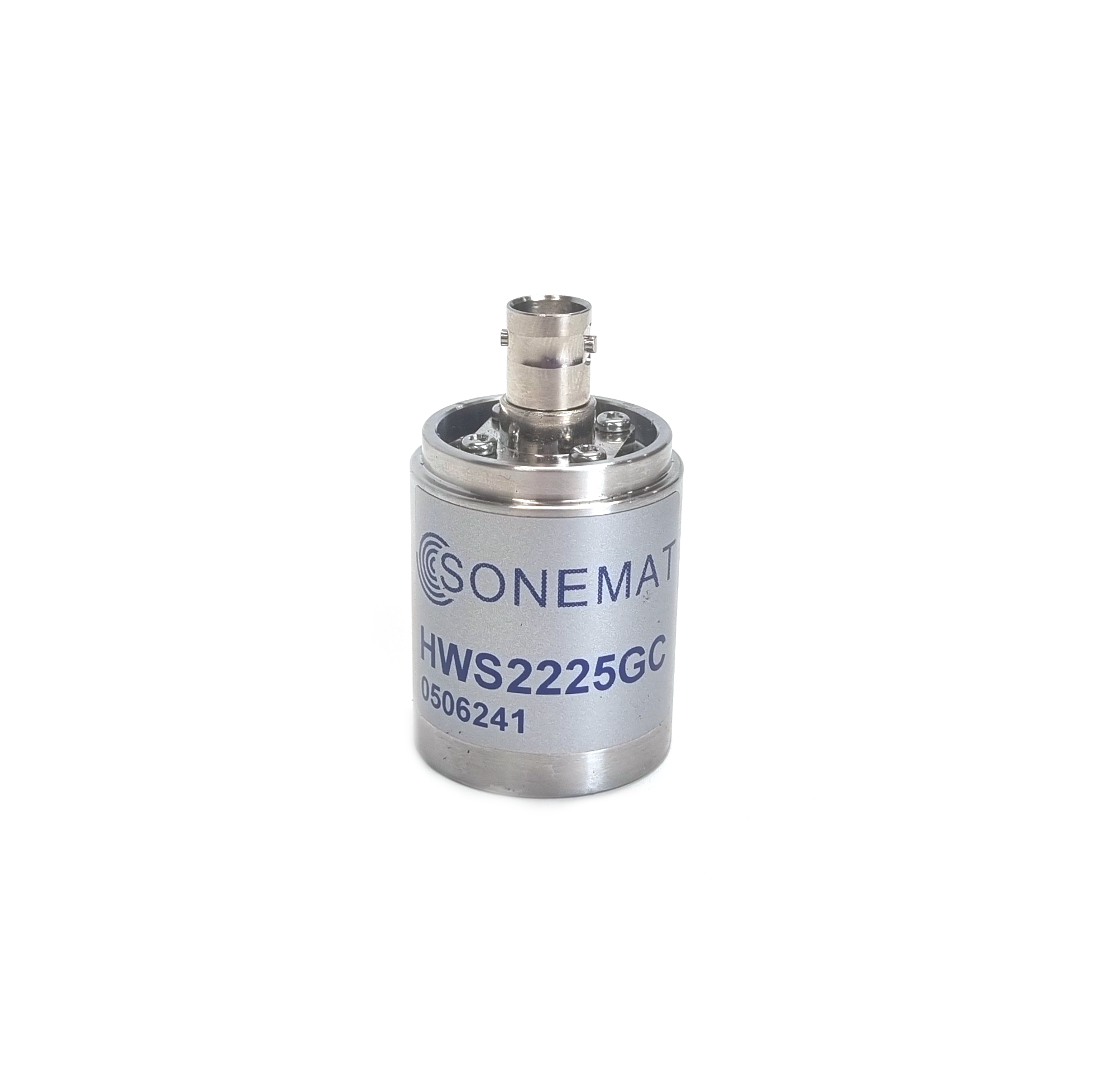

| Dimensions | 40mm (55mm with BNC) length x 31mm diameter |
| Operating Temp. | 0 - 80 °C |
| Working Voltage | 300 - 1000V pulse |
| Excitation Frequency | Broadband (spike) optimised for peak energy around 3-5 MHz |
| Wear Face | Alumina ceramic (as standard, composite can be used) |
| Connections | BNC socket (50Ω) |
| Magnet Type | Neodymium Iron Boride (NIB); field normal to sample |
| Recommended Electronics (Driver and Amplifier) | Sonemat’s GS2020, PR5000 or PR5020 - contact us for more information |
| Options | High temperature and large lift-off variants are available - contact us for more information |
High Temperature EMAT – 550°C
The HWS2220-VC High Temperature EMAT is designed for non-contact shear wave inspections on components up to 550°C without cooling. Utilising a magnetostrictive mechanism, this EMAT generates radially polarised bulk shear waves with robust signal strength on magnetic and magnetostrictive materials, making it ideal for applications in extreme environments such as energy generation, petrochemical, and oil and gas. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, it is optimised for thickness gauging, flaw detection, and material analysis.
High Temperature EMAT – 200°C
The HWS2225-HT High Temperature EMAT is a robust shear wave transducer designed for pulse-echo inspections on conductive and magnetic components up to 200°C. Featuring a radially polarised design with a 3-5 MHz broadband frequency range, this EMAT operates without active cooling and provides consistent, non-contact performance, making it ideal for thickness gauging, flaw detection, and material analysis in industrial settings. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, it is an essential tool for high-temperature NDT applications.
Water-cooled EMAT – 1000°C
The HWS2235-WCT is a high-temperature, water-cooled shear wave EMAT engineered for non-destructive testing on components reaching up to 1000°C. Featuring water-cooling to maintain optimal signal, this radially polarised EMAT is ideal for applications requiring pulse-echo testing on hot metallic and magnetic surfaces. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, the HWS2235-WCT is a reliable solution for precise, high-temperature inspections across energy, petrochemical, and industrial sectors.
