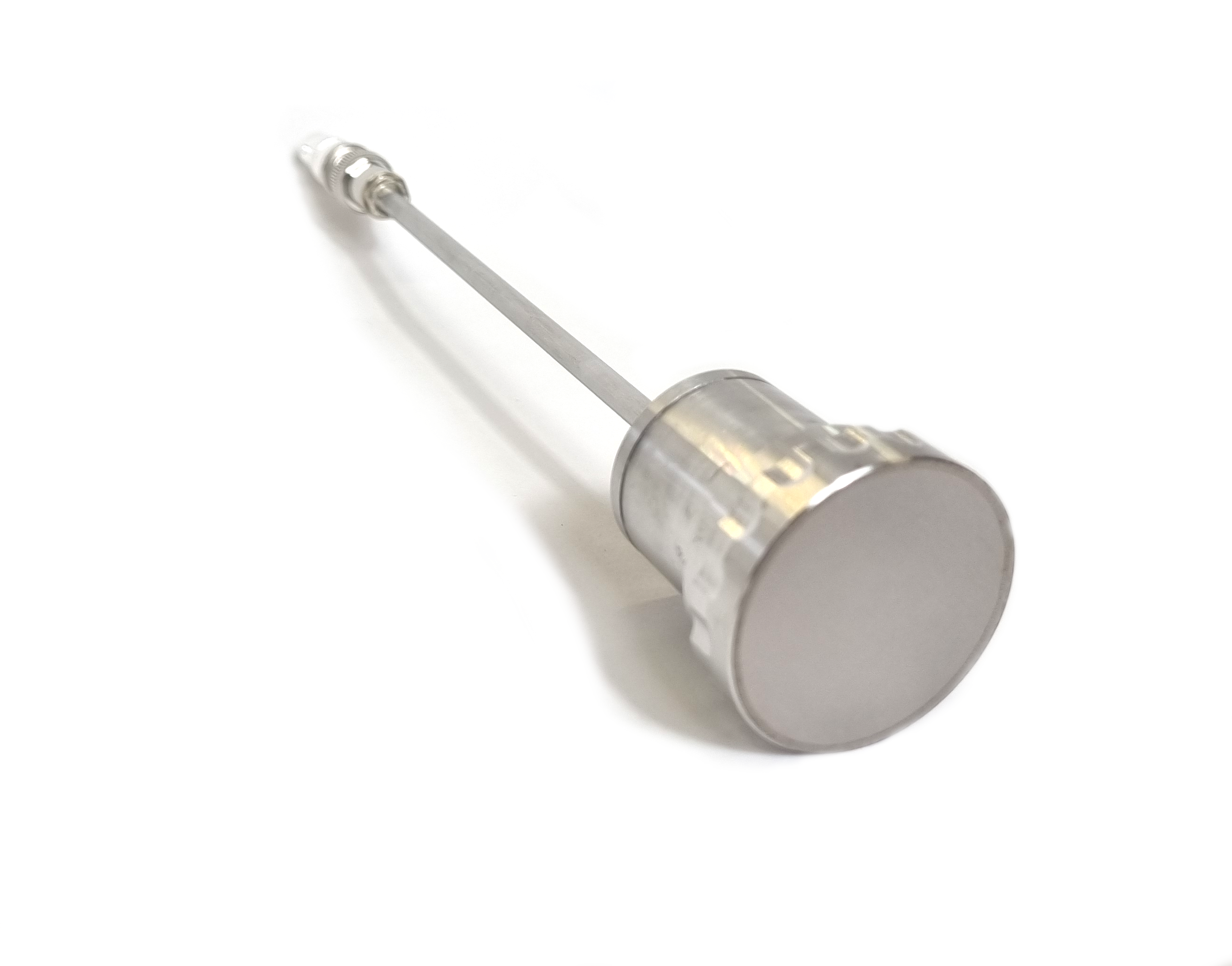

High Temperature EMAT - 550°C
£1750
Key Advantages and Features:
-
- High-Temperature Operation: Operates continuously up to 550°C without cooling, making it suitable for extreme testing conditions.
- Magnetostrictive Signal Enhancement: Designed to utilize the magnetostrictive effect on magnetic materials, delivering strong signals even on oxidised surfaces.
- Broadband Frequency for Shear Wave Generation: Optimized for 3-5 MHz, providing high-sensitivity data for flaw detection and material characterisation.
- Wear Face Protection Options: Includes detachable wear faces to protect the EMAT during high-impact inspections; wear faces reduce ultrasonic signal slightly but add durability.
Applications:
-
- Thickness gauging and defect detection in high-temperature pipelines and industrial vessels
- Corrosion monitoring in energy and petrochemical sectors
- Acoustic birefringence and crystallographic texture analysis
- Long-term inspection of high-temperature components without cooling
| Probe Configuration | Pulse-Echo, can be used in pitch-catch with two probes |
| EMAT Working Principle | Magnetostrictive effect provides the best signals, such as on magnetic steels or magnetite (iron oxide, black) coated steels |
| Weight | 0.3kg |

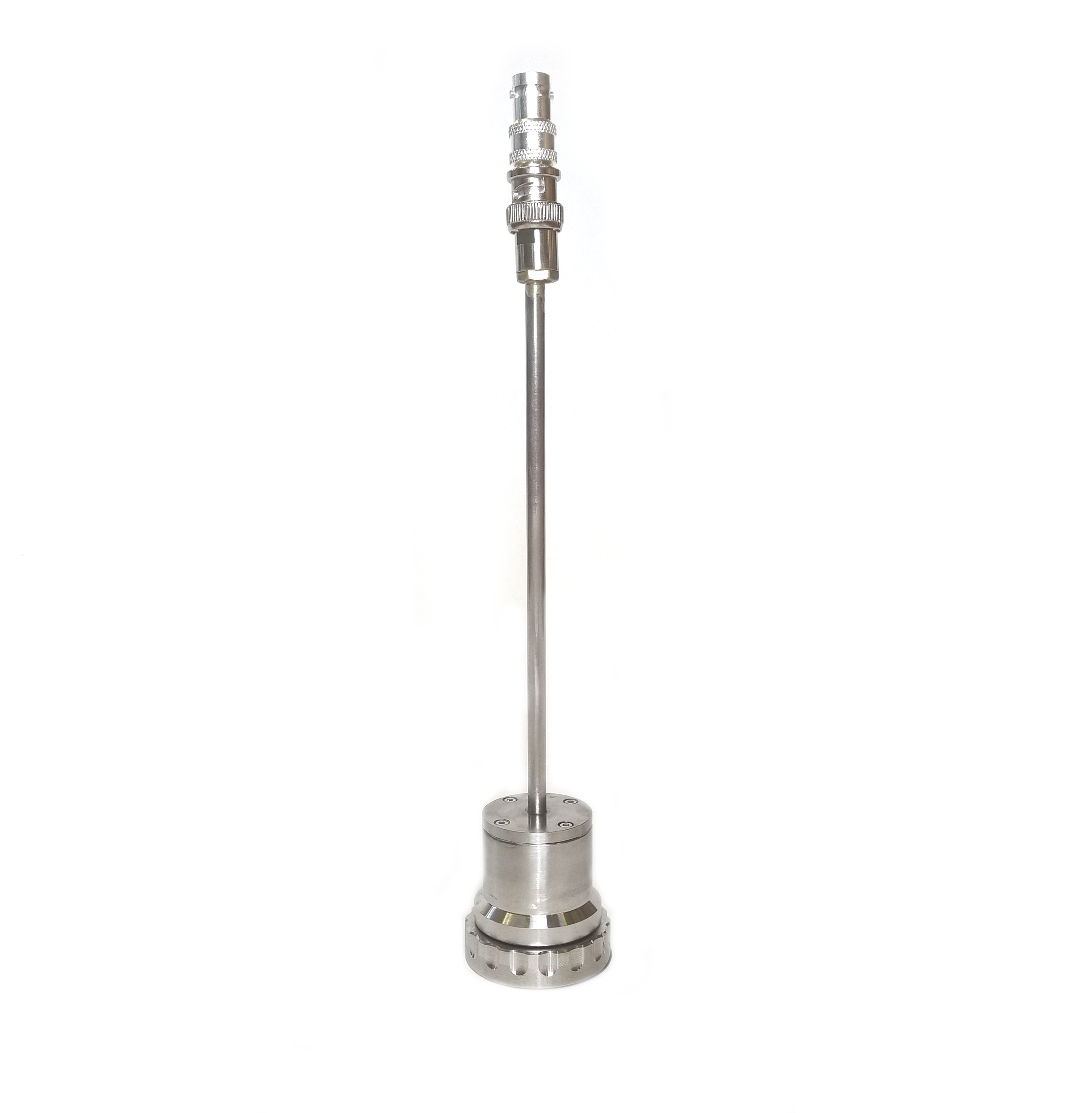

| Dimensions | Length: cable 230mm, body 40mm. Max. diameter 40mm |
| Operating Temperature | 0 - 550 °C |
| Working Voltage | 300 - 1000V pulse |
| Excitation Frequency | Broadband (spike) optimised for peak energy around 3-5 MHz |

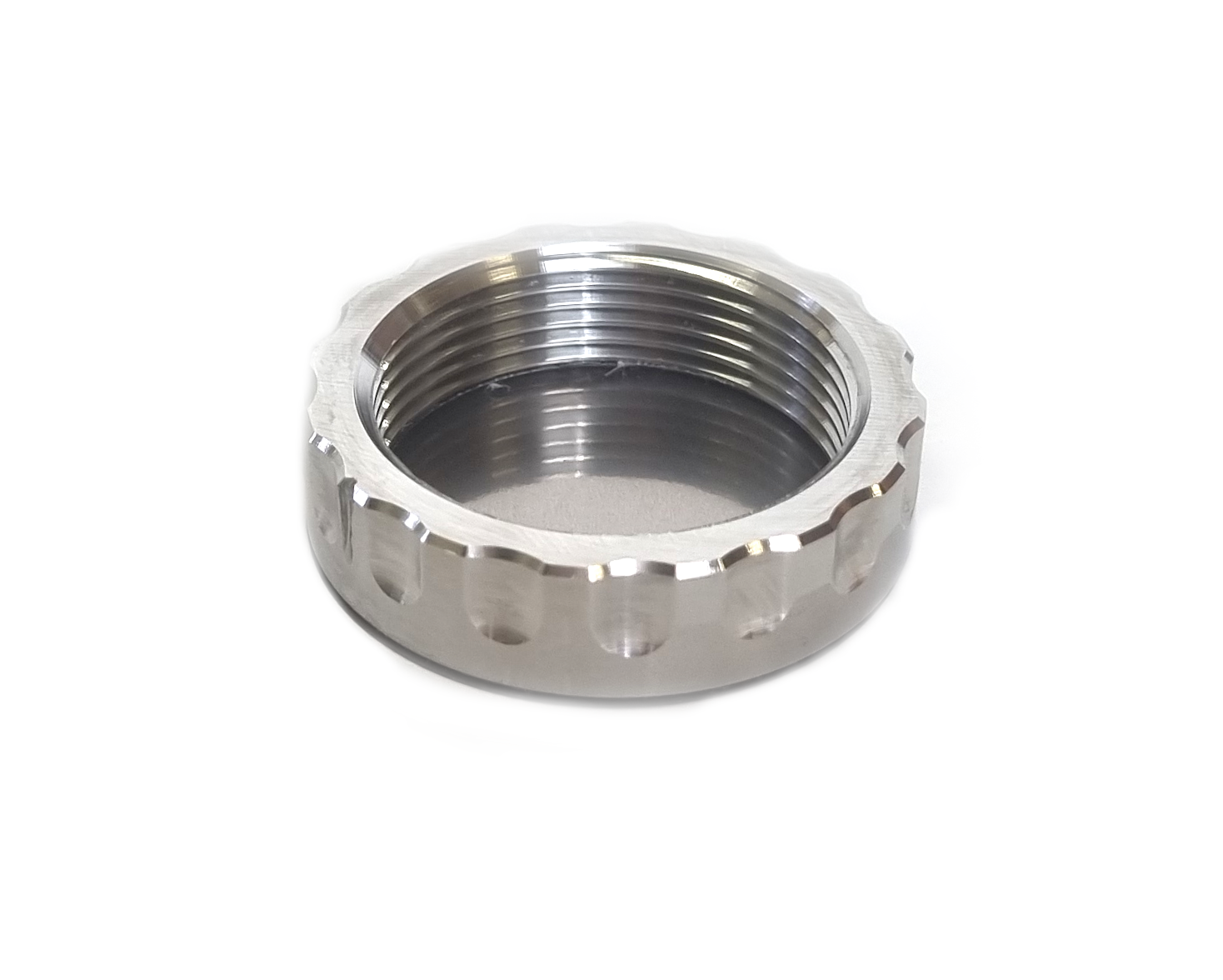

| Wear Face | Optional detachable front west face via screw thread which can be replaced on request if worn, see below |
| Connections | BNC socket (50Ω) |
| Magnet | Field normal to sample |
| Recommended Electronics | Sonemat’s GS2020, PR5000 or PR5020 - contact us for more information |
| Options | High temperature coaxial cable length or connector; contact us |
High Temperature EMAT – 200°C
The HWS2225-HT High Temperature EMAT is a robust shear wave transducer designed for pulse-echo inspections on conductive and magnetic components up to 200°C. Featuring a radially polarised design with a 3-5 MHz broadband frequency range, this EMAT operates without active cooling and provides consistent, non-contact performance, making it ideal for thickness gauging, flaw detection, and material analysis in industrial settings. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, it is an essential tool for high-temperature NDT applications.
Water-cooled EMAT – 1000°C
The HWS2235-WCT is a high-temperature, water-cooled shear wave EMAT engineered for non-destructive testing on components reaching up to 1000°C. Featuring water-cooling to maintain optimal signal, this radially polarised EMAT is ideal for applications requiring pulse-echo testing on hot metallic and magnetic surfaces. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, the HWS2235-WCT is a reliable solution for precise, high-temperature inspections across energy, petrochemical, and industrial sectors.
Internal Pipe EMAT
The HWS3325-CF Internal Pipe Shear Wave EMAT is a precision-engineered, non-contact probe designed for internal pipe surface inspections. Featuring a curved front face tailored for optimal contact within pipes, this radially polarised EMAT operates at 3-5 MHz, making it ideal for high-sensitivity, pulse-echo testing applications. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, the HWS3325-CF is built to deliver accurate thickness gauging, flaw detection, and corrosion monitoring in pipelines and industrial vessels.
