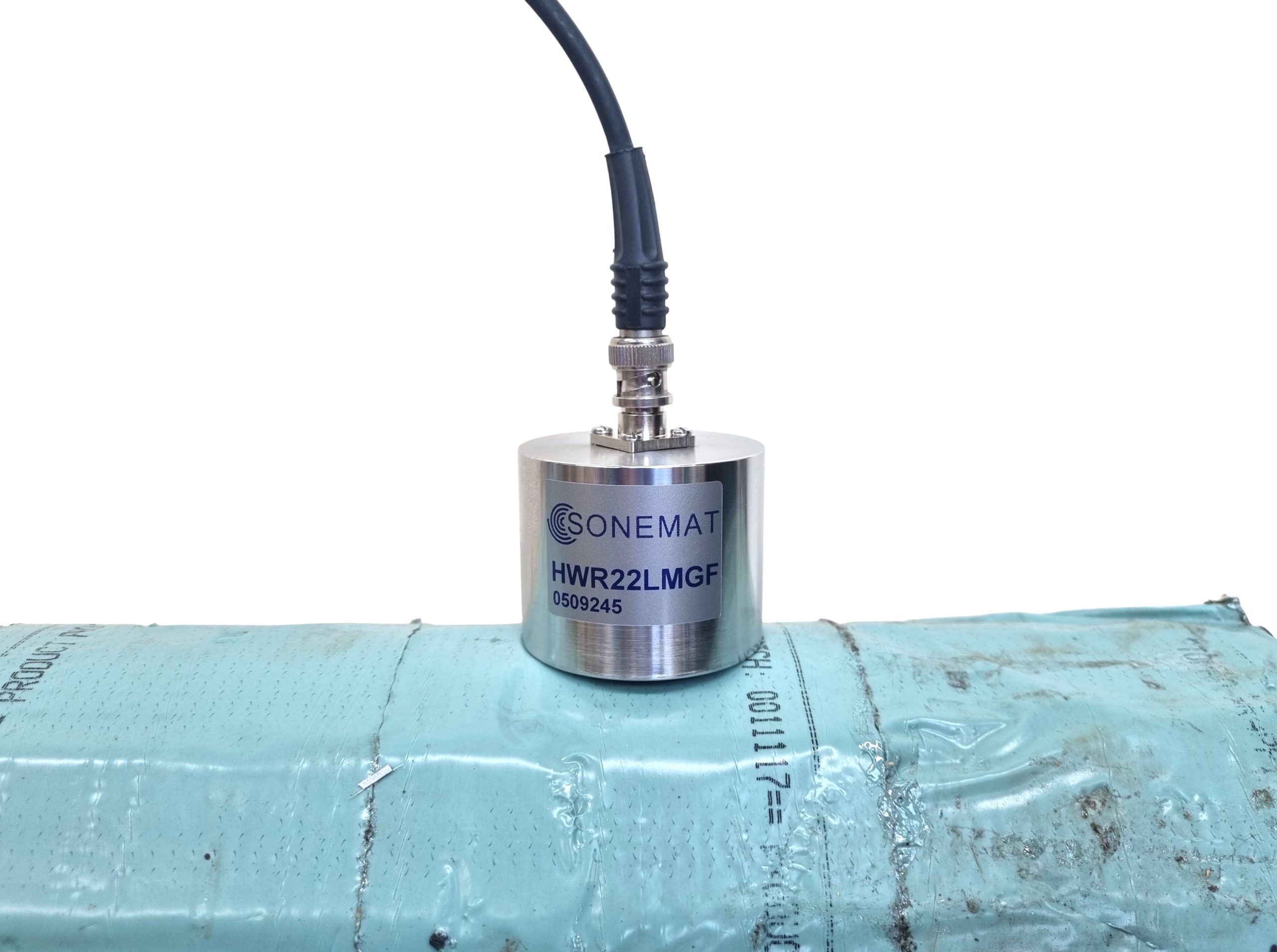

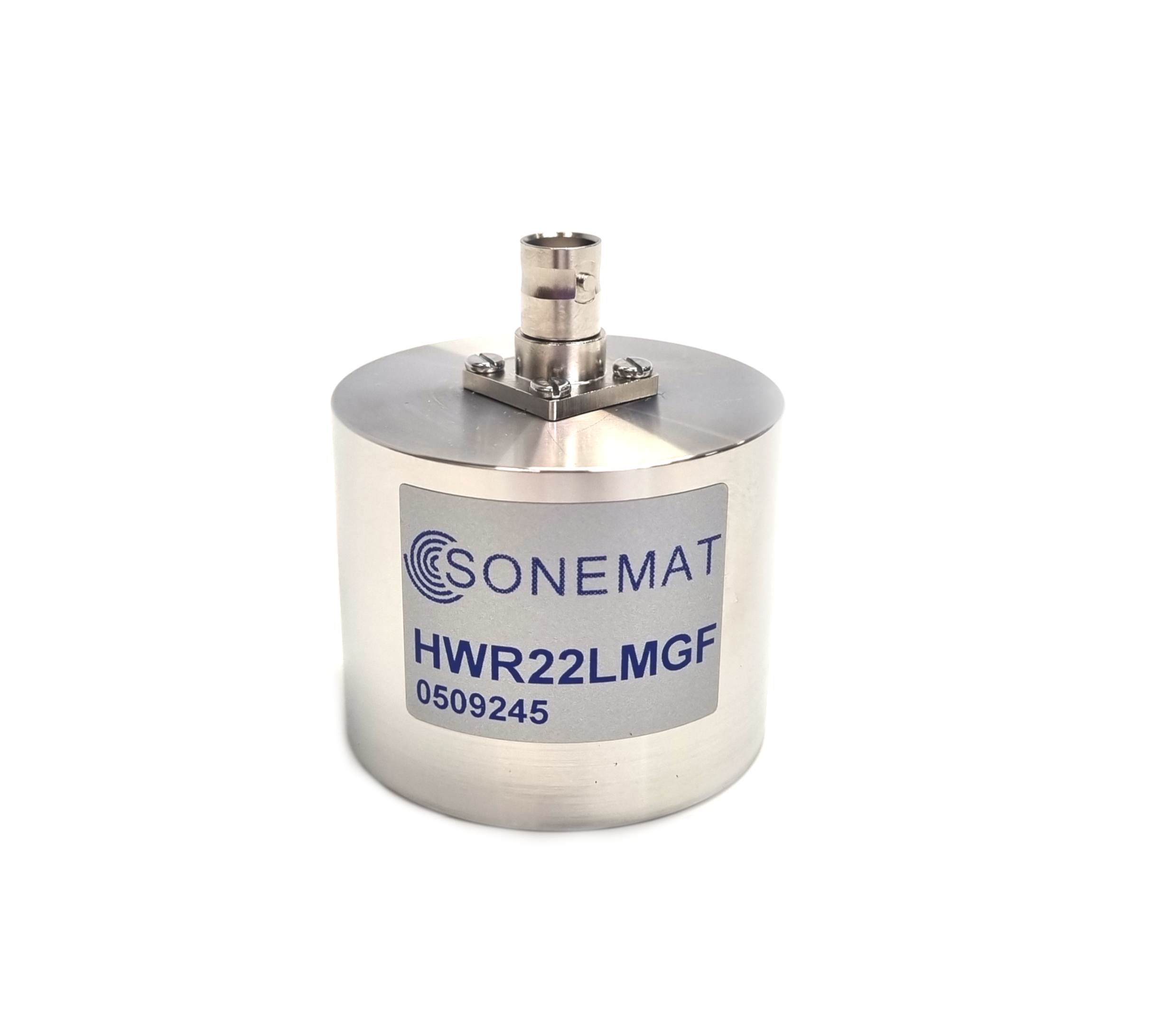

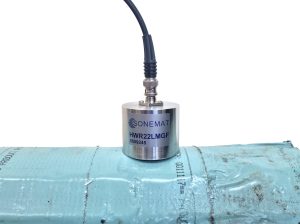

High Power EMAT
£1200
Key Advantages and Features:
-
- High Power Magnetic Configuration: Generates a strong magnetic field for reliable signal strength at up to 5mm lift-off, ideal for scanning and high-lift applications.
- Broad Frequency Response: Operates at 3-5 MHz, providing clear, precise shear wave signals for enhanced material characterization and flaw detection.
- Non-Contact and Couplant-Free: Ensures clean and efficient inspections without couplants, performing well on rough or irregular surfaces.
- Robust Industrial Compatibility: Designed for seamless integration with Sonemat’s GS2020, PR5000, and PR5020 electronics, the HWR22LMGF supports both pulse-echo and pitch-catch configurations.
Applications:
-
- Thickness gauging and flaw detection in pipelines, tanks, and vessels
- Corrosion and defect monitoring in boiler tubes and industrial components
- Acoustic birefringence and crystallographic texture assessment in critical infrastructure
- Non-contact scanning in high-lift and attenuative material environments
| Probe Configuration | Pulse-Echo, can be used in pitch-catch with two probes |
| Polarisation Direction | Labelled with a sticker at the top of the probe |
| EMAT Working Principle | Lorentz force mechanism - magnetostrictive effect (if sample is magnetostrictive) |
| Weight | 0.45kg |
| Dimensions | 44mm length x 54mm diameter, width with BNC socket 63mm |
| Operating Temperature | 0 - 80 °C |
| Working Voltage | 300 - 1000V pulse |
| Excitation Frequency | Broadband (spike) optimised for peak energy around 3-5 MHz |

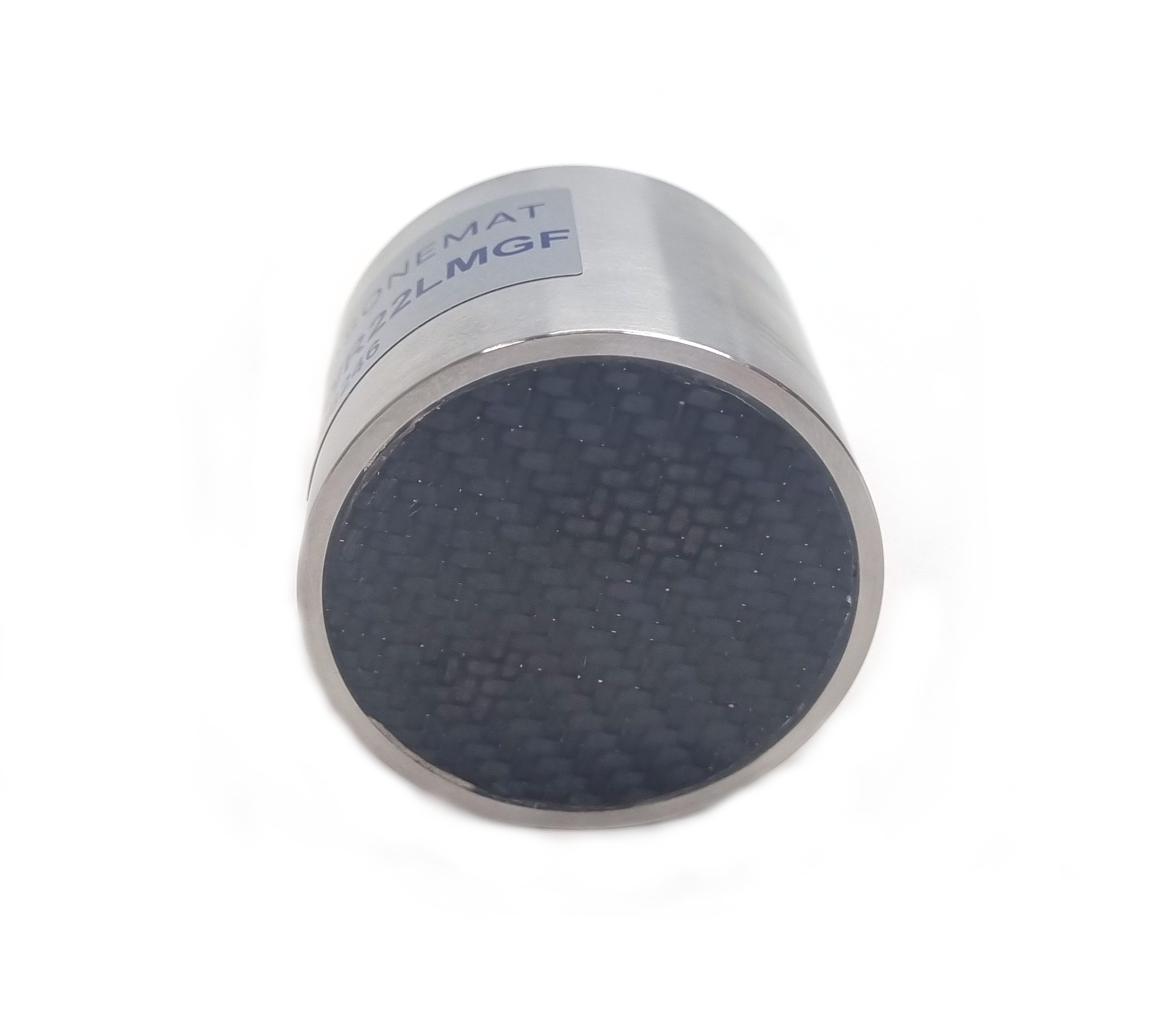

| Wear Face | Composite (as standard, alumina ceramic can be used) |
| Connections | BNC socket (50Ω) |
| Magnet Type | Unique magnet arrangement |
| Options | Contact us for more information |

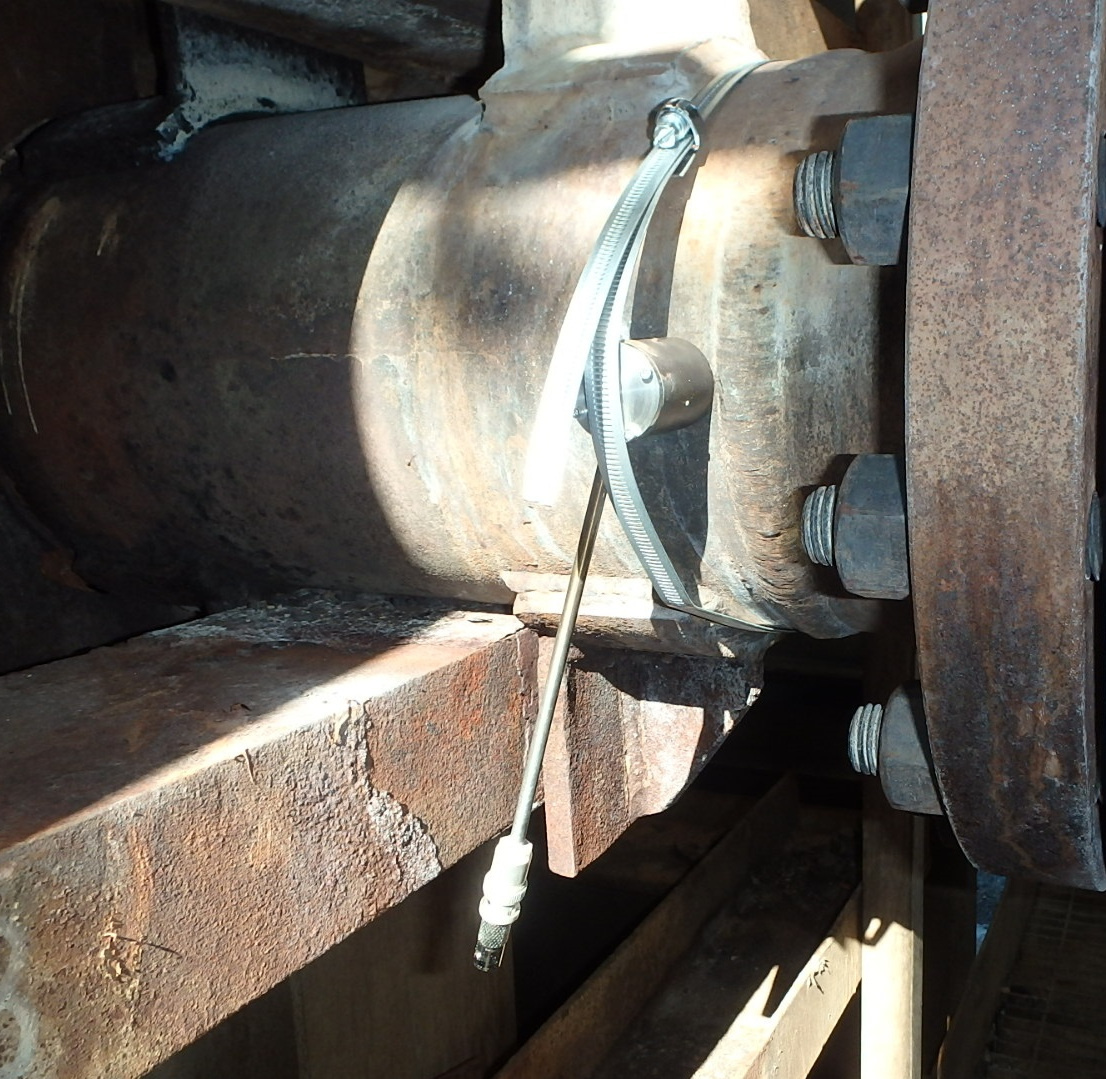

High Temperature EMAT – 550°C
The HWS2220-VC High Temperature EMAT is designed for non-contact shear wave inspections on components up to 550°C without cooling. Utilising a magnetostrictive mechanism, this EMAT generates radially polarised bulk shear waves with robust signal strength on magnetic and magnetostrictive materials, making it ideal for applications in extreme environments such as energy generation, petrochemical, and oil and gas. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, it is optimised for thickness gauging, flaw detection, and material analysis.

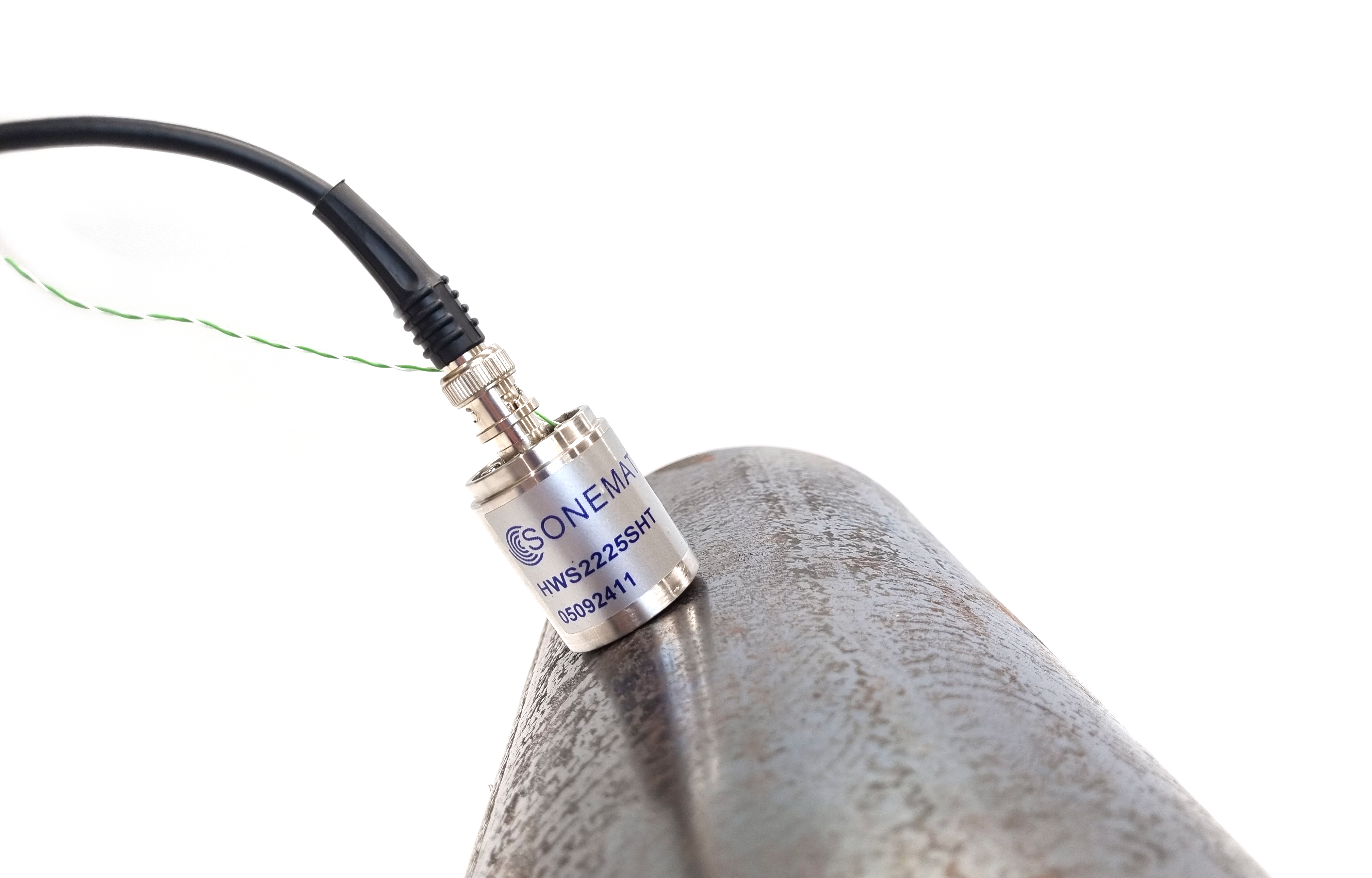

High Temperature EMAT – 200°C
The HWS2225-HT High Temperature EMAT is a robust shear wave transducer designed for pulse-echo inspections on conductive and magnetic components up to 200°C. Featuring a radially polarised design with a 3-5 MHz broadband frequency range, this EMAT operates without active cooling and provides consistent, non-contact performance, making it ideal for thickness gauging, flaw detection, and material analysis in industrial settings. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, it is an essential tool for high-temperature NDT applications.

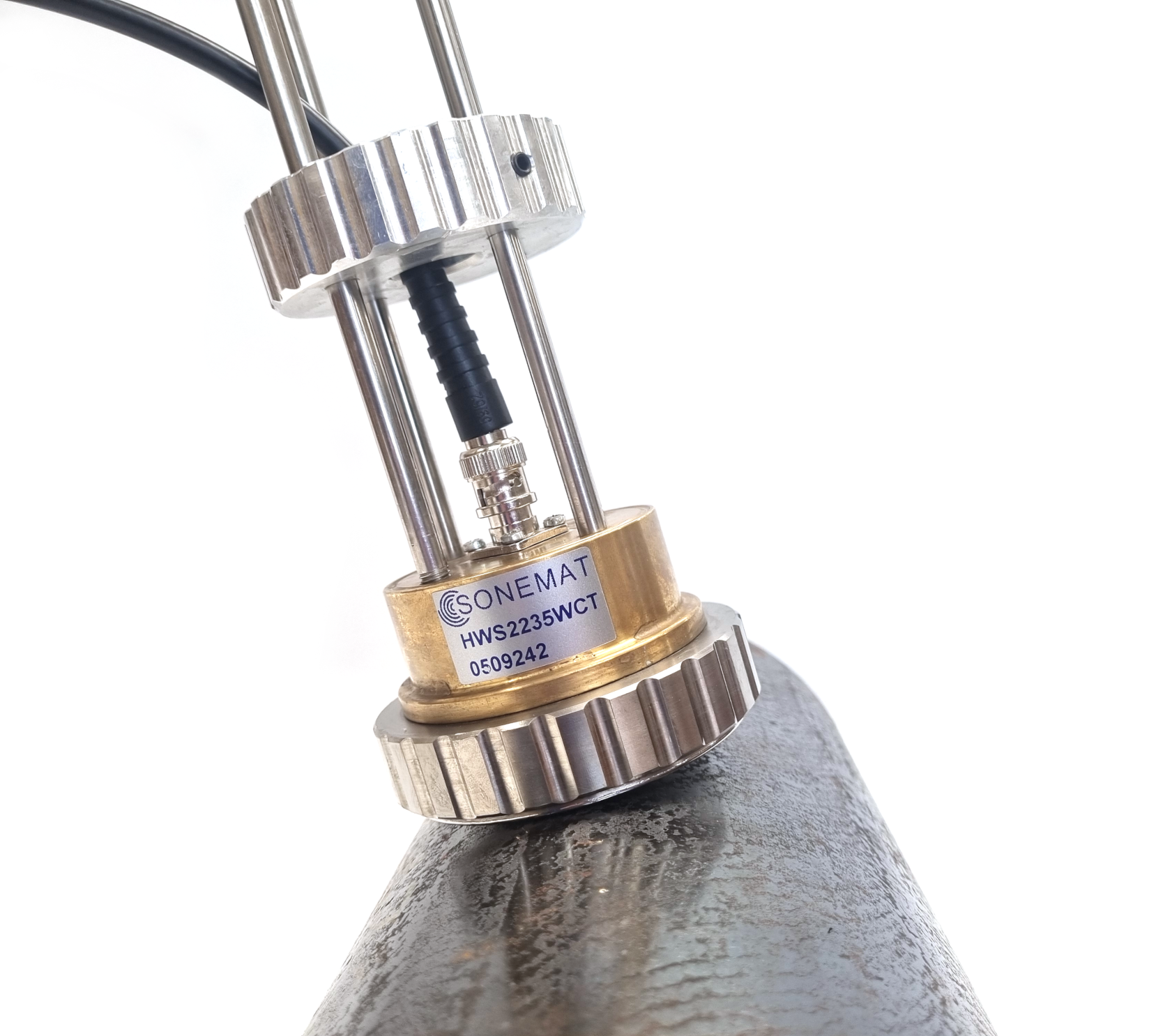

Water-cooled EMAT – 1000°C
The HWS2235-WCT is a high-temperature, water-cooled shear wave EMAT engineered for non-destructive testing on components reaching up to 1000°C. Featuring water-cooling to maintain optimal signal, this radially polarised EMAT is ideal for applications requiring pulse-echo testing on hot metallic and magnetic surfaces. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, the HWS2235-WCT is a reliable solution for precise, high-temperature inspections across energy, petrochemical, and industrial sectors.
Standard delivery via DHL courier. Custom delivery options available upon request.
