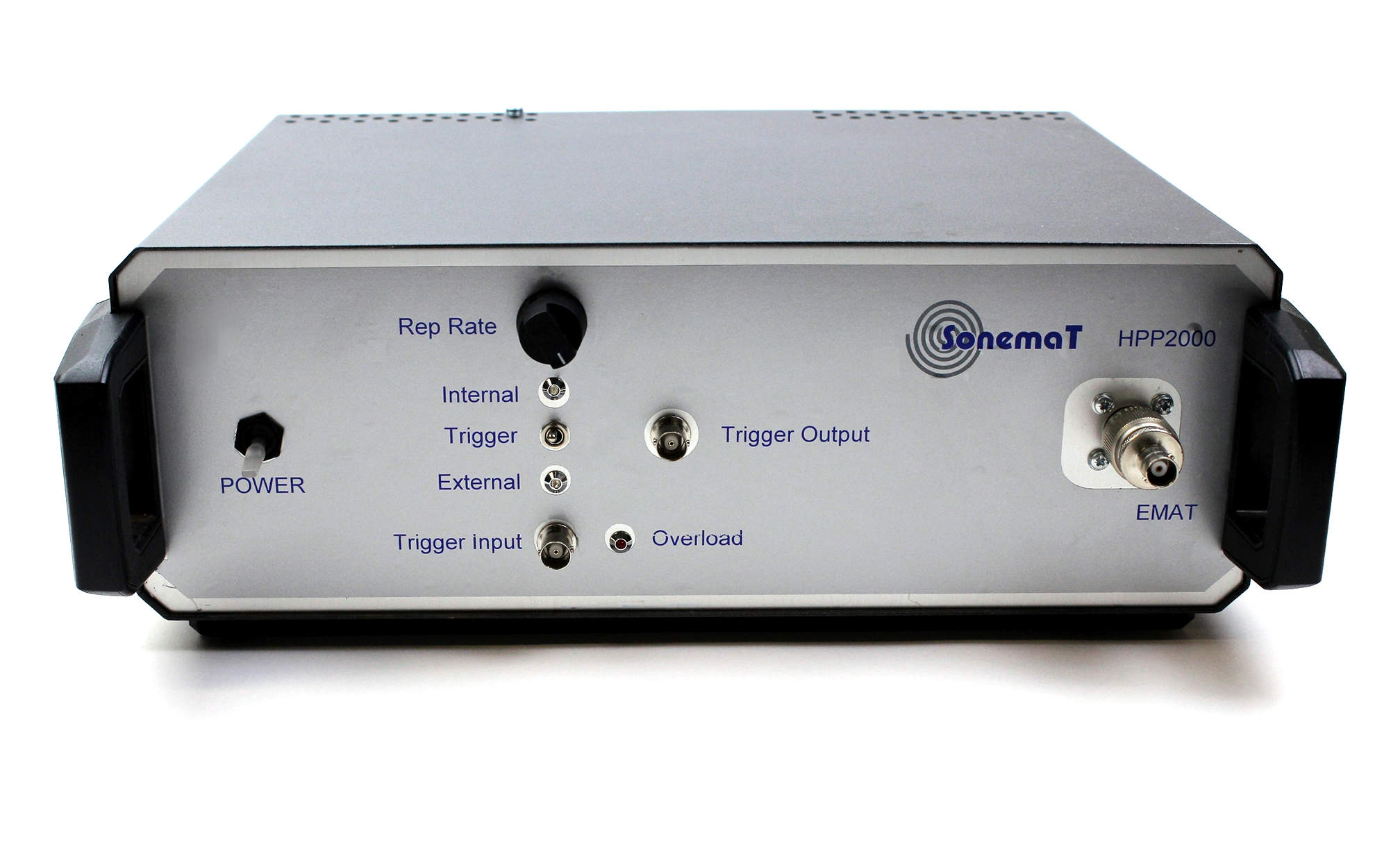

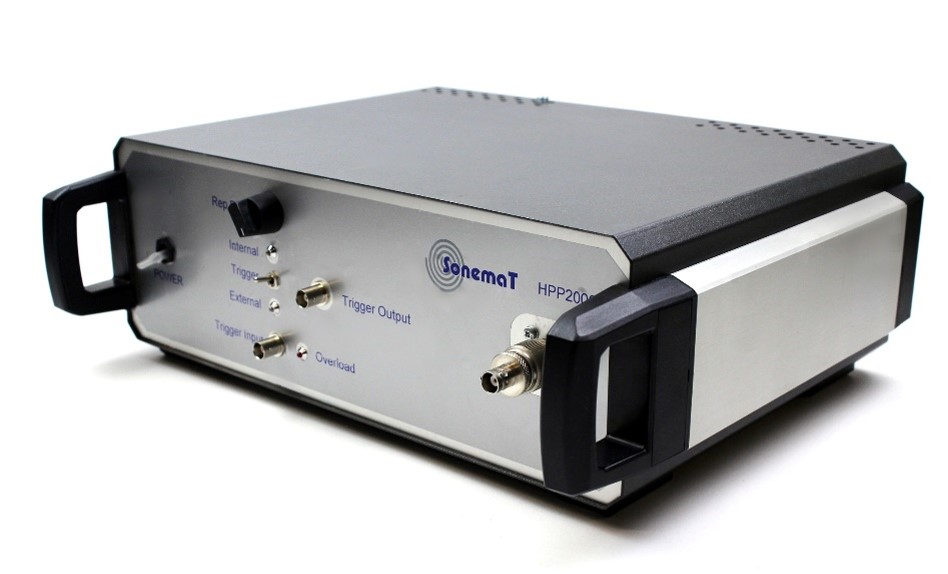

High Power Pulser HPP2000
The HPP2000 High Power Pulser is a robust, broadband pulser designed for precise EMAT-guided wave applications. Delivering high-power pulses with short-time resolution, the HPP2000 is ideal for generating Lamb, Rayleigh, and Shear Horizontal (SH) waves for extended-range inspections in fields like energy, rail, and oil and gas. This pulser pairs seamlessly with the SAA1000 amplifier for a complete EMAT solution, enabling accurate, non-destructive testing across challenging environments.
£5500
The HPP2000 High Power Pulser by Sonemat is engineered for high-power, broadband EMAT pulsing in non-destructive testing (NDT) applications. Built to meet the needs of industrial inspection and research, this pulser generates a short-time resolution pulse with frequency content primarily below 1 MHz, providing clarity and range for detecting flaws and assessing materials in pipelines, storage tanks, and rail systems. Paired with Sonemat’s SAA1000 amplifier, the HPP2000 offers a powerful, integrated solution for extended-range, non-contact inspections.
Key Advantages and Features:
-
- Broadband, High-Resolution Pulsing: The HPP2000 generates high-power pulses with a broadband frequency range up to 1 MHz, enabling precise EMAT-guided wave generation for in-depth material analysis.
- Compatible with Guided Wave Probes: Optimized for Lamb, Rayleigh, and SH wave modes, this pulser provides greater inspection coverage, allowing inspection in hidden or hard-to-reach areas.
- Flexible Control Options: With internal and external triggering and a dial-controlled pulse repetition rate (1-30 Hz), it offers the flexibility to adapt to specific testing requirements and conditions.
- Industrial-Grade Build: Designed for use with UK/Europe/China mains power, the HPP2000 is suitable for both laboratory and light industrial environments, delivering durability and reliable performance.
Applications:
-
- Non-contact flaw detection in pipelines, tanks, and vessels
- Corrosion and weld defect monitoring in challenging structures
- Stress inspection for rail tracks and wheels
- Comprehensive inspection coverage for boilers and high-stress industrial components
| Pulse Frequency/Bandwidth | Broadband pulse with short time resolution (approx. 1 cycle), frequency content between 0 - 1MHz |
| Pulse Repetition Rate | Controlled by dial, between 1 - 30Hz |
| Trigger | External or Internal Trigger |
| Dimensions | 380 x 310 x 140mm (L x W x D) approx. |
| Weight | 5.2kg |
| Storage temp. | -10°C TO +60°C |
| Operating temp. | 0°C TO +40°C |
| Power | 220-250V, 50Hz AC - UK/Europe/China Mains Power Supply |
| Connections | 1 x BNC coaxial connector |
| Compatibility | Generally for use with Sonemat’s guided wave EMATs - careful of EMAT coil wire width, if too narrow coils can be damaged due to high power |

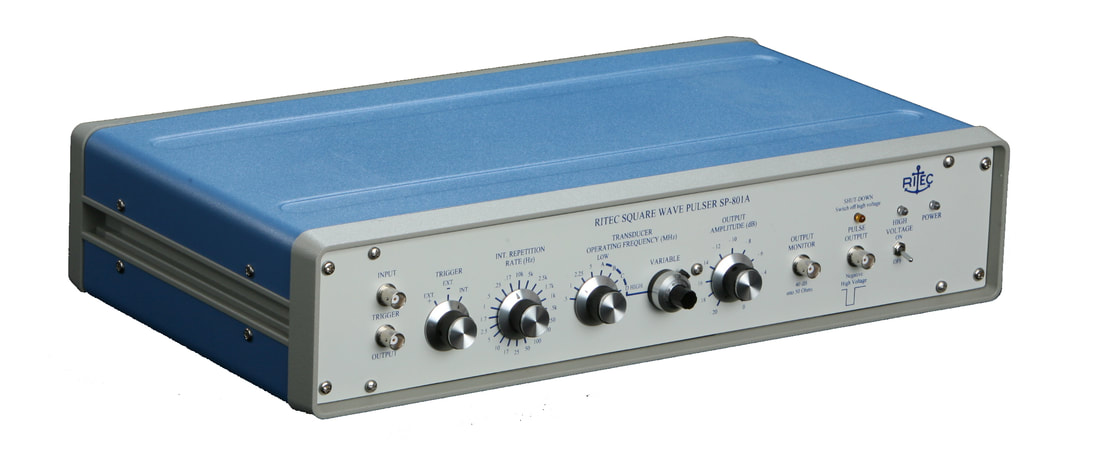

Square Wave Pulser SP-801A
Distributed by Sonemat for RITEC Inc., the SP-801A is a high-power, low-impedance square wave pulser designed for demanding ultrasonic applications. Delivering up to -400 V pulses, with rapid rise and fall times and a configurable pulse width, the SP-801A is ideal for precise material evaluations, high-power ultrasonic inspections, and laboratory research. It offers both internal and external triggering options, making it versatile for a variety of testing setups.
