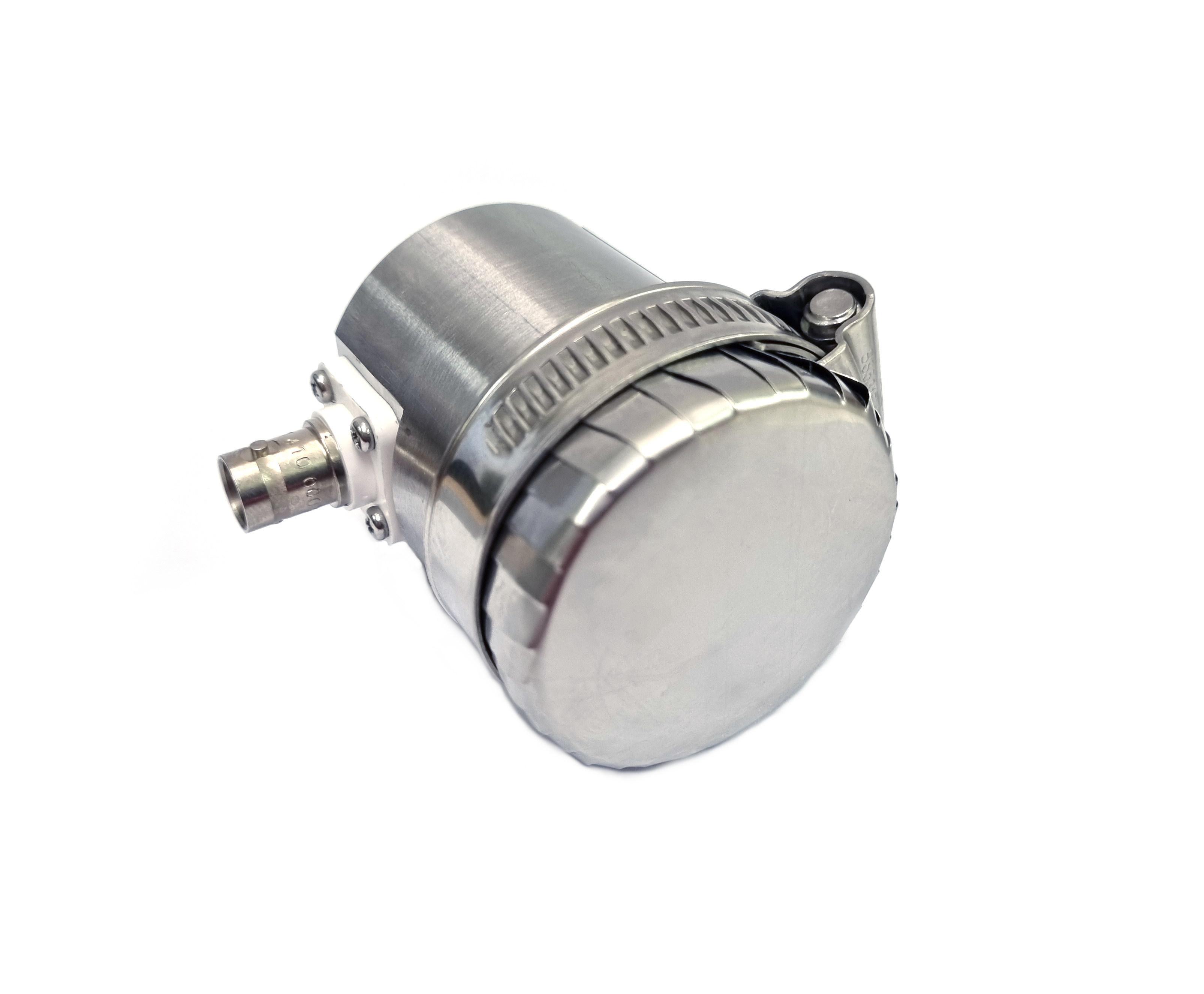

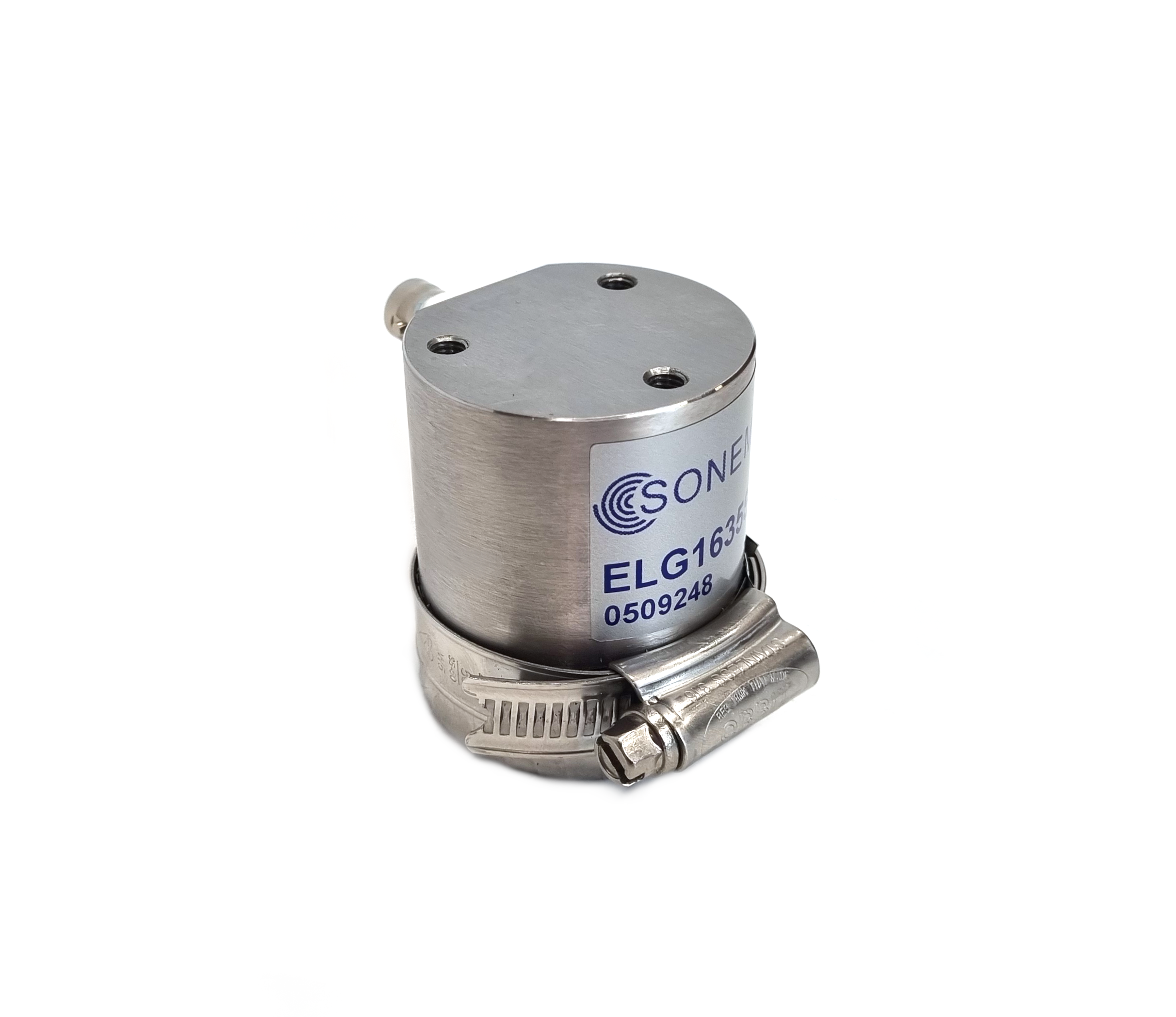

Lamb Wave EMAT
£950
Key Advantages and Features:
-
- Efficient Lamb Wave Propagation: Designed for optimal wave-guiding along thin metallic plates, allowing precise, long-range inspections at approximately 188 kHz with a standard 16 mm wavelength.
- Non-Contact Operation: Operates without couplants, leveraging Lorentz forces to generate Lamb waves, making it ideal for rough or hard-to-access surfaces.
- Industrial Durability: Built with a metal wear face and a Neodymium Iron Boride magnet, the ELG1635-S and ELD1635-S withstand challenging environments and provide consistent performance.
- Broad Compatibility: Seamlessly integrates with Sonemat’s TBPR1000, HPP2000, and SAA1000 systems, supporting pitch-catch and pulse-echo configurations for versatile industrial applications.
Applications:
-

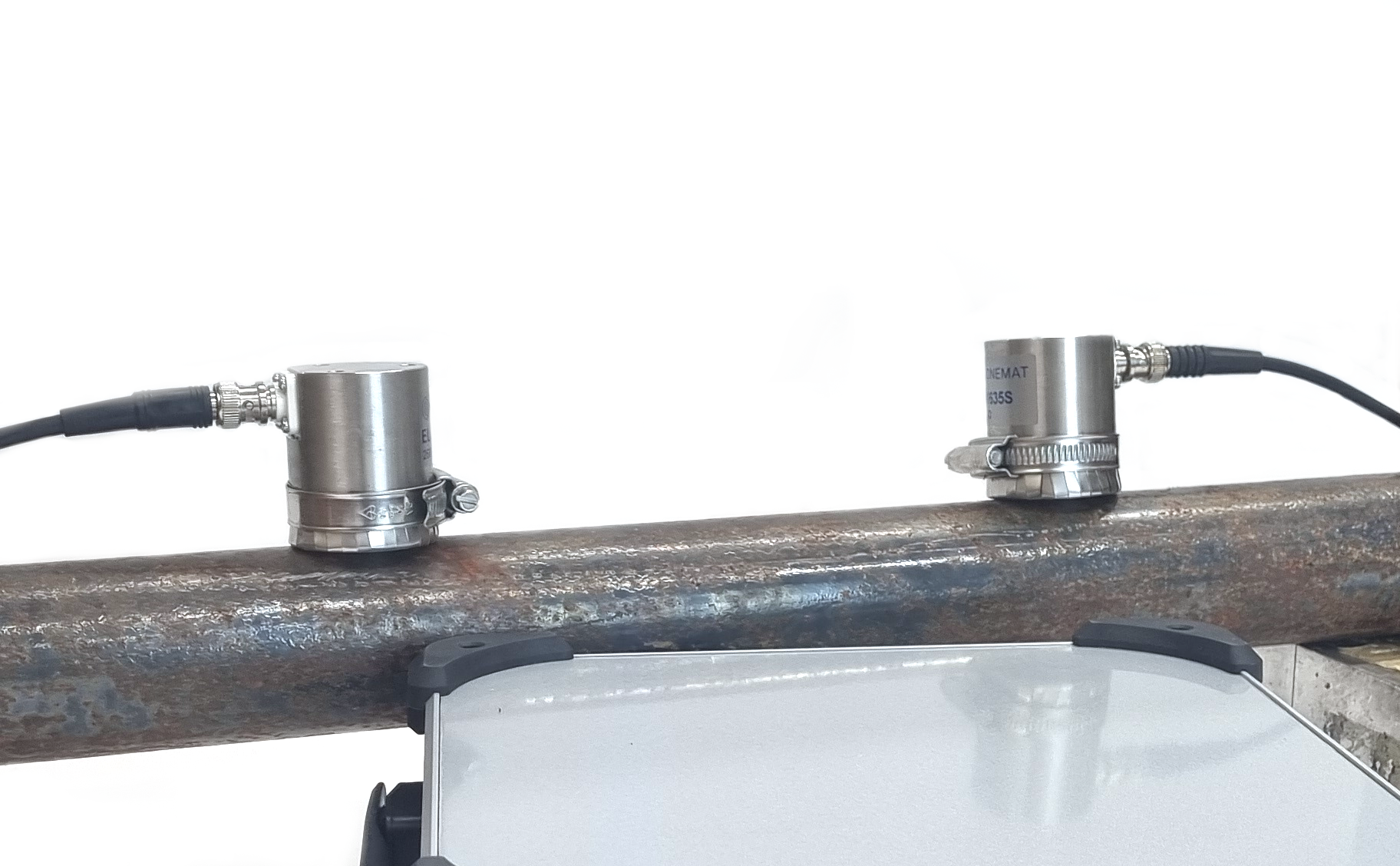

- Thickness and corrosion monitoring in metallic pipelines and tank walls
- Long-range defect detection in structural metals, including welds
- Non-contact inspection in confined or difficult-to-reach areas
- Aerospace, oil and gas, and energy sectors requiring preventive maintenance
| Probe Configuration | Pitch-Catch (generator or detector). Can also operate in Pulse-Echo mode. |
| EMAT Working Principle | Lorentz force mechanism Magnetostrictive effect (if sample is magnetostrictive) |
| Ultrasonic Wave Type | Lamb (can also generate and detect Rayleigh waves under correct conditions) |
| Excitation Frequency | Optimised for spatial wavelength 16 mm (approx. 188 kHz on thin steel). A wide range of other wavelengths (including custom builds) are available, please enquire. |
| Working Voltage | 800 - 1000 V |
| Dimensions | 55mm length x 45mm diameter, width with BNC socket 60mm |
| Weight | 0.6kg |
| Mounting | 3 x M5 threaded mounting holes on top of EMAT |
| Magnet Type | Single Neodymium Iron Boride (NIB) magnet; working field normal to sample. |
| Front Wear Face | Metal as standard, can be customised |
| Connector | BNC socket (50Ω) |
| Operating Temperature | 0 - 80°C |
| Recommended Electronics (Driver and Amplifier) | Sonemat's Toneburst Pulser-Receiver TBPR1000, HPP2000 High Power Pulser, Sonemat SAA1000 standalone Amplifier ; or RITEC’s RPR4000 High power Pulser-Receiver - contact us |
High Temperature EMAT – 550°C
The HWS2220-VC High Temperature EMAT is designed for non-contact shear wave inspections on components up to 550°C without cooling. Utilising a magnetostrictive mechanism, this EMAT generates radially polarised bulk shear waves with robust signal strength on magnetic and magnetostrictive materials, making it ideal for applications in extreme environments such as energy generation, petrochemical, and oil and gas. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, it is optimised for thickness gauging, flaw detection, and material analysis.
High Temperature EMAT – 200°C
The HWS2225-HT High Temperature EMAT is a robust shear wave transducer designed for pulse-echo inspections on conductive and magnetic components up to 200°C. Featuring a radially polarised design with a 3-5 MHz broadband frequency range, this EMAT operates without active cooling and provides consistent, non-contact performance, making it ideal for thickness gauging, flaw detection, and material analysis in industrial settings. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, it is an essential tool for high-temperature NDT applications.
Water-cooled EMAT – 1000°C
The HWS2235-WCT is a high-temperature, water-cooled shear wave EMAT engineered for non-destructive testing on components reaching up to 1000°C. Featuring water-cooling to maintain optimal signal, this radially polarised EMAT is ideal for applications requiring pulse-echo testing on hot metallic and magnetic surfaces. Compatible with Sonemat’s GS2020, PR5000, and PR5020 systems, the HWS2235-WCT is a reliable solution for precise, high-temperature inspections across energy, petrochemical, and industrial sectors.
Standard delivery via DHL courier. Custom delivery options available upon request.
